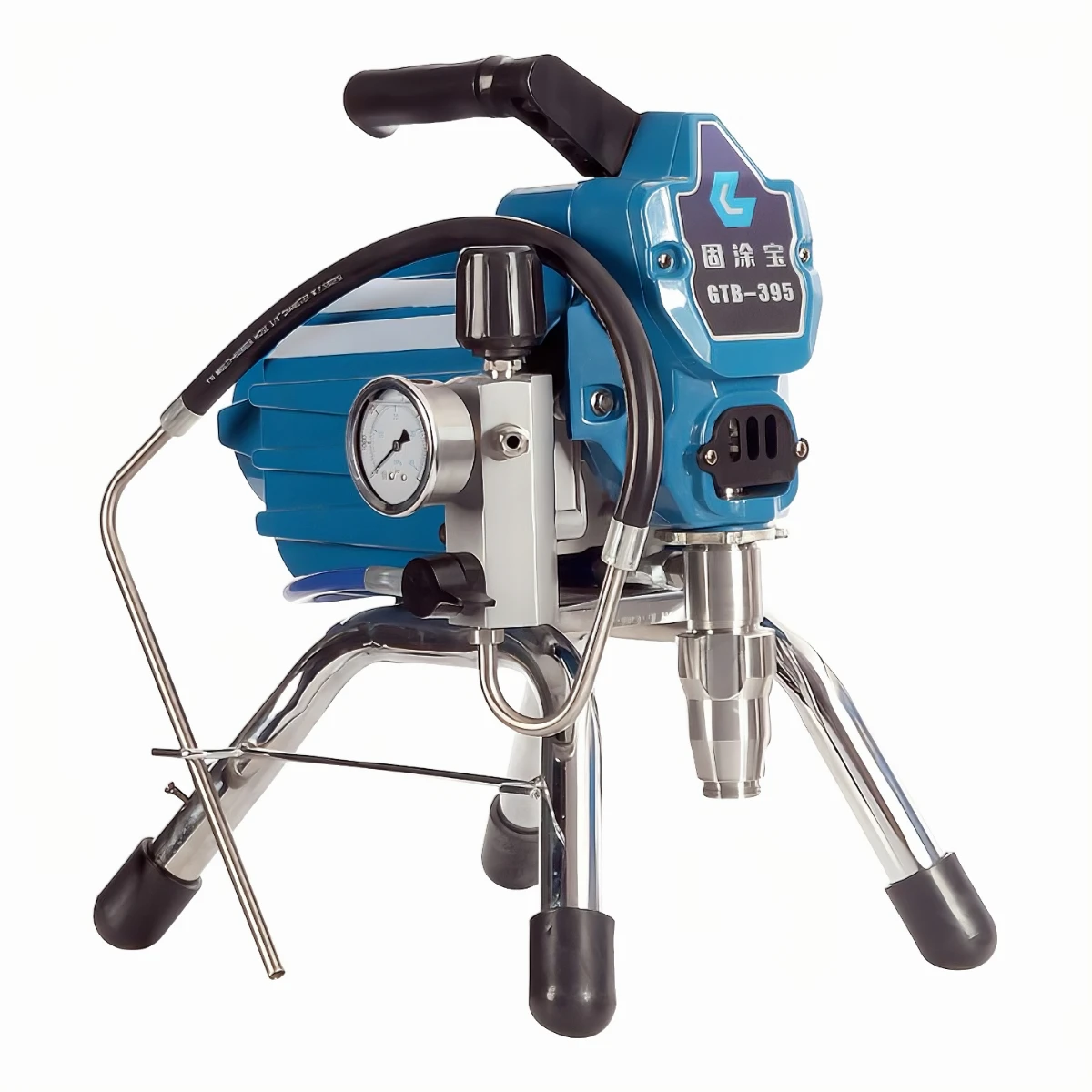

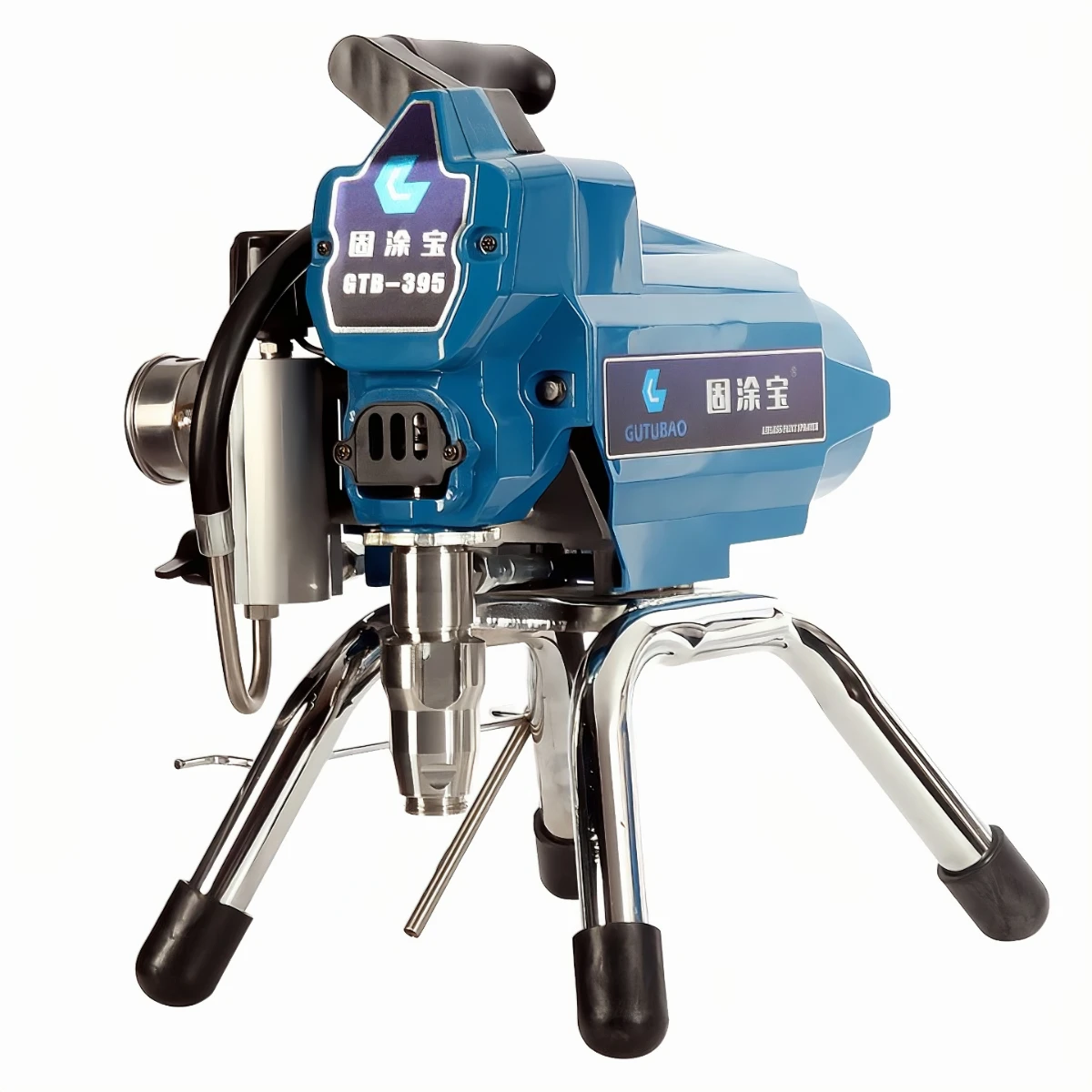

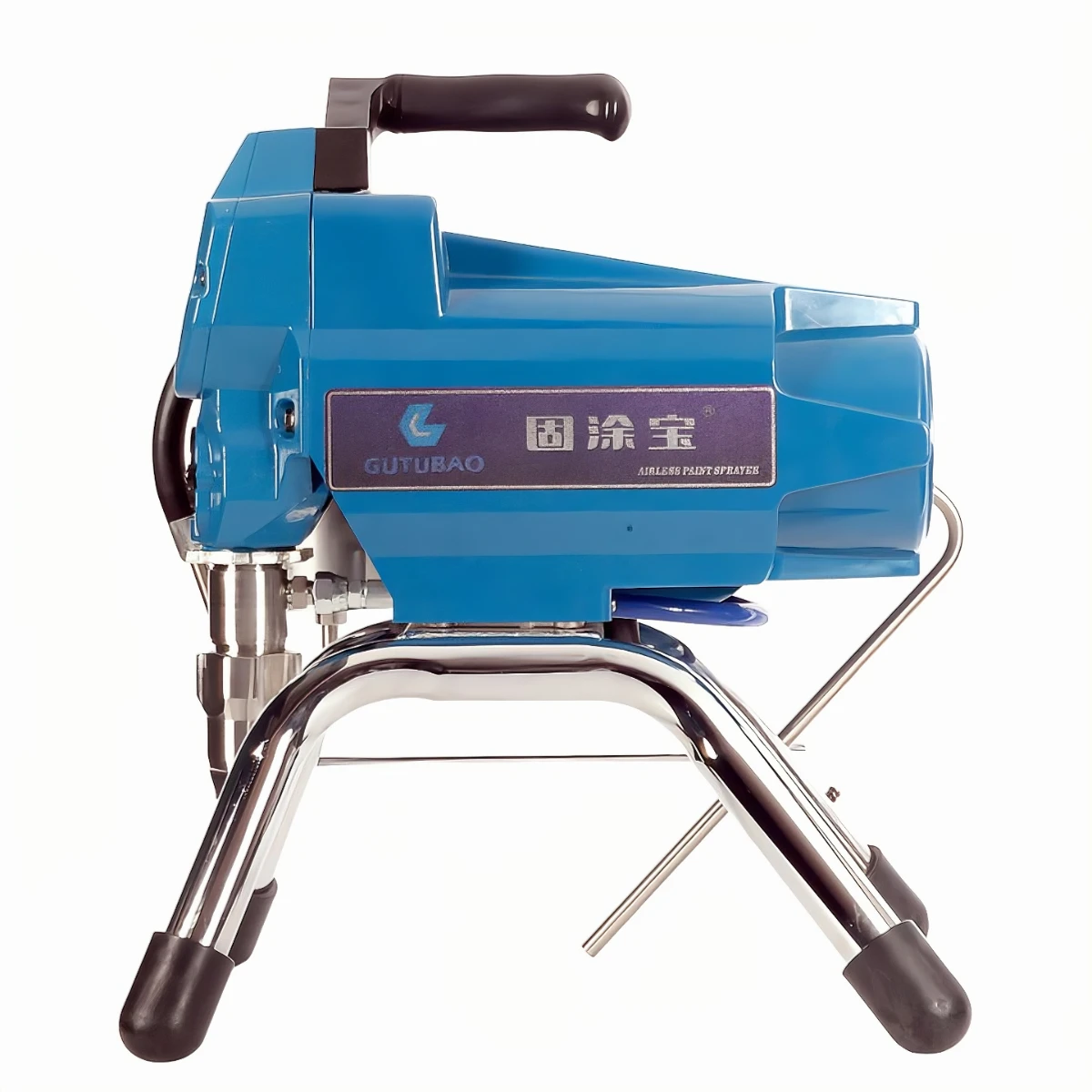

GTB-395 Airless Paint Sprayer
GTB-395 Electric Airless Paint Sprayer: 1000W Brushed DC Motor
- High-power motor for wall coating work.
- Extra-high flow rate for large-area work.
- Fine, even spray finish on walls and ceilings.
- Sprays latex paint, general coatings and paints.
GTB-395 is an airless paint sprayer for water-based architectural coatings: latex, acrylic wall paints, water-based enamels, primers and sealers. A 1000 W brushed DC motor drives a piston-type fluid section rated at 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure. Two pump versions are sold, stainless steel or dual-ceramic, with identical ratings. The sprayer ships complete with gun, hose, tip and suction hose assembly.
Manufacturer Since 2010
In-House Pump-Body Machining with Brother & Haas CNCs
100% Inspection & Two-Stage Testing
NDA-Backed OEM/ODM Support
Core Airless Sprayer Technology
1000W Brushed DC Motor, 2.0 L/min, 3,300 PSI Max. Working Pressure
GTB-395 combines a 1000W brushed DC motor with a piston-type fluid section, offered as a Stainless Steel Version or a Dual-Ceramic Version. Maximum flow rate is 2.0 L/min. On latex paint, acrylic wall paints and water-based primers it produces a fine, even spray finish.
Stainless Steel or Dual-Ceramic Pump
Two pump versions, 2.0 L/minOffered in two versions: a Stainless Steel Version with stainless steel rod and stainless steel cylinder liner, or a Dual-Ceramic Version with ceramic-coated rod and ceramic-lined cylinder sleeve (stainless shell, ceramic bore). Maximum flow rate is 2.0 L/min with a 0.019 in maximum tip; both versions carry the same ratings.
Brushed DC Motor
1000 W brushed DC motorDriven by a 1000W brushed DC motor: high-power motor, extra-high flow rate of 2.0 L/min. Motors and control PCBs are made in-house; every PCB runs a 4-hour powered burn-in before assembly, and every finished sprayer runs a 30-minute continuous high-pressure load test.

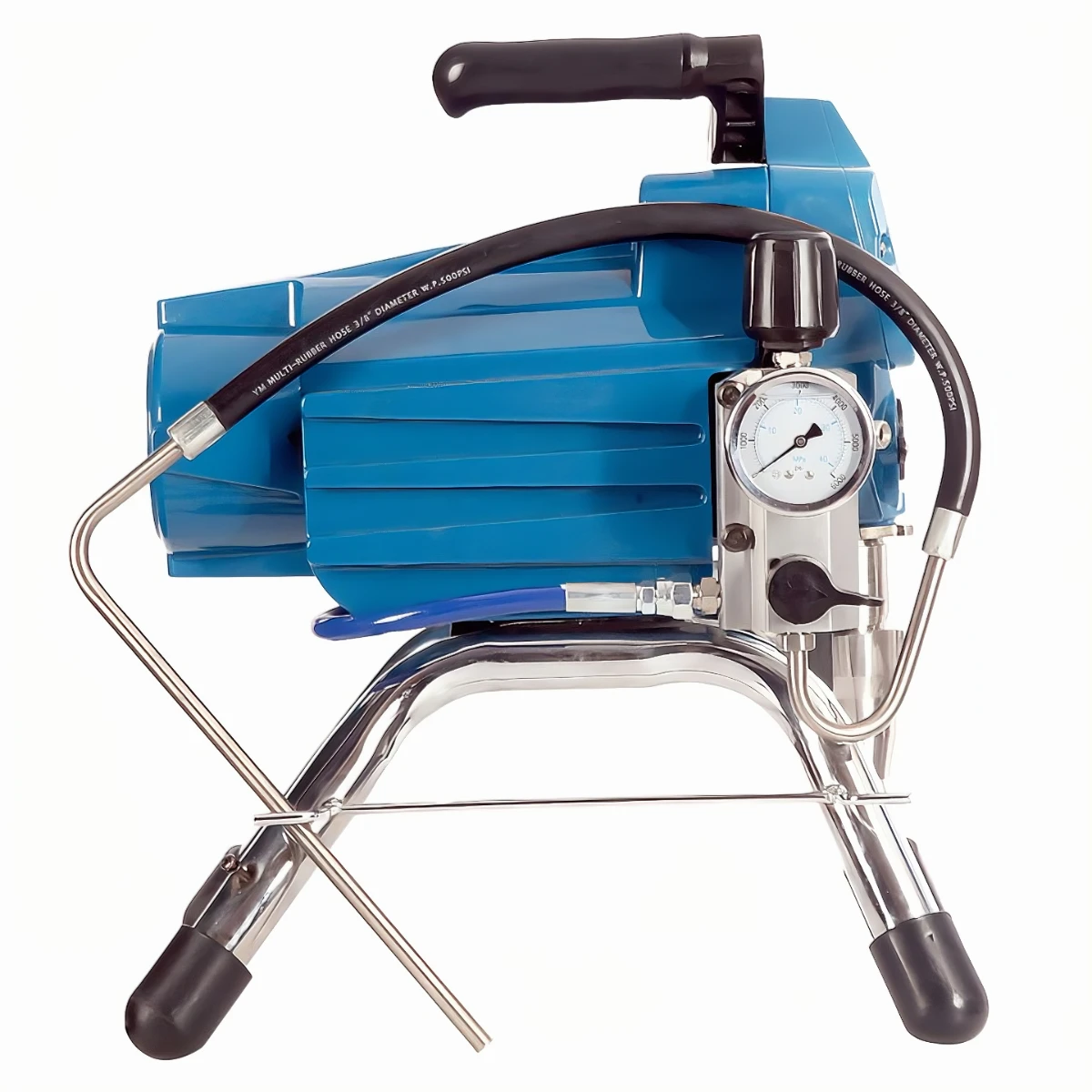

Electronic Pressure Control
3,300 PSI, 0.019 in tipMax. Working Pressure is 3,300 PSI (227 bar / 22.7 MPa); maximum spray tip size is 0.019″. GTB-395 uses electronic pressure control, and pressure is read on the pressure gauge.
Material Compatibility of this GTB-395 airless paint sprayer
Whether a coating can be sprayed depends on the spray tip orifice size, flow rate and pressure, together with the viscosity of the coating. Rated values for this sprayer: maximum spray tip size 0.019″, maximum flow rate 2.0 L/min, Max. Working Pressure 3,300 PSI (227 bar / 22.7 MPa). For any specific coating, follow the coating manufacturer’s technical data sheet (TDS).
Supported Materials
✅ Interior / exterior latex paint (flat / eggshell / satin / semi-gloss)
✅ Acrylic wall paint / emulsion
✅ Water-based enamel
✅ Waterborne wood stain (solid & semi-transparent)
✅ Water-based clear coat / sealer / topcoat
✅ Water-based primer & PVA drywall sealer
✅ Acrylic / waterborne lacquer
✅ Chalk-type paint / milk paint
🔸 Oil-based / alkyd enamel & topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based primer & wood sealer (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based & penetrating wood stain (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Lacquer (nitrocellulose / cellulose / pre-catalyzed / catalyzed) (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Varnish & polyurethane / urethane topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Shellac (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Basecoat / clearcoat system (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build direct-to-metal (DTM) coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build / thinned epoxy coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.019″ maximum; solvent-borne: flammable-material safety precautions required)
Not Recommended
❌ Elastomeric coating (requires a 0.025″ or larger spray tip)
❌ Textured / knockdown coating
❌ Block filler
❌ Drywall mud / joint compound
❌ Putty
❌ Gypsum plaster
❌ Bitumen / asphalt coating
❌ Intumescent coating (including thin-film intumescent coating) / fire-retardant paint
❌ 100%-solids epoxy
❌ Zinc-rich primer
❌ Dry-fall coating
❌ Waterproof coating, including waterproofing membrane (liquid-applied)
❌ Stone-texture coating / cementitious fireproofing (SFRM) / lightweight & insulation mortar / 100%-solids epoxy passive fire protection (PFP) / polyurea
❌ Halogenated hydrocarbons (e.g. methylene chloride): react violently with aluminum components
❌ Spraying in hazardous locations (explosive gas atmospheres)
💡 Factory Pro Tip:
Rated for single-gun operation with up to a 0.019″ spray tip. Do not spray the materials listed under Not Recommended.
Internal Engineering
Why Choose the GTB-395 Airless Sprayer
Single-gun airless spraying of interior and exterior latex paint, acrylic wall paint and emulsion, water-based enamel, waterborne wood stain and water-based primer.
The GTB-395 is an airless paint sprayer with a 1000W brushed DC motor, 2.0 L/min maximum flow, 0.019 in maximum tip and 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure; working pressure is read on a pressure gauge. It sprays latex paint, general coatings and paints. Pump body, motor and control PCB are made 100% in-house. Pump bodies, aluminum housings and filters are machined on Japan Brother CNC centers; connecting rods, pistons and plunger bores on USA Haas CNC centers. Every unit passes 100% inspection.
How Electronic Pressure Control Works
Pressure is set on a potentiometer using the pressure control knob. A pressure sensor reads the actual pressure; the main control board compares that reading with the set value and drives the motor accordingly.
1000W Brushed Motor
A 1000W brushed DC motor drives the pump: high-power motor, extra-high flow rate of 2.0 L/min. Motors are made in-house, and every finished sprayer runs a 30-minute continuous high-pressure load test before packing.
Stainless Steel or Dual-Ceramic Pump
Stainless Steel Version (stainless steel rod and cylinder liner) or Dual-Ceramic Version (ceramic-coated rod, ceramic-lined cylinder sleeve). Pump bodies are machined on Japan Brother CNC centers. Maximum flow 2.0 L/min, maximum tip 0.019 in.
* Direct form manufacturer.
Brushed DC Motor
Brushed DC motor. Carbon brushes are a wear part.
Inside-Out Flow Manifold Filter
Inside-out filtration traps debris and reduces tip clogging.
Hardened Steel Gears
Secondary Gear Hobbing for quiet operation.
UPE V-Packings
Composite UHMW-PE & Leather.
Ceramic-Coated or Stainless Steel Rod
Ceramic-coated rod on the Dual-Ceramic Version; stainless steel rod on the Stainless Steel Version.
* Hover over the red dots to see internal details.
Detailed Technical Specs
|
MODEL |
GTB-395 |
|---|---|
|
Max. Tip Size |
0.019″ |
|
Max. Flow Rate |
2.0 L/min |
|
Max. Working Pressure |
3,300 PSI (227 bar / 22.7 MPa) |
|
Power Source |
Electric (AC) |
|
Motor Type |
Brushed DC Motor |
|
Motor Power |
1000W (Approx. 1.3 HP) |
|
Voltage / Frequency |
220V / 50Hz (110V Optional) |
|
Pressure Control |
Electronic Pressure Control |
|
Pump Material |
Stainless steel or Dual-ceramic |
|
Frame Configuration |
Stand Mount (Portable) |
|
Net / Gross Weight |
18.0 / 20.0 kg |
|
Package Dimensions |
0.11 m³ (49*42*53cm) |

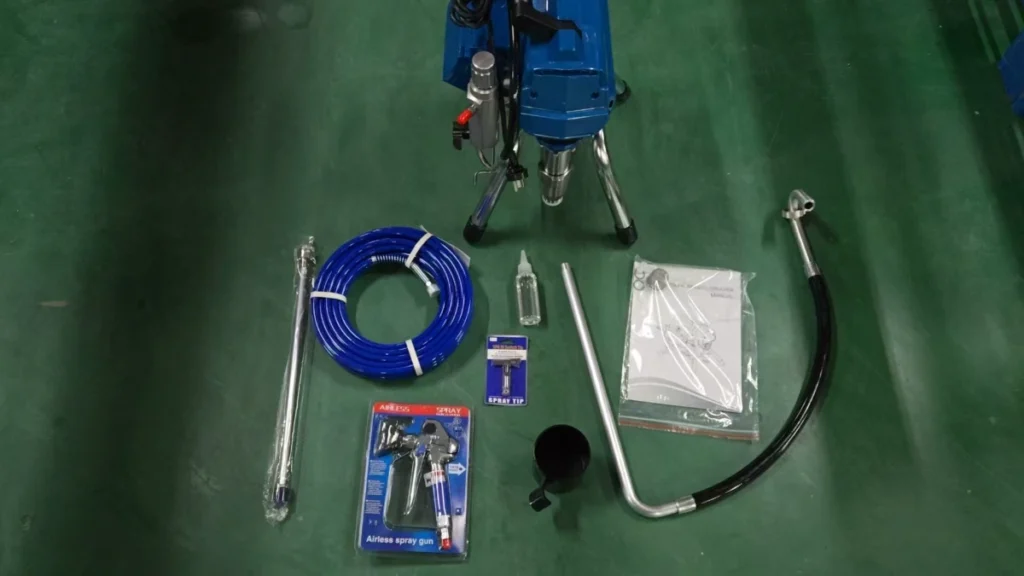

What’s in the Box
| Airless spray gun | 1 |
| 13 m × 1/4″ high-pressure fluid hose | 1 |
| Spray tip 517 | 1 |
| 50 cm extension pole | 1 |
| Suction hose assembly | 1 |
| Drain tube | 1 |
| Suction hose filter screen | 1 |
| Suction hose gasket | 2 |
| Drip cup | 1 |
| Piston rod lubricant | 1 |
| Instruction manual | 1 |
| Wrench | 1 |
OEM/ODM MANUFACTURING
GUTUBAO manufactures core components in-house, including pump bodies, motors, and smart PCBs, with NDA-backed OEM/ODM support.

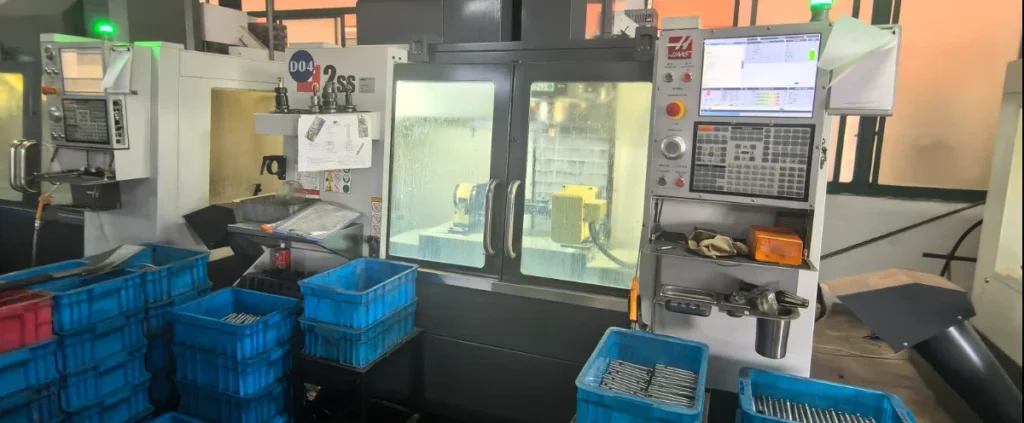

200+ CNC MACHINING EQUIPMENT
110+ employees, including 30+ R&D staff, supported by more than 200 CNC processing machines.
PRECISION MACHINING & INSPECTION
Carl Zeiss CMM, Mitutoyo projection and surface-roughness instruments support dimensional inspection. An Olympus handheld XRF analyzer checks the composition of incoming raw materials. Specified critical machined metal mating surfaces are controlled to ±0.01 mm geometric tolerance.

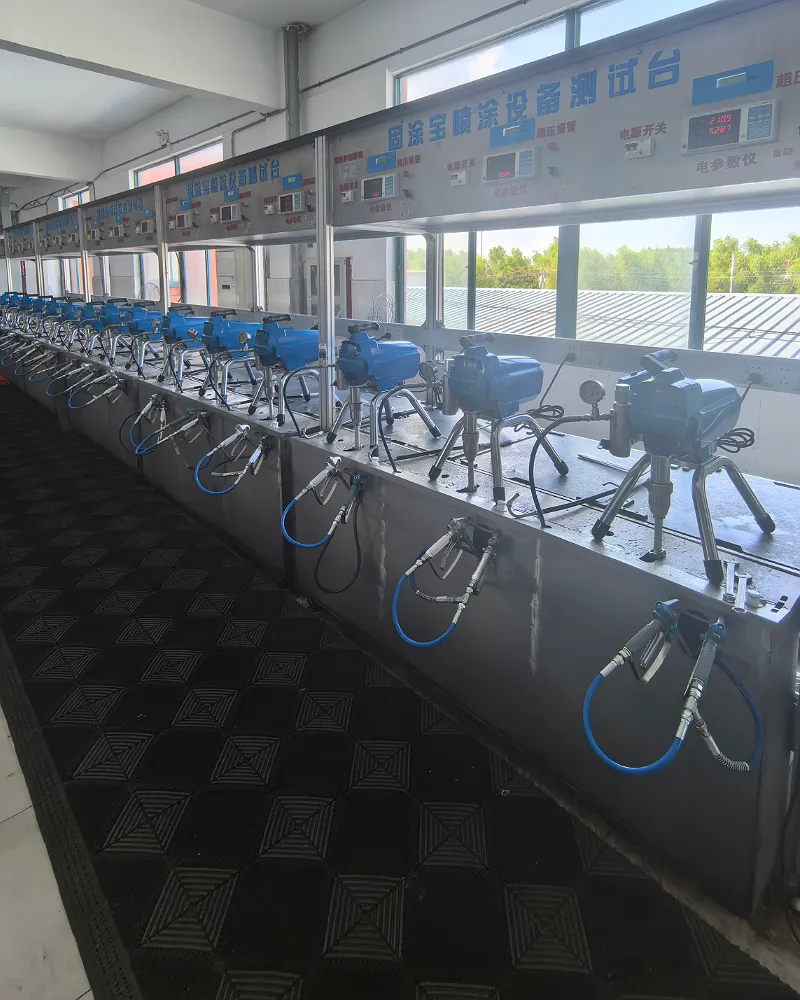

100% FINISHED-UNIT INSPECTION
Every finished unit undergoes inspection and a 30-minute continuous high-pressure load test before shipment. PCB assemblies undergo a separate 4-hour powered aging test.
Airless Sprayer Wholesale & Dealer FAQs
Everything you need to know about importing, strategic OEM services, and our lab-grade quality control processes.
What motor and output does the GTB-395 have?
The GTB-395 runs a 1000 W brushed DC motor with a rated flow of 2.0 L/min and a maximum tip size of 0.019 in. A 517 spray tip is supplied in the box. Under typical industry tip numbering, a 517 denotes a .017 in orifice and about a 10 in fan at a 12 in gun distance.
Which coatings can the GTB-395 spray?
Interior and exterior latex, acrylic wall paints and emulsions, water-based enamels, waterborne wood stains, water-based clear coats, sealers and primers, PVA drywall sealers, acrylic or waterborne lacquers, and chalk-type or milk paints. Oil-based enamels, alkyds, lacquers, varnishes and shellac are conditional: check the coating data sheet and tip recommendation, and follow flammable-material safety practice.
What is the difference between the stainless steel and dual-ceramic versions?
Two versions are sold. The Stainless Steel Version uses a stainless steel rod and a stainless steel cylinder liner. The Dual-Ceramic Version uses a ceramic-coated rod and a ceramic-lined cylinder sleeve with a stainless shell and ceramic bore. Motor, flow and pressure ratings are the same for both.
What comes in the box with the GTB-395?
One airless spray gun, one 13 m x 1/4 in high-pressure hose, one 517 spray tip, one 50 cm extension pole, one suction hose assembly, one drain tube, one suction hose filter screen, two suction hose gaskets, one drip cup, piston rod lubricant, an instruction manual and a wrench.
Is the GTB-395 CE certified?
Yes. The GTB-395 is CE certified under Machinery Directive 2006/42/EC — Certificate No. B-S200428989 (EN ISO 12100:2010, EN 60204-1:2018). CE covers machinery safety and is not an explosion-protection rating: when spraying flammable materials, follow the grounding, ventilation and clearance rules in the manual.
