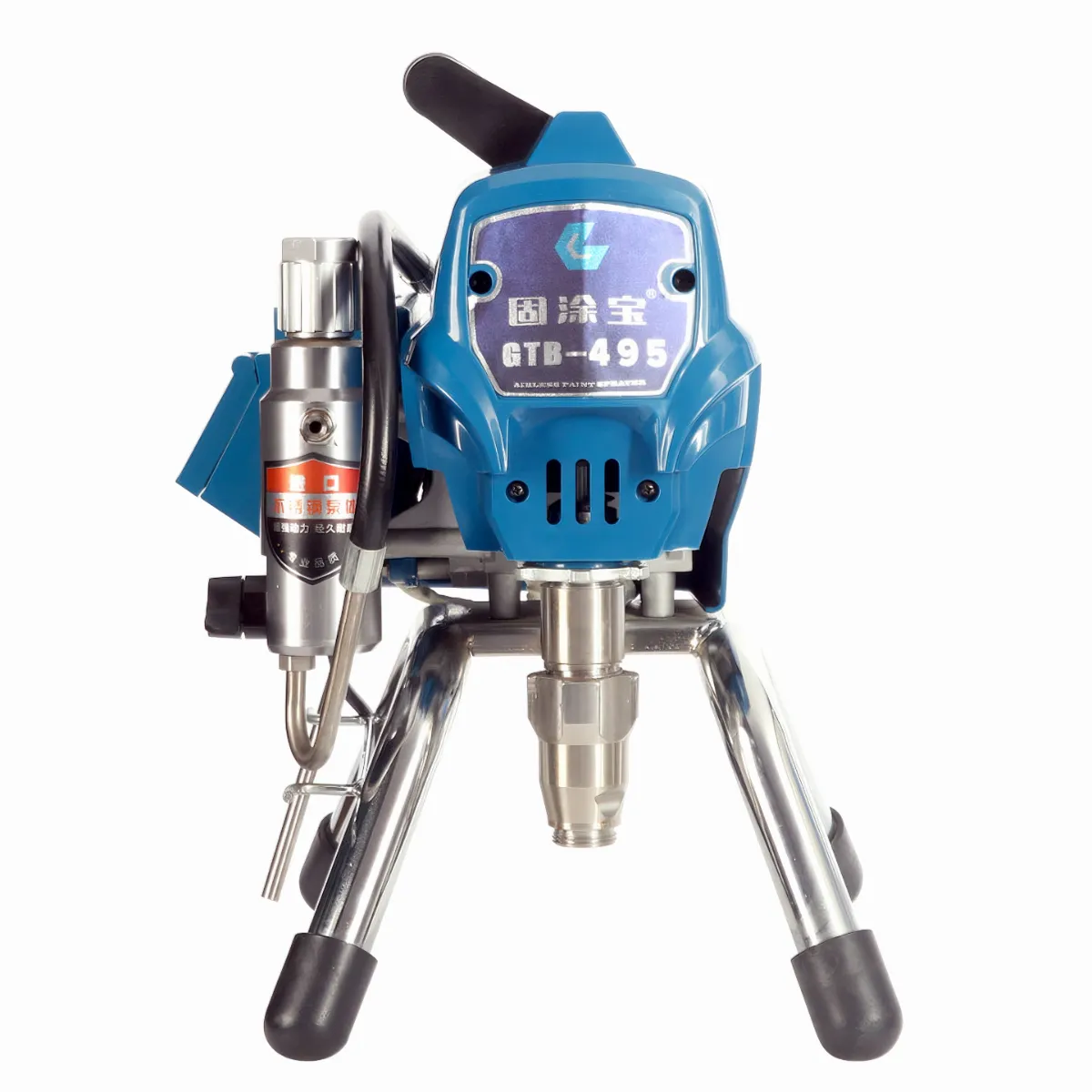

GTB-495 Airless Paint Sprayer
GTB-495 Electric Airless Paint Sprayer: 1500W Brushless DC Motor
- High-power motor.
- Extra-high flow rate for large surfaces.
- Fine, even spray finish.
- Overheat protection.
- Sprays latex paint, general coatings and paints.
GTB-495 is an airless paint sprayer with a 1500 W brushless DC motor: consistent torque, high running efficiency and no carbon-brush wear. Its piston-type fluid section is rated at 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure and the drive carries overheat protection. It is specified for water-based architectural coatings, with oil-based enamels and lacquers handled on a conditional basis per the coating data sheet. Stainless steel and dual-ceramic versions are available.
Manufacturer Since 2010
In-House Pump-Body Machining with Brother & Haas CNCs
100% Inspection & Two-Stage Testing
NDA-Backed OEM/ODM Support
Core Airless Sprayer Technology
1500W Brushless DC Motor, 2.2 L/min, 0.021 in Tip
GTB-495 combines a 1500W brushless DC motor with a piston-type fluid section, offered as a Dual-Ceramic Version or a Stainless Steel Version. Maximum flow rate is 2.2 L/min. On latex paint, acrylic wall paints and water-based primers it produces a fine, even spray finish.

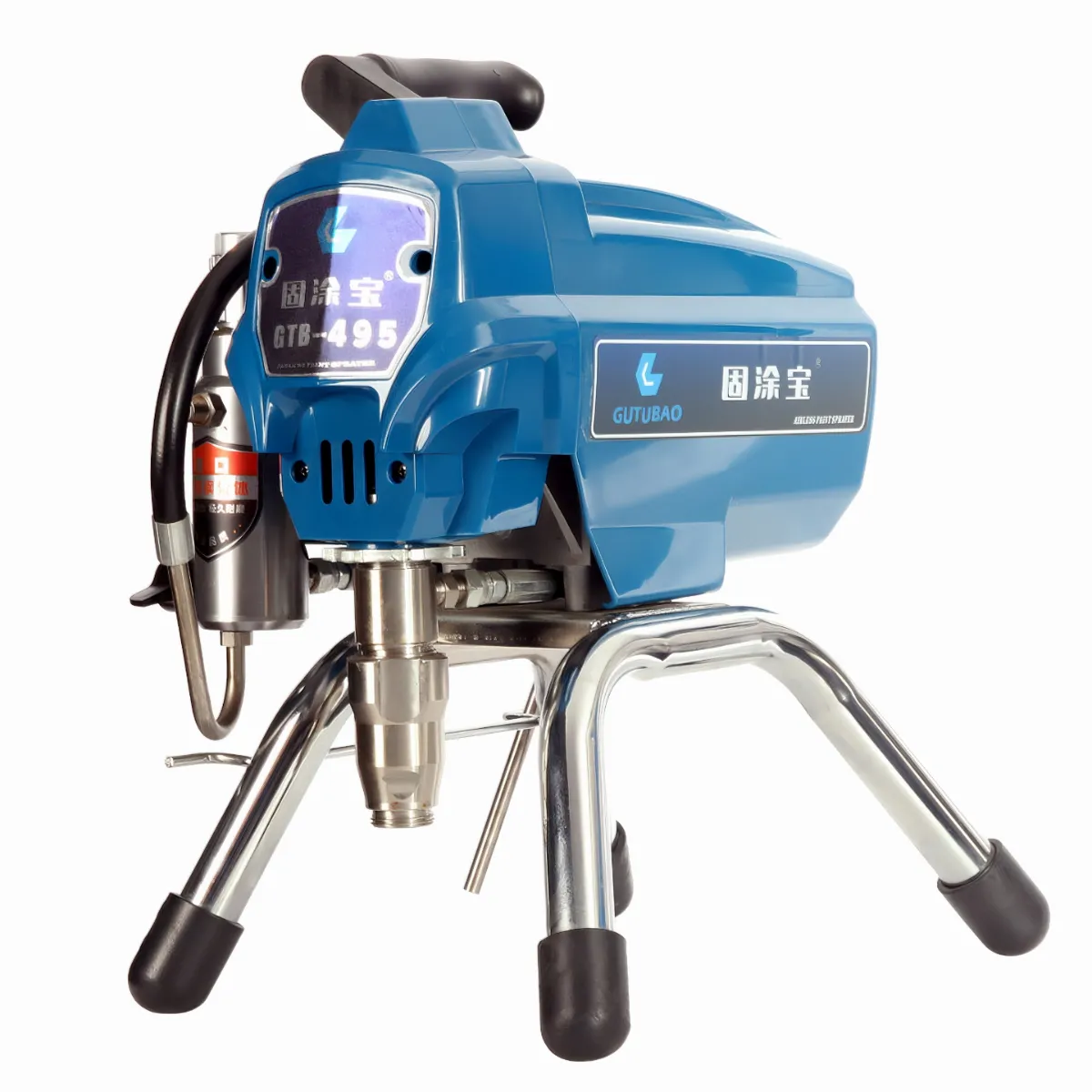

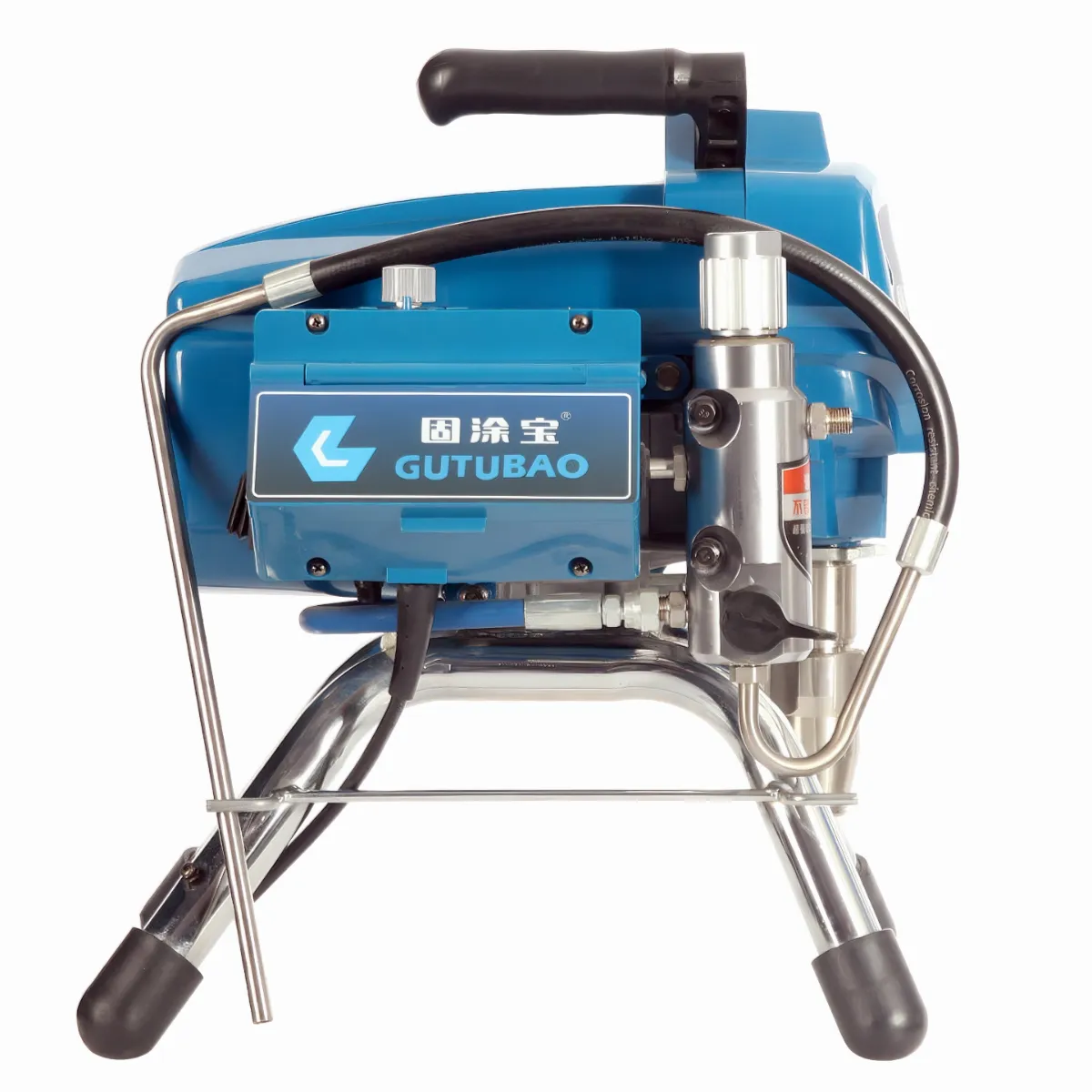

Dual-Ceramic or Stainless Steel Pump
2.2 L/min fluid sectionTwo fluid-section versions: Dual-Ceramic Version (ceramic-coated rod, ceramic-lined cylinder sleeve with stainless shell and ceramic bore) or Stainless Steel Version (stainless steel rod, stainless steel cylinder liner). Maximum flow rate 2.2 L/min, maximum tip size 0.021 in. Pump bodies are machined on Japan Brother CNC centers.

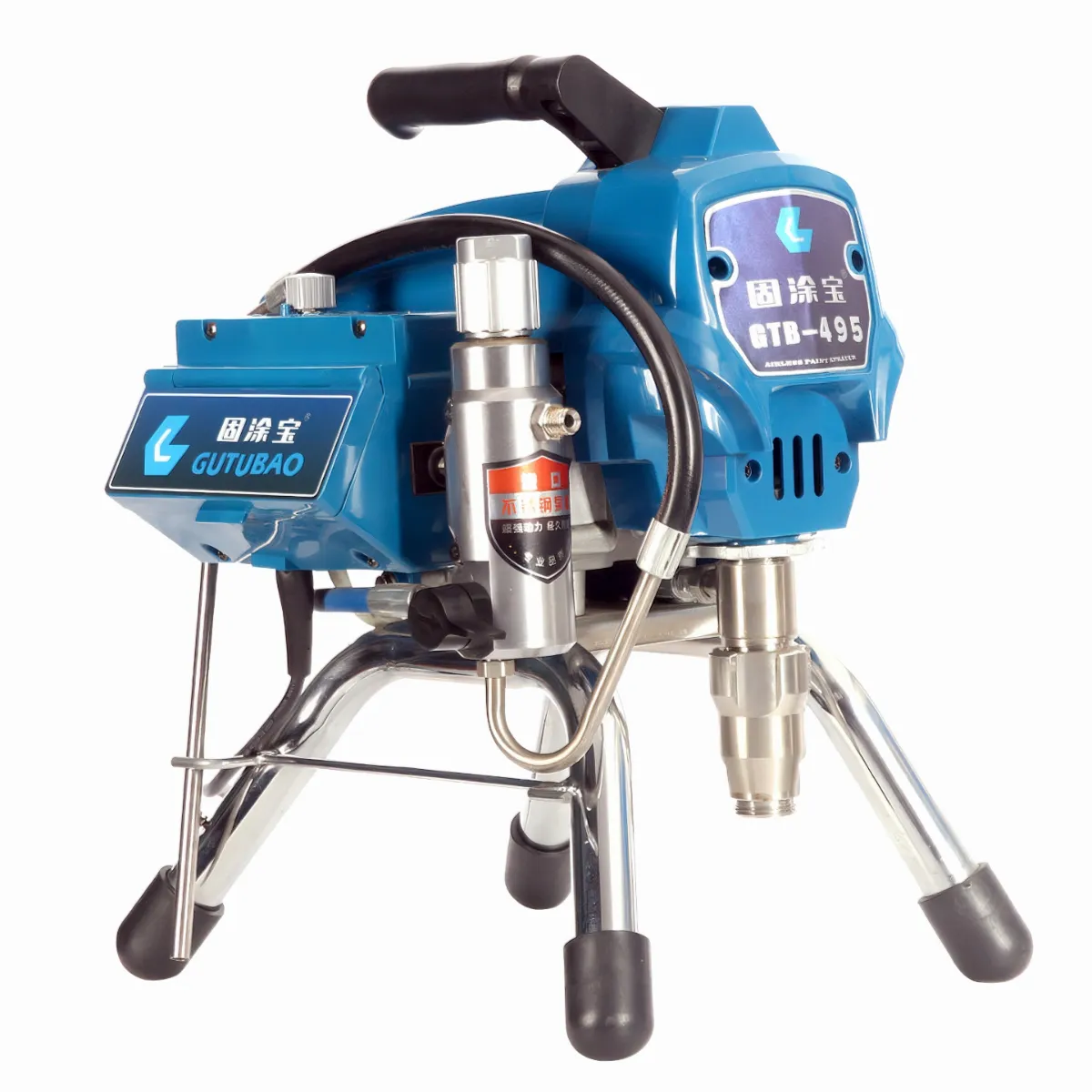

Brushless DC Motor
1500 W brushless DC motorPowered by a 1500W brushless DC motor: consistent torque, high running efficiency and no carbon-brush wear. Rated for single-gun operation. Motors and control PCBs are made in-house, and every PCB runs a 4-hour powered burn-in before assembly.
Electronic Pressure Control and Display Screen
0.021 in tip, 3,300 PSIMax. Working Pressure is 3,300 PSI (227 bar / 22.7 MPa); maximum spray tip size is 0.021″. Working pressure is shown on the display screen, with an English-language interface. Overheat protection is built in.
Material Compatibility of this GTB-495 airless paint sprayer
Whether a coating can be sprayed depends on the spray tip orifice size, flow rate and pressure, together with the viscosity of the coating. Rated values for this sprayer: maximum spray tip size 0.021″, maximum flow rate 2.2 L/min, Max. Working Pressure 3,300 PSI (227 bar / 22.7 MPa). For any specific coating, follow the coating manufacturer’s technical data sheet (TDS).
Supported Materials
✅ Interior / exterior latex paint (flat / eggshell / satin / semi-gloss)
✅ Acrylic wall paint / emulsion
✅ Water-based enamel
✅ Waterborne wood stain (solid & semi-transparent)
✅ Water-based clear coat / sealer / topcoat
✅ Water-based primer & PVA drywall sealer
✅ Acrylic / waterborne lacquer
✅ Chalk-type paint / milk paint
🔸 Oil-based / alkyd enamel & topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based primer & wood sealer (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based & penetrating wood stain (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Lacquer (nitrocellulose / cellulose / pre-catalyzed / catalyzed) (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Varnish & polyurethane / urethane topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Shellac (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Basecoat / clearcoat system (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build direct-to-metal (DTM) coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build / thinned epoxy coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
Not Recommended
❌ Elastomeric coating (requires a 0.025″ or larger spray tip)
❌ Textured / knockdown coating
❌ Block filler
❌ Drywall mud / joint compound
❌ Putty
❌ Gypsum plaster
❌ Bitumen / asphalt coating
❌ Intumescent coating (including thin-film intumescent coating) / fire-retardant paint
❌ 100%-solids epoxy
❌ Zinc-rich primer
❌ Dry-fall coating
❌ Waterproof coating, including waterproofing membrane (liquid-applied)
❌ Stone-texture coating / cementitious fireproofing (SFRM) / lightweight & insulation mortar / 100%-solids epoxy passive fire protection (PFP) / polyurea
❌ Halogenated hydrocarbons (e.g. methylene chloride): react violently with aluminum components
❌ Spraying in hazardous locations (explosive gas atmospheres)
💡 Factory Pro Tip:
Rated for single-gun operation with up to a 0.021″ spray tip. Interior and exterior latex paint is within its range; take the exact tip size for a given coating from the coating manufacturer’s data sheet.

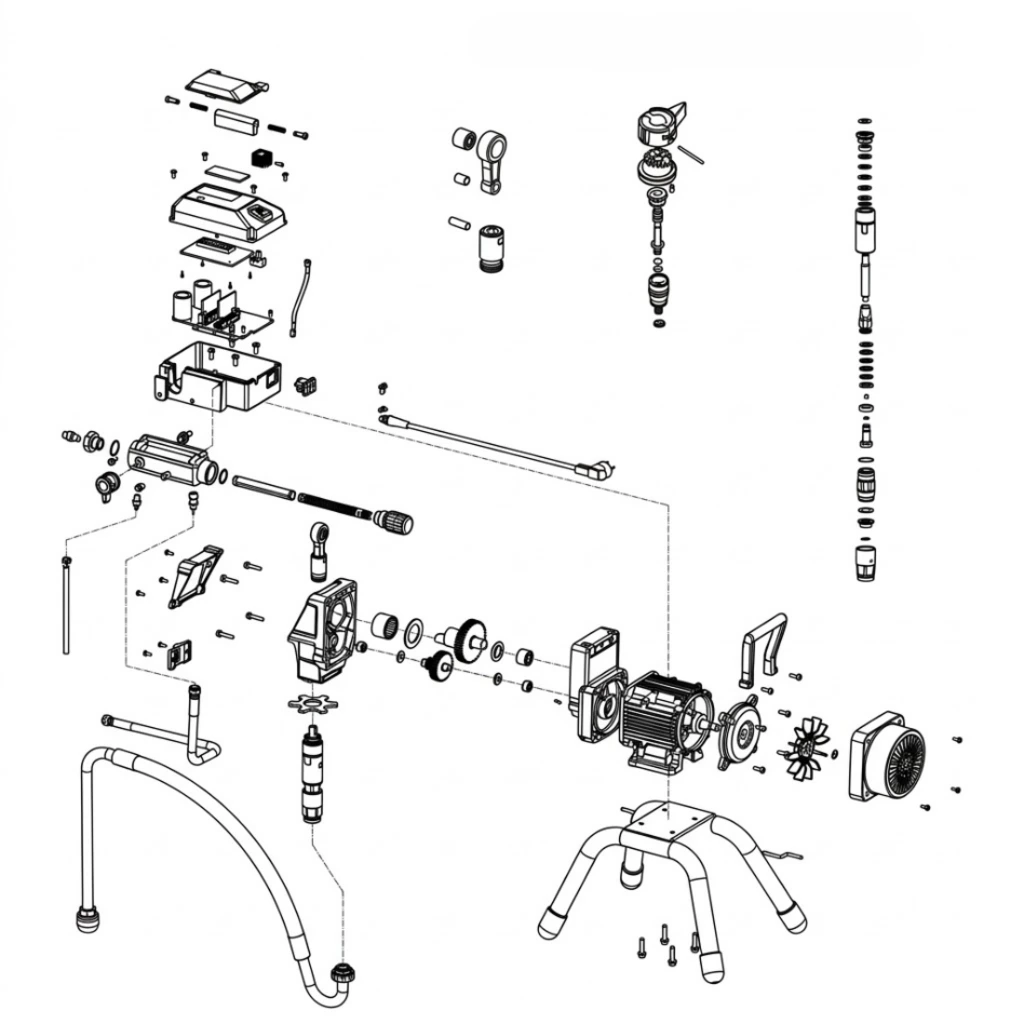

Internal Engineering
Why Choose the GTB-495 Airless Sprayer
Single-gun airless spraying of interior and exterior latex paint, acrylic wall paints and emulsions, water-based enamels and primers.
The GTB-495 is an airless paint sprayer with a 1500W brushless DC motor, 2.2 L/min maximum flow, 0.021 in maximum tip and 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure, with overheat protection and working pressure shown on an English-language display screen. Pump body, motor and control PCB are made 100% in-house. Pump bodies, aluminum housings and filters are machined on Japan Brother CNC centers; connecting rods, pistons and plunger bores on USA Haas CNC centers.
How Electronic Pressure Control Works
Pressure is set on a potentiometer. A pressure sensor reads the actual pressure; the main control board compares that reading with the set value and drives the motor accordingly.
1500W Brushless Motor
A 1500W brushless DC motor: consistent torque, high running efficiency and no carbon-brush wear. Overheat protection is built in.
Stainless Steel or Dual-Ceramic Pump
Stainless Steel Version or Dual-Ceramic Version fluid section, 2.2 L/min maximum flow and 0.021 in maximum tip. Pump bodies are machined on Japan Brother CNC centers.
* Direct form manufacturer.
Control Box with Digital Display
Working pressure is shown on the display screen. The interface is in English. Overheat protection is built in.
Brushless DC Motor
Consistent torque, high running efficiency and no carbon-brush wear. No brushes to replace.
Hardened Steel Gears
Secondary Gear Hobbing for quiet operation.
Ceramic-Coated or Stainless Steel Rod
Ceramic-coated rod on the Dual-Ceramic Version; stainless steel rod on the Stainless Steel Version.
UPE V-Packings
Composite UHMW-PE & Leather.
* Hover over the red dots to see internal details.
Detailed Technical Specs
|
MODEL |
GTB-495 |
|---|---|
|
Max. Tip Size |
0.021″ |
|
Max. Flow Rate |
2.2 L/min |
|
Max. Working Pressure |
3,300 PSI (227 bar / 22.7 MPa) |
|
Power Source |
Electric (AC) |
|
Motor Type |
Brushless DC Motor |
|
Motor Power |
1500W (Approx. 2.0 HP) |
|
Voltage / Frequency |
220V / 50Hz (110V Optional) |
|
Pressure Control |
Electronic Pressure Control |
|
Pump Material |
Stainless steel or Dual-ceramic |
|
Frame Configuration |
Stand Mount (Portable) |
|
Net / Gross Weight |
19 / 21.0 kg |
|
Package Dimensions |
0.11 m³ (49*42*53cm) |
What’s in the Box
| Airless spray gun | 1 |
| 13 m × 1/4″ high-pressure fluid hose | 1 |
| Spray tip 519 | 1 |
| 50 cm extension pole | 1 |
| Suction hose assembly | 1 |
| Drain tube | 1 |
| Suction hose filter screen | 1 |
| Suction hose gasket | 2 |
| Drip cup | 1 |
| Piston rod lubricant | 1 |
| Instruction manual | 1 |
| Wrench | 1 |
OEM/ODM MANUFACTURING
GUTUBAO manufactures core components in-house, including pump bodies, motors, and smart PCBs, with NDA-backed OEM/ODM support.
200+ CNC MACHINING EQUIPMENT
110+ employees, including 30+ R&D staff, supported by more than 200 CNC processing machines.
PRECISION MACHINING & INSPECTION
Carl Zeiss CMM, Mitutoyo projection and surface-roughness instruments support dimensional inspection. An Olympus handheld XRF analyzer checks the composition of incoming raw materials. Specified critical machined metal mating surfaces are controlled to ±0.01 mm geometric tolerance.
100% FINISHED-UNIT INSPECTION
Every finished unit undergoes inspection and a 30-minute continuous high-pressure load test before shipment. PCB assemblies undergo a separate 4-hour powered aging test.
Airless Sprayer Wholesale & Dealer FAQs
Everything you need to know about importing, strategic OEM services, and our lab-grade quality control processes.
Why does the GTB-495 use a brushless motor?
The GTB-495 runs a 1500 W brushless DC motor. A brushless drive gives consistent torque, high running efficiency and no carbon-brush wear, so there are no brushes to replace over the service life of the motor.
What tip sizes and flow does the GTB-495 support?
Rated flow is 2.2 L/min and the maximum tip size is 0.021 in. A 519 tip is supplied. Under typical industry tip numbering, the last two digits give the orifice in thousandths of an inch, so a 519 is a .019 in orifice.
Can the GTB-495 spray oil-based enamels and lacquers?
Conditionally. Oil-based and alkyd enamels, oil-based primers and stains, nitrocellulose and catalyzed lacquers, varnishes, polyurethanes and shellac are in the conditional class: follow the coating data sheet for tip size and thinning, keep the sprayer, hose, gun and pail grounded, ventilate, and keep at least 6 m (20 ft) from ignition sources.
Which version should I order, stainless steel or dual-ceramic?
Both are in production. The Stainless Steel Version pairs a stainless steel rod with a stainless steel cylinder liner. The Dual-Ceramic Version pairs a ceramic-coated rod with a ceramic-lined cylinder sleeve (stainless shell, ceramic bore). Motor, flow and pressure ratings are the same; choose by the coatings and duty you run.
Is the GTB-495 CE certified for the EU market?
Yes. The GTB-495 is CE certified under Machinery Directive 2006/42/EC — Certificate No. B-S200428989 (EN ISO 12100:2010, EN 60204-1:2018).
