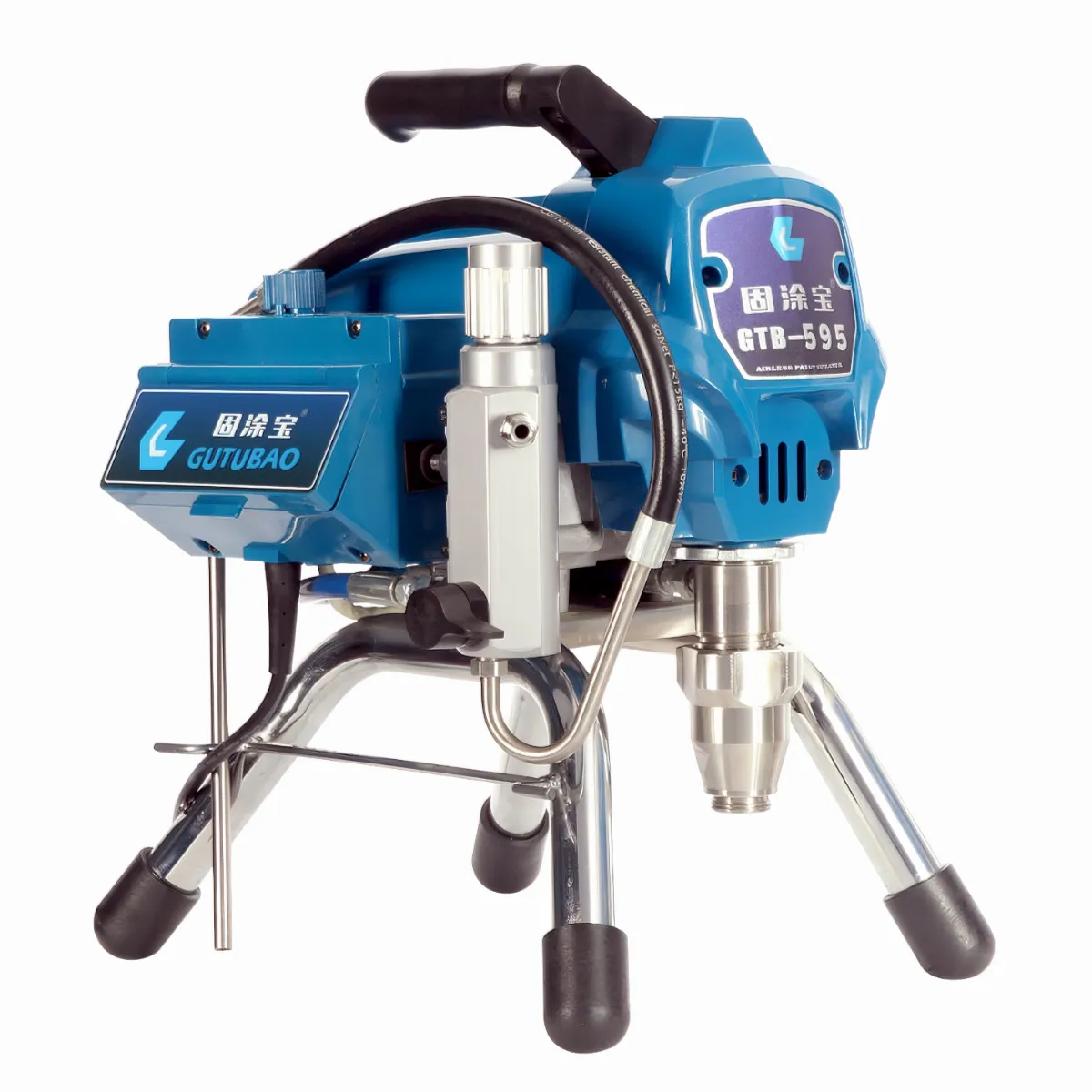

GTB-595 Airless Paint Sprayer
GTB-595 Electric Airless Paint Sprayer: 2200W Brushless DC Motor
- Extra-high flow rate for two-coat jobs.
- High-power motor.
- Fine, even spray finish on ceilings and walls.
- Overheat protection.
- Sprays latex paint, general coatings and paints.
GTB-595 is an airless paint sprayer built for wall and ceiling work: a 2200 W brushless DC motor, overheat protection, and a piston-type fluid section rated at 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure. It covers water-based latex, acrylic, enamel, primer, stain and clear-coat systems. Order it as a Stainless Steel Version or a Dual-Ceramic Version; drive and pressure ratings are identical.
Manufacturer Since 2010
In-House Pump-Body Machining with Brother & Haas CNCs
100% Inspection & Two-Stage Testing
NDA-Backed OEM/ODM Support
Core Airless Sprayer Technology
2200W Brushless DC Motor, 2.5 L/min, 0.021 in Tip
A 2200W brushless DC motor drives a piston-type fluid section, supplied in a Dual-Ceramic Version (ceramic-coated rod and ceramic-lined cylinder sleeve) or a Stainless Steel Version, delivering up to 2.5 L/min for water-based latex, acrylic and primer coatings on walls.
Dual-Ceramic or Stainless Steel Pump
2.5 L/min fluid sectionMachined on Japan Brother SPEEDIO CNC centers, this fluid section is offered as a Dual-Ceramic Version (ceramic-coated rod, ceramic-lined cylinder sleeve with stainless shell and ceramic bore) or a Stainless Steel Version (stainless steel rod, stainless steel cylinder liner). Maximum flow rate 2.5 L/min, maximum tip size 0.021 in; ±0.01 mm tolerance applies only to critical machined metal mating surfaces.
Brushless DC Motor
2200 W brushless DC motorPowered by a 2200W brushless DC motor: consistent torque, high running efficiency and no carbon-brush wear. Rated for single-gun operation. Motors and control PCBs are made in-house; every PCB runs a 4-hour powered burn-in before assembly and every finished sprayer a 30-minute continuous high-pressure load test.
Electronic Pressure Control and Display Screen
Up to 3,300 PSI, 0.021 inRated at 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure with support for up to a 0.021″ spray tip and 2.5 L/min maximum flow. Working pressure is visible on the display screen, which has an English-language interface, and overheat protection is built in.
Material Compatibility of this GTB-595 airless paint sprayer
Whether a coating can be sprayed depends on the spray tip orifice size, flow rate and pressure, together with the viscosity of the coating. Rated values for this sprayer: maximum spray tip size 0.021″, maximum flow rate 2.5 L/min, Max. Working Pressure 3,300 PSI (227 bar / 22.7 MPa). For any specific coating, follow the coating manufacturer’s technical data sheet (TDS).
Supported Materials
✅ Interior / exterior latex paint (flat / eggshell / satin / semi-gloss)
✅ Acrylic wall paint / emulsion
✅ Water-based enamel
✅ Waterborne wood stain (solid & semi-transparent)
✅ Water-based clear coat / sealer / topcoat
✅ Water-based primer & PVA drywall sealer
✅ Acrylic / waterborne lacquer
✅ Chalk-type paint / milk paint
🔸 Oil-based / alkyd enamel & topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based primer & wood sealer (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Oil-based & penetrating wood stain (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Lacquer (nitrocellulose / cellulose / pre-catalyzed / catalyzed) (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Varnish & polyurethane / urethane topcoat (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Shellac (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Basecoat / clearcoat system (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build direct-to-metal (DTM) coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
🔸 Light-build / thinned epoxy coating (conditional: tip size per the coating manufacturer’s TDS, no larger than one size below the 0.021″ maximum; solvent-borne: flammable-material safety precautions required)
Not Recommended
❌ Elastomeric coating (requires a 0.025″ or larger spray tip)
❌ Textured / knockdown coating
❌ Block filler
❌ Drywall mud / joint compound
❌ Putty
❌ Gypsum plaster
❌ Bitumen / asphalt coating
❌ Intumescent coating (including thin-film intumescent coating) / fire-retardant paint
❌ 100%-solids epoxy
❌ Zinc-rich primer
❌ Dry-fall coating
❌ Waterproof coating, including waterproofing membrane (liquid-applied)
❌ Stone-texture coating / cementitious fireproofing (SFRM) / lightweight & insulation mortar / 100%-solids epoxy passive fire protection (PFP) / polyurea
❌ Halogenated hydrocarbons (e.g. methylene chloride): react violently with aluminum components
❌ Spraying in hazardous locations (explosive gas atmospheres)
💡 Factory Pro Tip:
Rated for single-gun operation with up to a 0.021″ spray tip. Interior and exterior latex paint is within its range; take the exact tip size for a given coating from the coating manufacturer’s data sheet.
Internal Engineering
Why Choose the GTB-595 Airless Sprayer
Single-gun airless spraying of interior and exterior latex paint, acrylic wall paints and emulsions, water-based enamels and primers.
The GTB-595 is an airless paint sprayer with a 2200W brushless DC motor, 2.5 L/min maximum flow, 0.021 in maximum tip and 3,300 PSI (227 bar / 22.7 MPa) Max. Working Pressure, with overheat protection and working pressure shown on an English-language display screen. Pump body, motor and control PCB are made 100% in-house. Pump bodies, aluminum housings and filters are machined on Japan Brother CNC centers; connecting rods, pistons and plunger bores on USA Haas CNC centers.
How Electronic Pressure Control Works
Pressure is set on a potentiometer. A pressure sensor reads the actual pressure; the main control board compares that reading with the set value and drives the motor accordingly.
2200W Brushless Motor
A 2200W brushless DC motor: consistent torque, high running efficiency and no carbon-brush wear. Overheat protection is built in.
Stainless Steel or Dual-Ceramic Versions
Stainless Steel Version (stainless steel rod and cylinder liner) or Dual-Ceramic Version (ceramic-coated rod, ceramic-lined cylinder sleeve). Maximum flow 2.5 L/min, maximum tip 0.021 in.
* Direct form manufacturer.
Control Box with Digital Display
Working pressure is shown on the display screen. The interface is in English. Overheat protection is built in.
Brushless DC Motor
Consistent torque, high running efficiency and no carbon-brush wear. No brushes to replace.
Hardened Steel Gears
Secondary Gear Hobbing for quiet operation.
Ceramic-Coated or Stainless Steel Rod
Ceramic-coated rod on the Dual-Ceramic Version; stainless steel rod on the Stainless Steel Version.
UPE V-Packings
Composite UHMW-PE & Leather.
* Hover over the red dots to see internal details.
Detailed Technical Specs
|
MODEL |
GTB-595 |
|---|---|
|
Max. Tip Size |
0.021″ |
|
Max. Flow Rate |
2.5 L/min |
|
Max. Working Pressure |
3,300 PSI (227 bar / 22.7 MPa) |
|
Power Source |
Electric (AC) |
|
Motor Type |
Brushless DC Motor |
|
Motor Power |
2200W (Approx. 3.0 HP) |
|
Voltage / Frequency |
220V / 50Hz (110V Optional) |
|
Pressure Control |
Electronic Pressure Control |
|
Pump Material |
Stainless steel or Dual-ceramic |
|
Frame Configuration |
Stand Mount (Portable) |
|
Net / Gross Weight |
20.0 / 22.0 kg |
|
Package Dimensions |
0.11 m³ (49*42*53cm) |
What’s in the Box
| Airless spray gun | 1 |
| 13 m × 1/4″ high-pressure fluid hose | 1 |
| Spray tip 621 | 1 |
| 50 cm extension pole | 1 |
| Suction hose assembly | 1 |
| Drain tube | 1 |
| Suction hose filter screen | 1 |
| Suction hose gasket | 2 |
| Drip cup | 1 |
| Piston rod lubricant | 1 |
| Instruction manual | 1 |
| Wrench | 1 |
OEM/ODM MANUFACTURING
GUTUBAO manufactures core components in-house, including pump bodies, motors, and smart PCBs, with NDA-backed OEM/ODM support.
200+ CNC MACHINING EQUIPMENT
110+ employees, including 30+ R&D staff, supported by more than 200 CNC processing machines.
PRECISION MACHINING & INSPECTION
Carl Zeiss CMM, Mitutoyo projection and surface-roughness instruments support dimensional inspection. An Olympus handheld XRF analyzer checks the composition of incoming raw materials. Specified critical machined metal mating surfaces are controlled to ±0.01 mm geometric tolerance.
100% FINISHED-UNIT INSPECTION
Every finished unit undergoes inspection and a 30-minute continuous high-pressure load test before shipment. PCB assemblies undergo a separate 4-hour powered aging test.
Airless Sprayer Wholesale & Dealer FAQs
Everything you need to know about importing, strategic OEM services, and our lab-grade quality control processes.
What is the GTB-595 built for?
The GTB-595 is a 2200 W brushless DC unit rated at 2.5 L/min with a 0.021 in maximum tip size. It is specified for water-based architectural coatings: latex, acrylic, water-based enamels, primers and sealers on walls and ceilings.
What tip ships with the GTB-595, and what is the maximum tip size?
A 621 spray tip is supplied, and the maximum rated tip size is 0.021 in. Under typical industry tip numbering, a 621 denotes a .021 in orifice and roughly a 12 in fan at a 12 in gun distance.
Can the GTB-595 spray primers, stains and clear coats?
Yes, water-based ones: water-based primers and PVA drywall sealers, waterborne wood stains (solid and semi-transparent), and water-based clear coats, sealers and topcoats are all in the sprayable class. Oil-based primers and stains, varnishes and polyurethanes are conditional and need the coating data sheet plus flammable-material precautions.
Which pump versions of the GTB-595 are available?
Two. Stainless Steel Version: stainless steel rod and stainless steel cylinder liner. Dual-Ceramic Version: ceramic-coated rod and ceramic-lined cylinder sleeve (stainless shell, ceramic bore). Motor, flow and pressure ratings do not change between versions.
What testing does each GTB-595 pass before packing?
100% inspection. The PCB is powered for a 4-hour burn-in, the assembled sprayer runs a 30-minute continuous high-pressure load test, and first-article, in-process and final inspections cover each unit.
