GTB-970 12.0 L/min Hydraulic Sprayer Standard

Heavy-Duty 12.0 L/min Hydraulic Sprayer for Industrial Coatings, Waterproofing, and High-Production Contracting.

Motor Power
4000W
Max. Tip Size
0.051″

Max. Flow Rate
12.0 L/min
Pump Material
Severe-Duty Stainless Steel with Hardened Alloy

Engineered for the most demanding industrial applications, the GTB-970 is a heavy-duty hydraulic airless sprayer delivering a 12.0 L/min flow rate. Powered by a 4000W electric motor (or optional 9HP gas engine), this rig easily pushes high-viscosity materials—including 100% solid epoxies, roof coatings, and putty—while effortlessly supporting up to a 0.051″ tip. Utilizing imported tungsten carbide components and leather packings, it provides time-tested durability and relentless performance for steel structure, waterproofing, and heavy-duty coating projects.

Get Factory Quote

Source Factory Since 2010

Machined by Brother & Haas CNCs

100% Full Inspection (4h Aging)

Global OEM/ODM Support

Overview Features Applications Structure Specs FAQ

GET FACTORY QUOTE

Industrial Hydraulic Technology

Heavy-Duty Hydraulic Power for Tough Coatings

Equipped with a robust hydraulic piston system and a USA Haas CNC-machined fluid pump, delivering a massive 12.0 L/min fluid displacement at 3000 PSI and utilizing Heavy-Duty UPE & Leather V-Packings to effortlessly atomize high-viscosity protective coatings for continuous industrial output.

High-Capacity Hydraulic System

Faster Cooling & No Downtime

The high-capacity cooling system’s innovative design allows the pump to run cooler and more efficiently during heavy-duty continuous operation. This thermal stability ensures a sustained 3000 PSI (20 MPa) to eliminate costly downtime without thermal shutdown. Built-to-last equipment goes through stringent quality checks to ensure compliance with EN ISO 12100:2010 so high-quality standards are met.

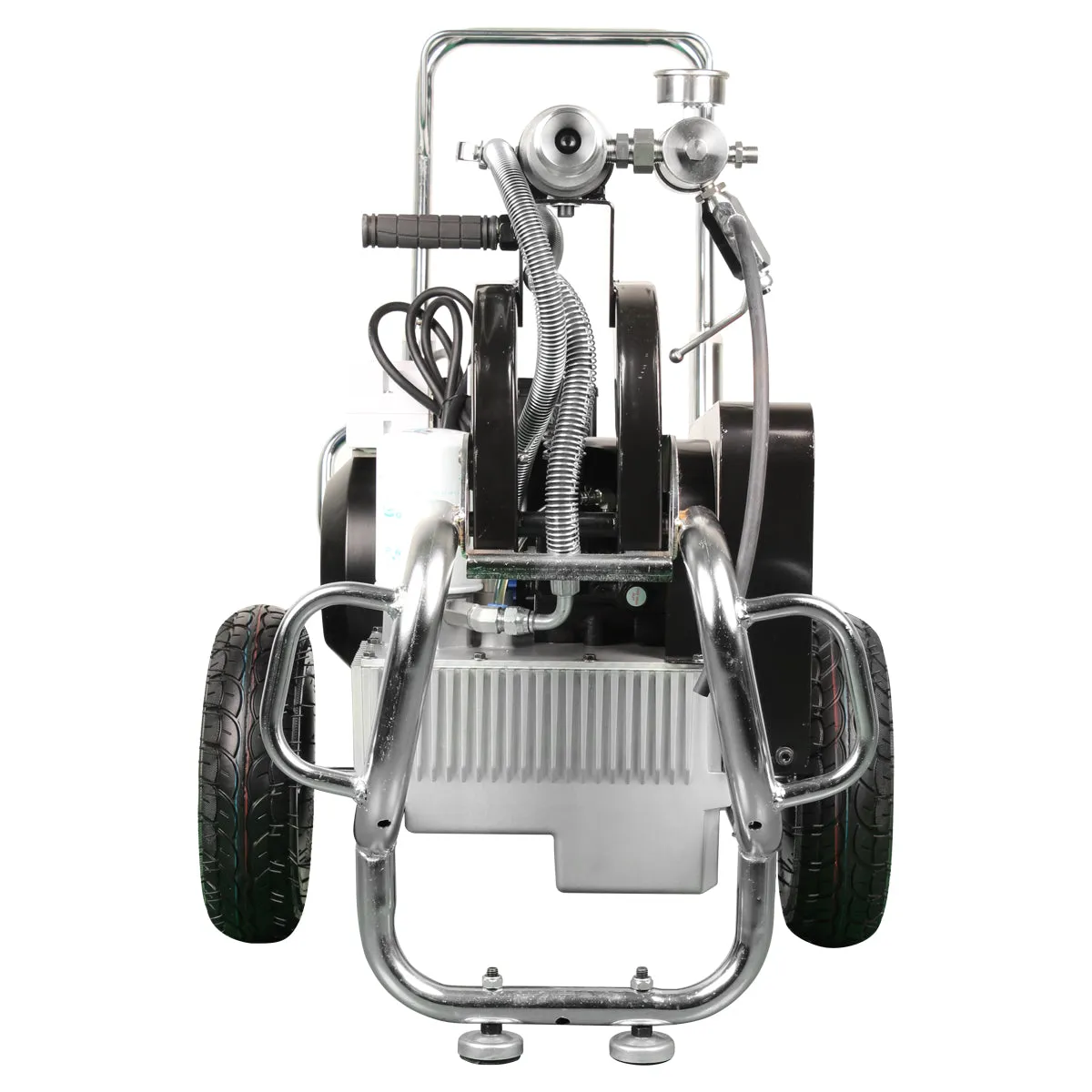

Severe Duty Pump

Unrestricted High-Viscosity Flow

The direct immersion pump with a submerged foot valve easily loads and pumps high-viscosity fluids like heavy mastics, putty, and bitumen. It features Tungsten Carbide valves and Heavy-Duty UPE & Leather V-Packings for ultimate durability with most materials. With a 12.0 L/min maximum flow rate, the oversized passages and a 0.051″ tip provide maximum flow and superior atomization.

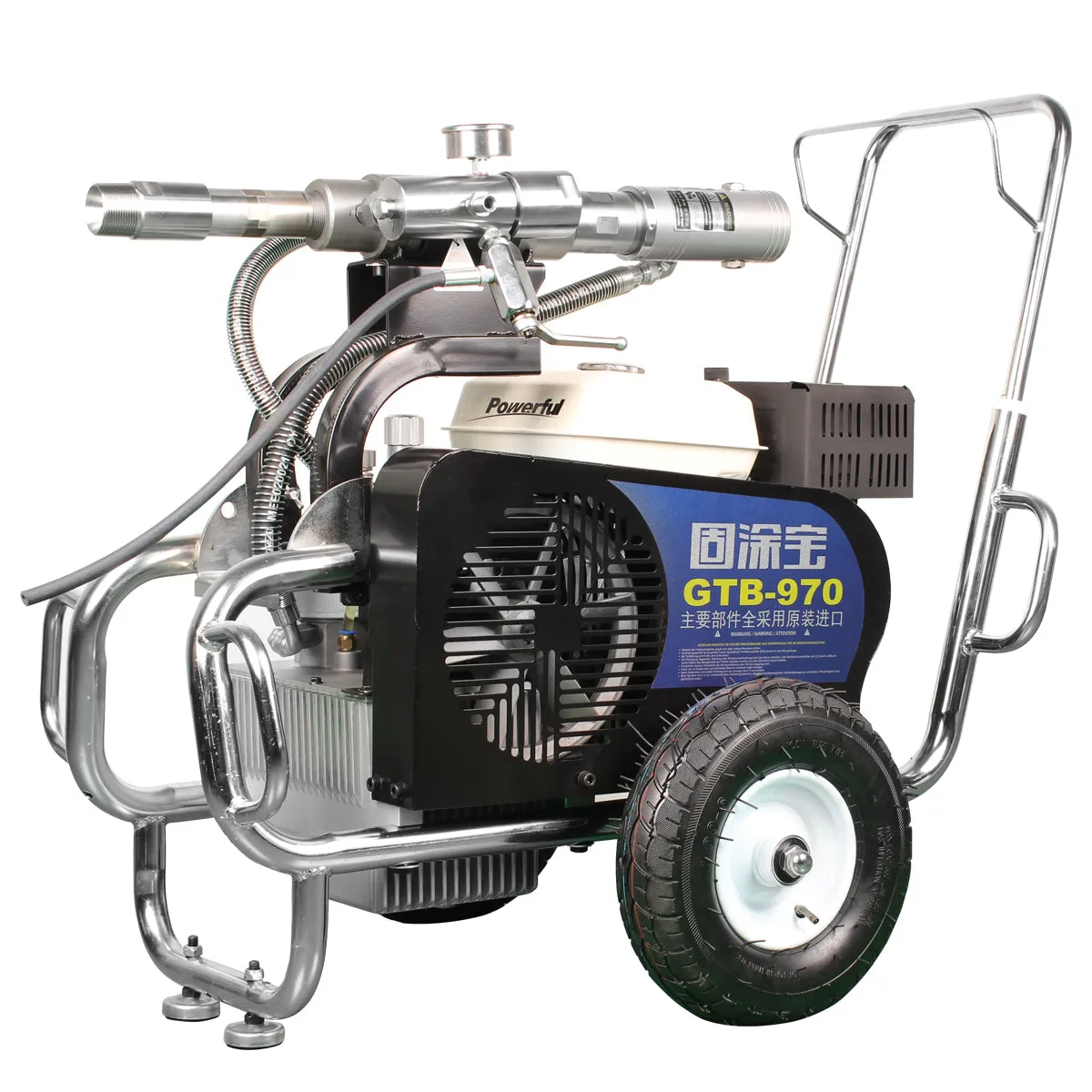

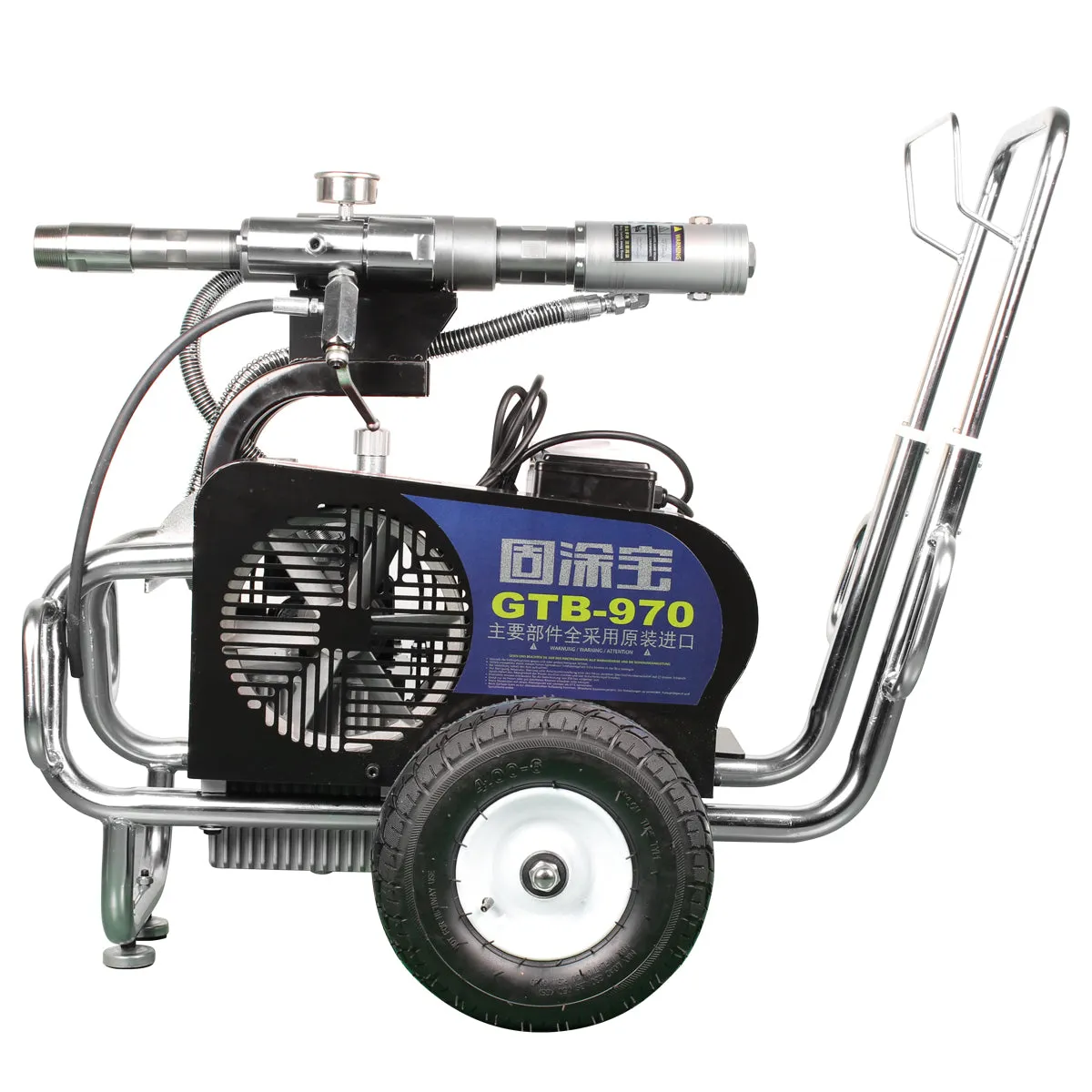

Heavy-Duty Drive System

MAXIMUM POWER TRANSFER

A 9.0 HP gas engine with an integrated fuel tank delivers maximum performance, making it adaptable to any jobsite. For indoor and outdoor use, quickly swap the gas engine for a 4000W electric motor in seconds without tools. Every sprayer is factory tested with a 30-minute high-pressure load test, and the field-proven design keeps the sprayers performing with factory reliability on the job for years.

Material Compatibility of this 12.0 L/min Hydraulic Sprayer

Built for Extreme Industrial & Protective Coatings. Ideal for steel structures, marine environments, and roof waterproofing projects.

Supported Materials

✅ 100% Solid Epoxies & Zinc-Rich Primers

✅ Roof Coatings (Elastomeric / Bitumen)

✅ High Solid Polyurethane

✅ Block Fillers & Heavy Putty

Not Recommended

❌ Cementitious Fireproofing

❌ Plaster / Stucco

❌ Any material with aggregate > 2mm

Viscosity Rating

Current: Ultra-High

Light (Stains) Medium (Latex) Extreme (Putty/Bitumen)

💡 Factory Pro Tip:

Supports up to a massive 0.051″ tip. Effortlessly atomizes high-viscosity materials like bitumen, intumescent fireproofing, and epoxy without thermal drop.

Internal Engineering

Why Choose the GTB-970 Standard for Professional Contractors?

Built for extreme industrial and heavy-duty coatings. The operational baseline for large-scale production.

We stand behind the 100% in-house core components we manufacture with the industry’s strongest warranty. The system is engineered to produce Motors, Pumps, and Smart PCBs accurately, even at high flow rates, for increased productivity and profitability. With over 200 CNCs, including USA Haas and Japan Brother, a standard production system must be designed with a high degree of precision. Some of the best systems use Single Setup / Simultaneous Dual-Hole Boring that holds position repeatability to within exacting tolerances.

Results are validated by the German Carl Zeiss CMM and the component is stamped to indicate a “pass” result. Real-time monitoring maintains 0.01mm concentricity. All sprayers are factory-tested with a 30-minute high-pressure load test and field-proven so you can be sure your money is going toward the best professional paint sprayer you can purchase.

Our equipment strictly meets all EN ISO 12100:2010 standards and complies with rigorous industrial regulations.Designed for the toughest jobsite conditions, this heavy-duty hydraulic workhorse is built to last.The advanced system allows you to operate under extreme pressure, guaranteeing zero downtime and keeping you spraying while extending the life of the sprayer.

Get Factory Direct Price

* Direct form manufacturer.

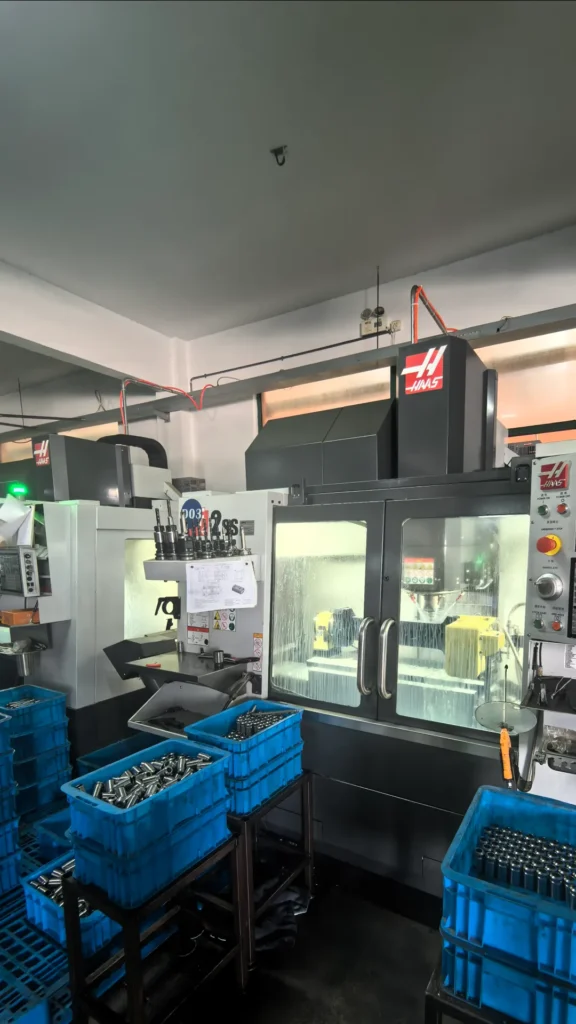

Genuine USA Haas CNC machining centers manufacturing precision core components for heavy-duty hydraulic airless paint sprayers.

GTB-970 Standard Technical Specifications

Compare the heavy-duty electric and gas power options for the 12.0 L/min Hydraulic Sprayer

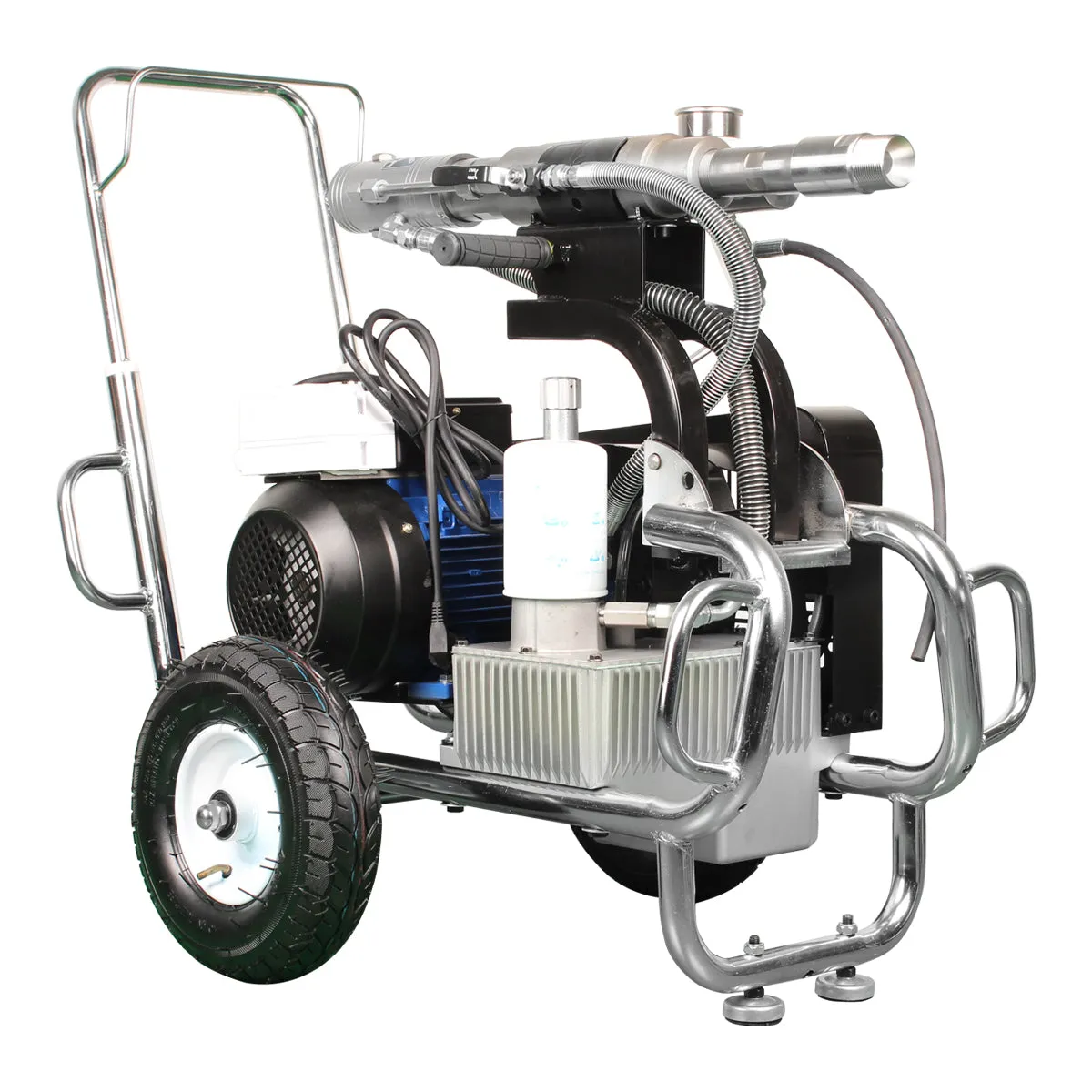

Electric Power

Motor Power	4000W
Voltage / Frequency	220V or 380V / 50Hz
Max. Working Pressure	3000 PSI
Max. Flow Rate	12.0 L/min
Max. Tip Size	0.051″
Max. Guns Supported	2
Max. Hose Length	100M
Pressure Control Type	Hydraulic Mechanical Control
Pump Material	Severe-Duty Stainless Steel with Hardened Alloy
Frame Configuration	Heavy-Duty Cart (Hydraulic)
Net / Gross Weight	95 kg / 134.5 kg
Package Dimensions	0.80 m³

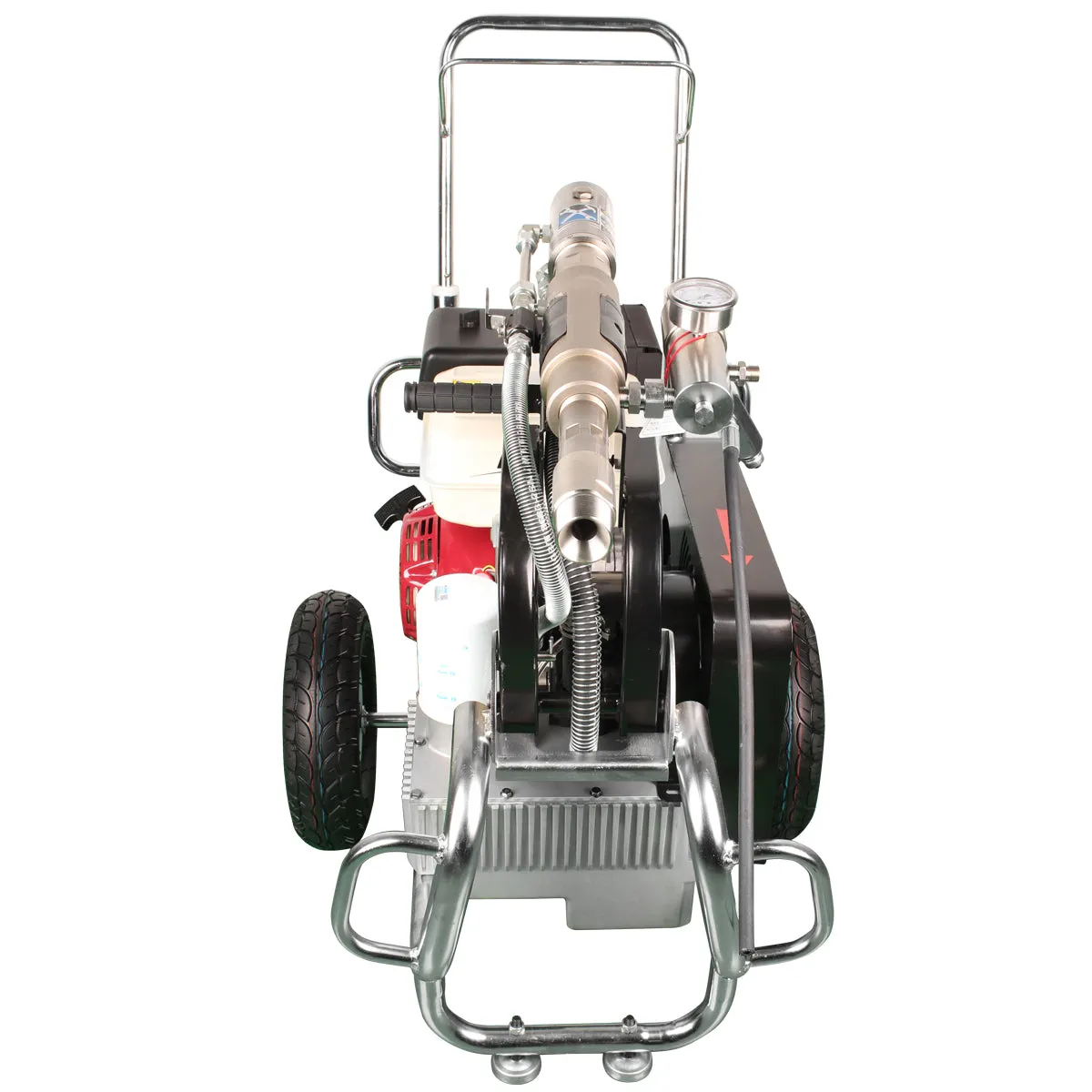

Gas / Petrol Power

Engine Power	9 HP
Fuel / Engine Type	Gasoline (Standard) / Diesel (Custom Build)
Max. Working Pressure	3000 PSI
Max. Flow Rate	12.0 L/min
Max. Tip Size	0.051″
Max. Guns Supported	2
Max. Hose Length	100M
Pressure Control Type	Hydraulic Mechanical Control
Pump Material	Severe-Duty Stainless Steel with Hardened Alloy
Frame Configuration	Heavy-Duty Cart (Hydraulic)
Net / Gross Weight	95 kg / 134.5 kg
Package Dimensions	0.80 m³

Premier Source Factory OEM/ODM

GuTuBao, the leading manufacturer of airless sprayers in China, manufactures 100% in-house core components including motors, precision pumps, and PCBs.

200+ CNC Machining Centers

Our 110+ dedicated employees and 30+ R&D technicians utilize over 200 CNC processing equipment to efficiently process bulk orders.

Lab-Grade Precision Control

German Carl Zeiss CMM, Mitutoyo metrology instruments, and Olympus spectrometers validate position repeatability to within a 0.01mm tolerance.

100% Full Inspection Policy

All sprayers are subjected to a 100% full inspection and 30-minute high-pressure load test. A 4-hour continuous load and aging test for PCBs is a crucial element in the efficiency and life-expectancy of the system.

Airless Sprayer Wholesale & Dealer FAQs

Everything you need to know about importing, strategic OEM services, and our lab-grade quality control processes.

As a source manufacturer, we offer scalable MOQ policies tailored for global distributors. We support low minimums for initial trial orders and can arrange rapid air freight for your engineering team’s sample validation (shipping costs apply). For regular bulk procurement, we recommend mixed-container shipments to maximize your supply chain efficiency and profit margins.

Absolutely. Because we self-manufacture 100% of core mechanical components—including our smart PCBs, as well as precision pumps and motors machined in-house using USA Haas & Japan Brother CNC centers—we maintain absolute control over R&D and customization. We provide strategic OEM/ODM services for global brands, including exclusive tooling, custom colorways, and localized configurations, all strictly protected by a comprehensive NDA.

Our quality control is lab-grade. Incoming raw materials are analyzed by Olympus Spectrometers, and component precision is verified by German Carl Zeiss CMM. We reject random sampling. Every unit undergoes a strict Two-Stage 100% Full Inspection: a mandatory 4-hour aging test for all smart PCBs to ensure electronic stability, followed by a 30-minute continuous high-pressure load test for the fully assembled machine. The entire series is fully certified under the CE Machinery Directive.

Yes. We understand that in commercial projects, downtime kills profit. The fluid section utilizes standard, high-durability components. As your long-term supply chain partner, we maintain a massive and stable inventory of all consumable parts, spray guns, and hoses at factory-direct prices, ensuring your aftermarket business remains highly profitable.

Yes. While standard off-grid configurations feature 9HP or 13HP heavy-duty gasoline engines, GuTuBao operates as a true source factory with complete in-house R&D capabilities. We provide custom heavy-duty diesel engine integrations tailored for extreme marine, shipyard, and specialized industrial environments. Request a technical consultation with our engineering team to discuss your bespoke diesel OEM/ODM configurations.

GuTuBao two-stage quality control platform featuring 4-hour PCB aging and 30-minute high-pressure load tests for airless paint sprayers, ensuring reliable OEM contract manufacturing.

ZERO DEFECT COMMITMENT

Two-Stage Rigorous Testing

Mandatory 4-hour PCB electronic aging and a 30-minute high-pressure load test for every single unit.

Strategic OEM Partner

Delivering industrial-grade precision and exclusive private labeling, protected by strict NDAs to elevate your brand authority.

Partner with the Source Factory

In-house USA Haas CNC center machining connecting rods with sub-micron precision at GuTuBao factory.

100% Self-Manufactured Core Components

Ensuring unparalleled quality and control over every part.

Processed by USA Haas Machines

Industrial-grade precision from world-class American technology.

Verified by German Zeiss CMM

Micro-precision inspection guaranteed by German metrology.

USA Machines + German Inspection + Chinese Efficiency = GuTuBao Quality
