The Ultimate Guide to Sizing Fireproofing Spray Equipment for High Solids
When sizing fireproofing spray equipment for high solids and heavy-duty applications, contractors must prioritize three critical physical parameters to overcome the immense shear force of intumescent paint:
- First, a high-torque motor exceeding 3500W is mandatory to maintain sustained mechanical force without stalling.
- Second, the system requires a massive fluid displacement rate of over 5.0 L/Min to guarantee consistent material transfer and support dual-gun operation.
- Finally, an operating pressure of 3000 to 6000 PSI is non-negotiable for achieving proper atomization of highly viscous epoxies and avoiding premature pump failure.
Standard commercial units lack the structural integrity for these demands. Our engineers configure heavy-duty sprayers specifically to handle these extreme metrics, ensuring maximum uptime and precise film build on structural steel projects.

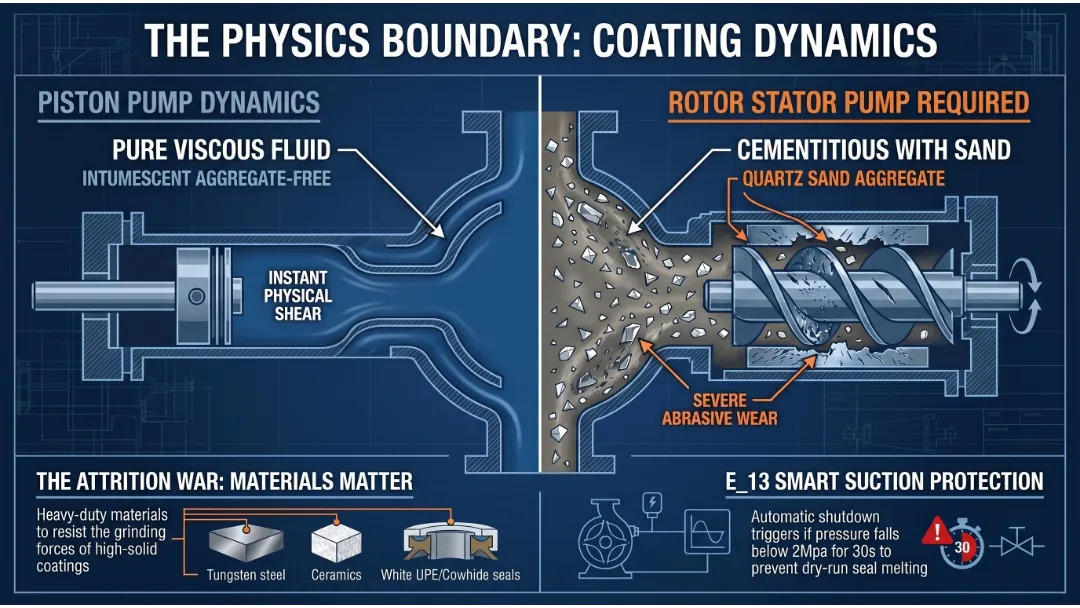

The Physics Boundary: Intumescent vs. Cementitious Fireproofing
Our engineers highly recommend that before purchasing any equipment, you must verify the material’s physical properties. A rigid physics boundary exists between coatings.

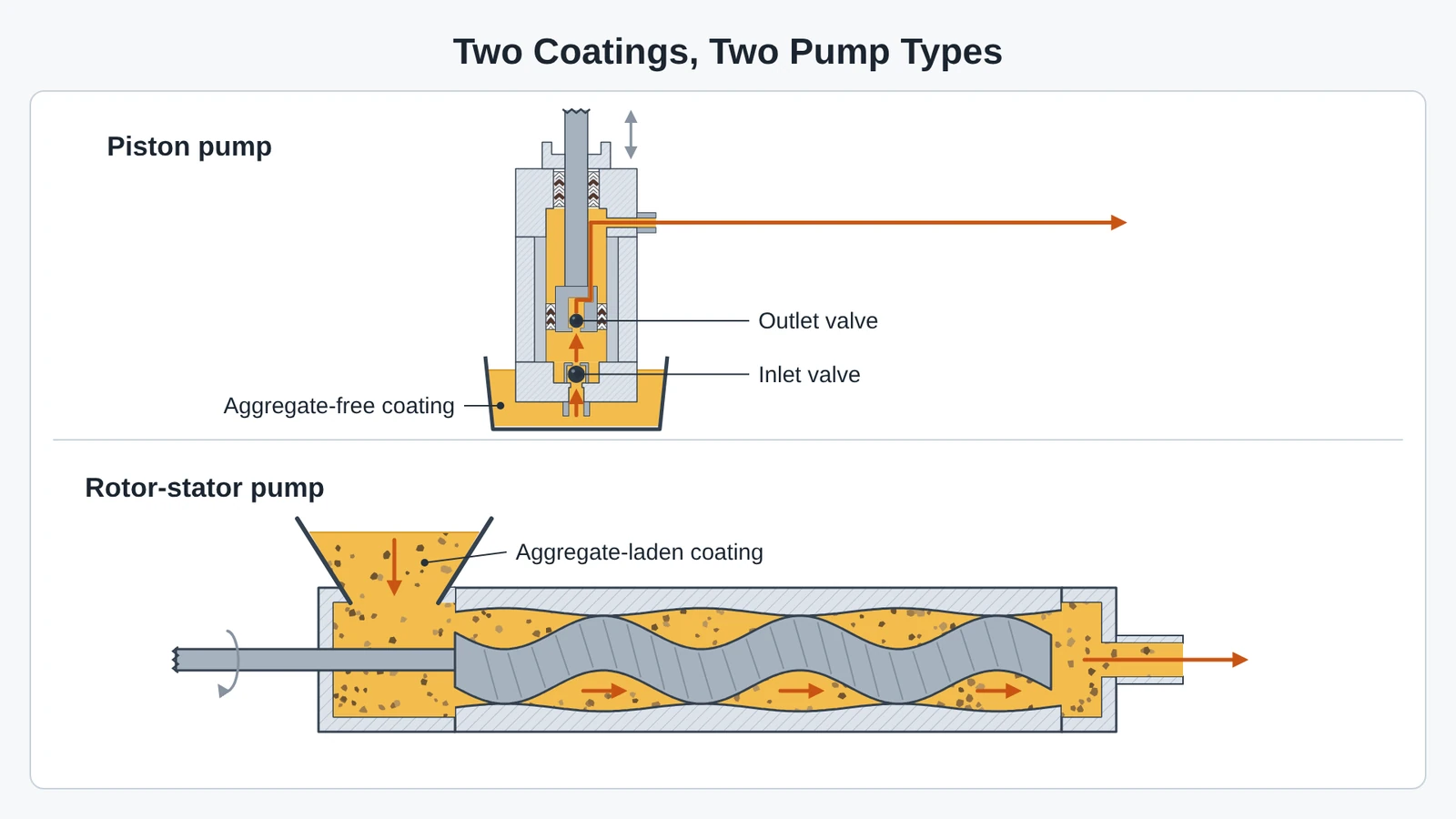

- For pure, highly viscous intumescent fireproofing, our reciprocating piston fluid section perfectly delivers optimal atomization.
- However, if you are applying cementitious fireproofing containing quartz sand or aggregate, you must use fireproofing and stucco rotor stator pumps.
Standard piston pumps cannot pump rocks. Attempting to run aggregate through a piston pump will destroy it. We design heavy-duty sprayers for pre-mixed 2K coatings strictly for aggregate-free, high-solid epoxies. Know your coating before deploying industrial coating equipment.
The Attrition War: Fighting Wear with Micro-Precision Materials
In the GUTUBAO CNC laboratory, we observe the brutal attrition war between thick coatings and pump components. High solids aggressively grind metal. To combat this, we engineer an ultra-durable ceramic/stainless fluid section.
Our intake and exhaust valve seats are forged from Tungsten steel and Imported Cemented Carbide. The sealing architecture features a White UPE Sealing ring and Washer, stacked tightly with Cowhide.
Our hard-chrome plated reciprocating rod operates within a Nano-Ceramic upgraded cylinder. We utilize American Haas synchronous dual-hole boring technology to ensure 0.01mm precision, eliminating friction points and drastically extending lifespan. This precision helps prevent high solids paint pump failure.
Defeating the “Dry-Run” Death Spiral in High Viscosity Applications
Running dry is the fastest way to destroy high-pressure equipment. When pumping thick fireproofing, poor suction leads to a dry-run death spiral. The piston grinds dry, generating extreme heat that melts seals in minutes.
We engineered a proprietary automatic low-fluid pump shut-off to terminate this cycle. Our E_13 smart suction protection algorithm enforces a strict physical red line:
- if the pressure drops below 50% of the set value,
- absolute pressure falls under 2Mpa,
- and the motor idles for over 30 seconds,
the motherboard immediately cuts power. This absolute intervention stops operator errors and protects the investment.
The Fireproofing Spray Equipment Sizing Matrix
Select your equipment based on fluid displacement and project scale. Do not under-size your pump. The following matrix details our high-ROI configurations.
| Model | Power Source | Max Flow | Max Tip | Key Capability |
|---|---|---|---|---|
| GTB-1095A | 3500W Electric | 5.0 L/MIN | 0.017~0.035in | Commercial dual-gun operation |
| GTB-980 | 4000W Electric | 8.0 L/MIN | 0.025~0.043in | Heavy-duty high-build spraying |
| GTB-970 | 4000W / 9HP Gas-Hydraulic | 12-15 L/MIN | Multiple | Industrial extreme output |
| GTB-833 | 8500W / 13HP Gas-Hydraulic | Up to 60 L/MIN | Multiple | Nuclear-grade mud-flow capacity |
Breaching the Pressure Ceiling: The 6000 to 9000 PSI Advantage
Standard 3000 PSI machines fail to atomize 100% volume solids epoxies. You need extreme physical shear force. Our heavy-duty hydraulic direct-drive sprayers shatter the pressure ceiling.
The GTB-970 high-pressure edition outputs a massive 6000 PSI, requiring specialized hoses rated for 40MPa. For the absolute thickest protective coatings, the GTB-833 high-pressure edition generates a terrifying 9000 PSI.
These extreme-pressure hydraulic sprayers are built specifically to tear through heavy anti-corrosion materials that choke lesser machines.
Source Factory Power: 100,000 Units Capacity and OEM Capabilities

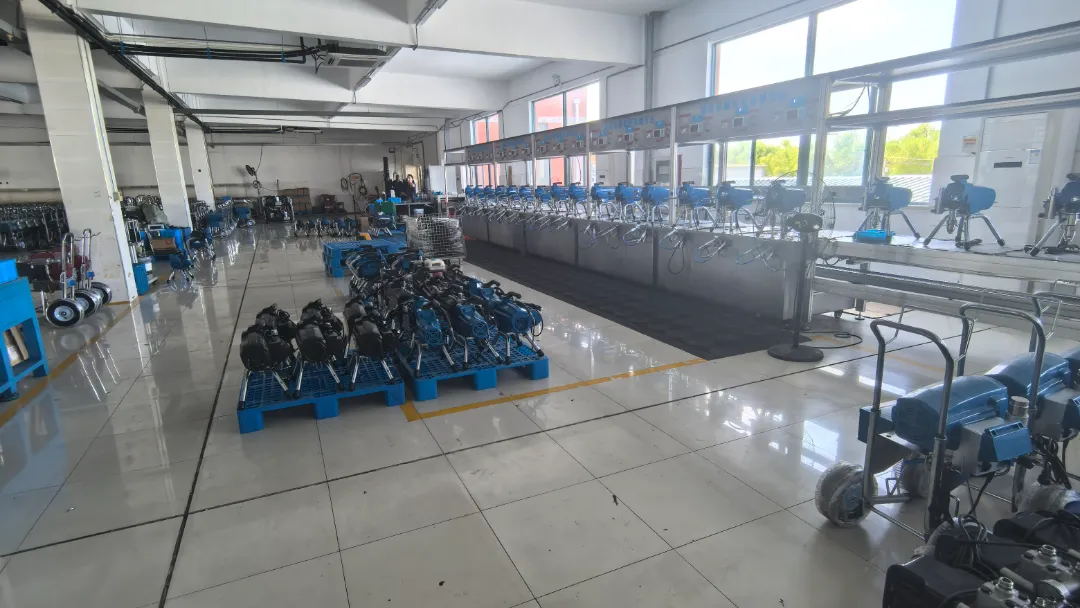

GUTUBAO delivers decades of proven commitment to professional contractors. As a global source factory, we operate with a 100,000-unit annual capacity.
Every mechanical component undergoes strict Carl Zeiss CMM 0.01mm 3D measurement. Before shipping, each machine is forced through a 30-minute continuous full-load wet test at maximum pressure.
We supply OEM customized solutions for global distributors. Our highly cost-effective equipment easily meets the rigorous hardware demands of heavy-duty anti-corrosion standards. Partner with GUTUBAO for unmatched industrial performance.
