How to Fix Fuzzy Edges: The Ultimate Heavy-Duty Airless Striping Machine Guide for Road & Airport Markings

An industrial airless striping machine is a heavy-duty system designed for applying highly viscous waterborne paint on airport runways, municipal roads, and commercial parking lots.

As a premier airless paint sprayer manufacturer, we engineer these units to deliver sharp lines with zero-drip precision.

Fluid output capacities range from a compact 2.8 L/min up to a massive 12.0 L/min, powered by either a robust 9HP gas engine or a 2200W brushless motor.

The systems achieve an extreme pressure of 23Mpa (3300 PSI), forcing immediate and consistent atomization. This eliminates pressure drops and ensures maximum transfer efficiency. Our equipment sustains continuous operation for demanding contractors, laying down perfect edges without fail.

The Nightmare of Fuzzy Edges: Why highly cost-effective Road Line Painting Equipment Fails

Our engineers understand the frustration municipal contractors face in commercial parking lots or airport runways. Pressure drops cause:

• Fuzzy edges
• Thin spots
• Unacceptable dripping

Fluid leakage results from the imperfect fit between components in the pump assembly. If your lines get narrow on the edges, inferior metal tolerances are the culprit. In our facilities, we enforce a strict ±0.01mm extreme pressure tolerance.

This precise metal-to-metal sealing enables the pump to instantly shut off the flow of thick airport runway painting waterborne paint. It ensures consistent paint thickness from edge to edge, creating clean, laser-sharp lines with absolutely no fuzzy edges.

We utilize GUTUBAO reversible precision tips to guarantee this flawless execution.

Flow Rate and Power Dynamics: Sizing Your Airless Striping Machine

We highly recommend carefully sizing your equipment to match the job severity. A field line painter handling a parking lot requires different power than one marking highways.

A combination of pressure and pump flow determines the actual application rate. You must ensure the professional line striping machine handles the required liters per minute without bogging down.

Slower cycling on a larger fluid section extends pump life. Here is the operational matrix mapping our entry-level units to heavy-duty 12.0 L/min systems:

Precision Machining: The Zero-Drip Secret in Our CNC Laboratory

In the GUTUBAO CNC laboratory, we treat fluid sections with microscopic scrutiny. Rotary lobe pumps or poorly machined parts utilize sensitive seals that fail under load.

Our reciprocating piston fluid section operates differently. We utilize Japanese Brother SPEEDIO for one-step turning and American Haas synchronous dual-hole boring technology.

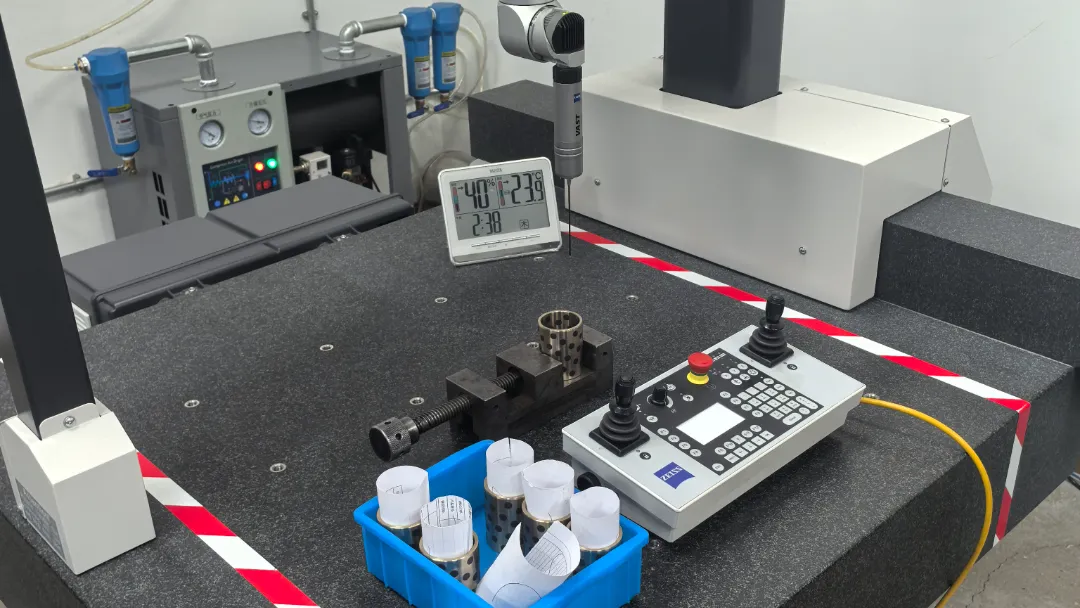

Every core aluminum pump body undergoes rigorous inspection under the German Carl Zeiss CMM, verifying our strict ±0.01mm extreme pressure tolerance.

This precision machining is the underlying physical truth of our zero-drip shut-off. The spray gun acts as the absolute on/off valve, backed by an industry-best pump performance that ensures a professional finish every single trigger pull.

Electric vs. Gas Striping Equipment: Matching the Power Baseline

Selecting the power source dictates your operational baseline. A combustion engine provides raw power but can generate vibrations.

For the largest, most demanding highway projects, a 9HP gas-powered unit like the GTB-970H remains the supreme choice, delivering unmatched flow for wide applications.

Conversely, indoor commercial facilities demand emission-free, low-vibration performance. Our GTB-700H utilizes a totally enclosed fan-cooled brushless DC motor rated at 2200W (DC60V).

Powered by a heavy-duty lead-acid battery, this 83KG unit achieves 20Mpa pressure, delivering a 3-hour continuous runtime capable of striping 6000 meters on a single charge.

Double Guns Configuration for Airport Runway Painting Systems

The spray width of a single spray gun cannot produce the 60 cm to 90 cm wide lines required for airport runways. For these applications, you must deploy a double guns configuration.

Engaging multiple guns demands immense flow; without it, the spray pattern collapses. We engineer our systems to provide massive 4.0L to 12.0L/MIN flow rates to support multi-gun setups.

The two guns are positioned to enable a partial overlap, producing one homogenous wide line. The GTB-1095HG sustains dual 0.019in tips, while the heavy-duty GTB-970H effortlessly drives dual 0.029in tips.

Proper gun alignment ensures perfect edge quality every time.

Over-Engineering Safety: The 30-Minute Extreme Pressure Protocol

Our quality control department rejects random sampling. Every GUTUBAO machine is 100% tested to ensure maximum safety and reliability.

Under our 30-minute extreme pressure protocol, the pump is pressurized to 150% of its designed working pressure. During this 30-minute continuous full-load test, we monitor for any micro-drops that would indicate a fault in the fluid section.

We strictly adhere to the CE Machinery Directive, backed by EN ISO 12100:2010 safety standards.

This over-engineered approach builds an international fortress of reliability, guaranteeing catastrophic failures are eliminated before any unit leaves our facility.

100,000 Units Annual Capacity: Partner with the Premier OEM Factory

Equipment selection dictates job success. Partnering with the right wholesale airless sprayers supplier eliminates budget overruns and schedule delays. We are not just an assembler; we are the premier source factory.

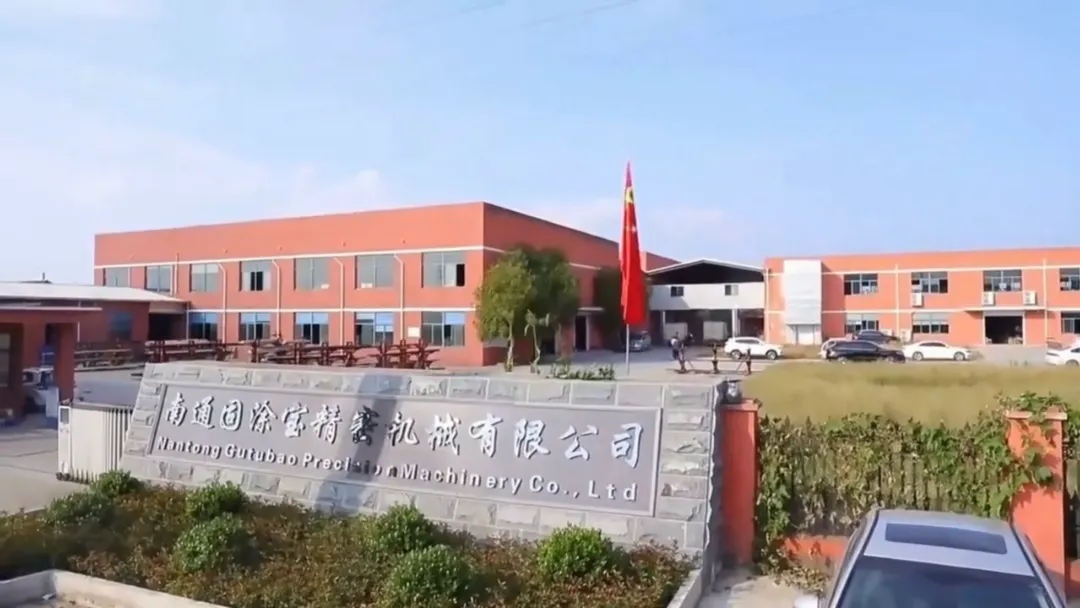

Operating an 18,000 square meter production base, GUTUBAO possesses an annual throughput capacity of 100,000 units.

We offer NDA-protected White Label OEM/ODM manufacturing, including customized chassis and multi-gun system configurations. Backed by decades of proven commitment to industrial applicators, we deliver the industry’s strongest performance.

If you seek a manufacturing partner for bulk procurement, we have the scale, precision, and support to scale your brand.
