Decoding the paint sprayer light: Smart PCB Fault Codes & Diagnostics
When your paint sprayer light begins flashing erratically on the jobsite, panic sets in immediately. Contractor downtime translates directly to lost revenue, paint drying in fluid lines, and missed deadlines. Decoding these indicators to quickly understand the underlying electrical or mechanical failure is critical to getting your equipment back online without unnecessary delays.
The Pain of Downtime: What a Flashing Indicator Means for Your Jobsite
Downtime involves several critical costs:
- Labor costs of employees whose work is delayed.
- Indirect labor costs from supervisors who address the issue.
- Lost production, and lost customers from inability to meet time expectations.
If crews frequently need to wait for shipment and installation of replacement parts, the labor cost due to unforeseen downtime, as well as the cost of lost customer goodwill, need to be considered.
In the event of mechanical failures, the system reacts automatically:
- Pump failures due to mechanical issues such as seal degradation, bearing failure, or impeller damage trigger an automatic shut-off.
- This protects the system from thermal overload or excessive pressure.
- It mitigates severe motor overload and voltage instability burning risks.
ProGuard prevents electrical damage from extreme jobsite power conditions.
If a pressure imbalance is detected by the system, it will automatically shut down to prevent the operator from spraying bad coating.
The operator also receives a message indicating the reason for the shutdown, so the problem can be corrected.
For over night shutdown, stop pump at bottom of its stroke to prevent fluid from drying on exposed displacement rod and damaging throat packings.
Waiting to service machinery until it is inoperable often results in crisis situations that could have been avoided by more frequent checkups.
As metallic particles pass through a circulation system, they are deformed in particular components (usually a back pressure regulator or pump). Proper Lifecycle Support & Maintenance is essential to mitigate this.
Diagnosing E_4: What It Means When Your Paint Sprayer Light Signals Pressure Sensor Failure
The control board is detecting multiple voltage surges.
Locate a good voltage supply to prevent damage to electronics.
Linear position sensors and pressure sensors on the pump are used to measure pump rod displacement and the fluid pressure coming out.
But control is not receiving motor position sensor signal.

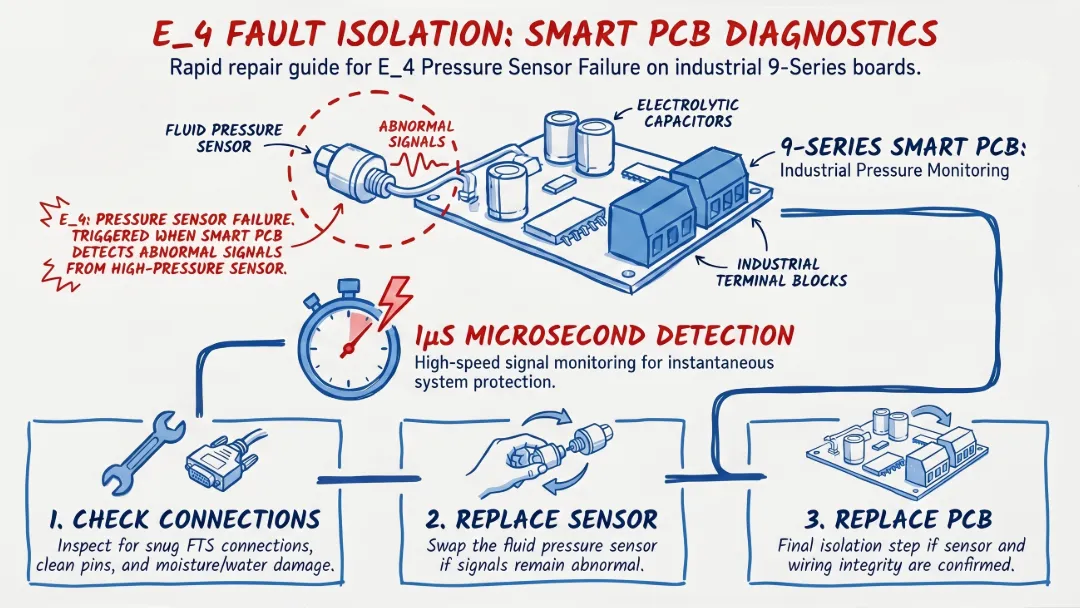

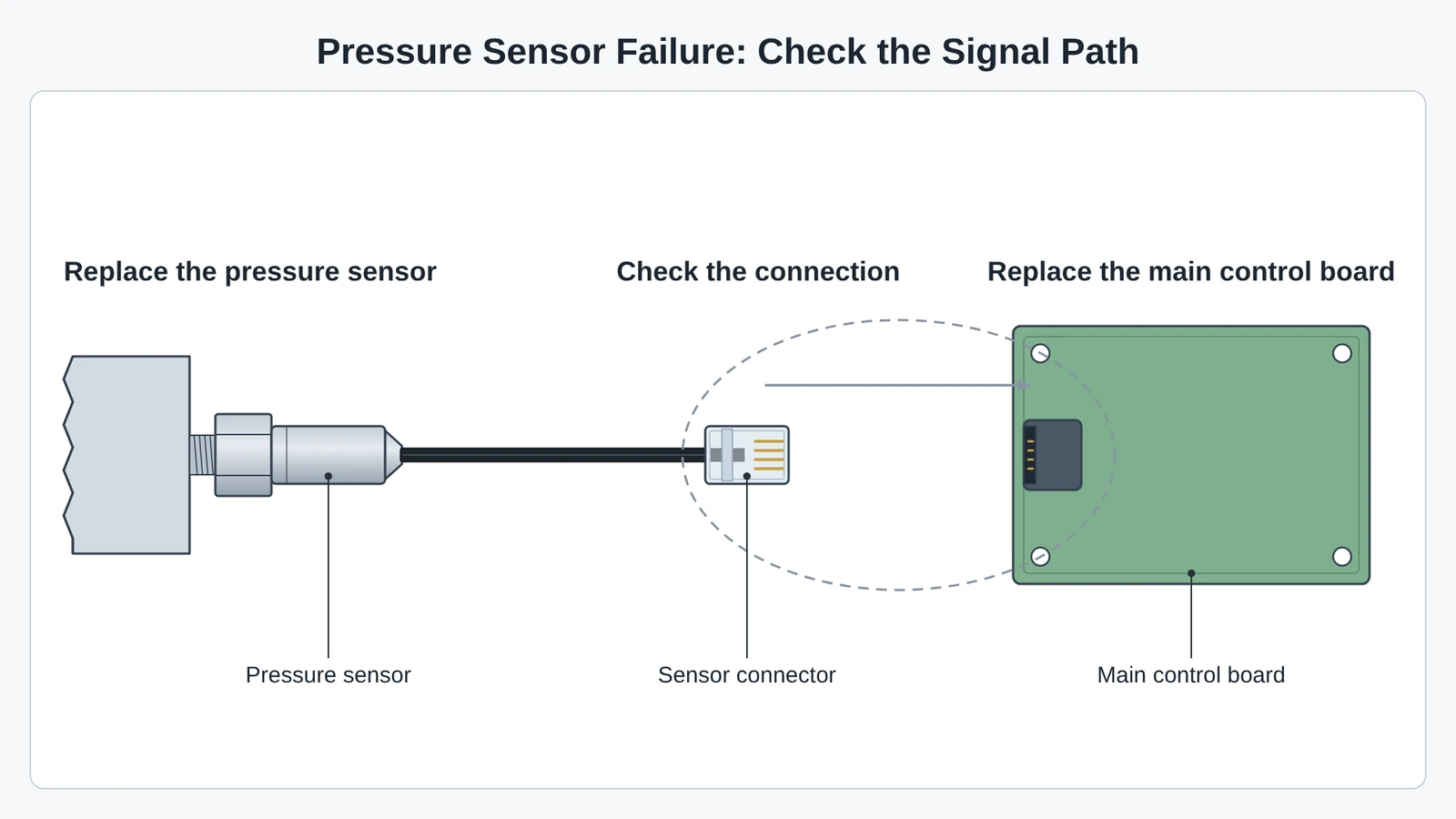

E_4 (Pressure Sensor Failure) means the pressure sensor detects abnormal signals. Action required:
- Check connections.
- Replace the sensor.
- Replace the main PCB.
Disconnect the motor control and inspect for damage at the connectors.
Focus on faulty FTS connections, verifying that all FTS connections are snug and that pins of connectors are clean.
Inspect the sensor for water; if the sensor is wet, let it dry for 24 hours.
Resolving E_7: Identifying High-pressure Pump Body Leakage
If material leaks and runs over the side of the wet cup, tighten the wet cup enough to stop leakage.
If a poppet valve or valves are leaking constantly though the poppet muffler exhaust, take these steps:
- Stall air motor under load in the middle of the stroke.
- Remove top cover and check for leak through poppet muffler on top cap plate.
- Check for leak through poppet muffler in bottom motor cover.
E_7 (Leakage in High-pressure Pump Body) indicates internal or external leakage in the high-pressure pump.
Action required: physical maintenance or replacing the pump body assembly.
The first action upon discovering a leak is to ensure that the pump is torqued to the manufacturer’s recommended rating.
Materials relax over time – often referred to as cold flowing – which can cause sealing surfaces to loosen and create leak paths.
100% O-ring sealed fittings prevent leaks, being O-ring sealed to eliminate leaks.
If fluid is leaking from pump outlet rupture disk, replace the rupture disk with a new one; do not replace with a pipe plug.
Troubleshooting E_13: Suction Protection and Motor Idling
The automatic low-fluid pump shut-off automatically prevents pump damage if material supply is too low.
It prevents damage by shutting off the pump when it’s time to refill.
When your sprayer pump is not working and the paint sprayer light indicates an E_13 fault, it is often because material supply is exhausted or you have a clogged suction.
Supply Pump Shutdown automatically shuts down when you run out of material, preventing air from entering the system that can cause pressure drop issues.
Running dry is by far the main reason these pumps fail.
Fluid always has to be pumped to lubricate the contacting surfaces between rotor and stator.
The automatic low-fluid pump shut-off prevents dry pumping damage, automatically shutting the pump down if the material supply is too low.
E_13 (Suction Protection) triggers when pressure is below 50% of the set value and <2Mpa, causing the motor to idle for over 30s before forced shutdown.
Action required: refill coating, reset potentiometer to zero, or check suction tube for air leaks.
When a pump is run in a deadheaded condition for too long, the excess heat damages the expensive seals and reduces pump life, so ensure to refill the hopper and the prime pump.
The Smart PCB Fault Code Diagnostic Matrix
| Fault Code | System Implication | Trigger Condition | Required Action |
|---|---|---|---|
| E_4 | Pressure Sensor Failure | Abnormal sensor signals detected | Check connections, replace sensor, or replace main PCB |
| E_7 | High-pressure Pump Body Leakage | Internal or external leakage occurs | Physical maintenance or replace pump body assembly |
| E_13 | Suction Protection | Pressure <50% set value & <2Mpa, motor idles >30s | Refill coating, reset potentiometer, or check suction tube leaks |
Beyond the Codes: When the Sprayer Pump Not Working is a Mechanical Issue
Close tolerances between gears lead to material wear, particularly when solids or abrasives are used.
Material slippage caused by worn-out gears reduces the accuracy of pressure consistency, which are often crucial in industrial finishing processes.
Clearances at the gears and across the faces of gears are the largest contributors to internal leakage, which increases as the internal parts wear through usage.

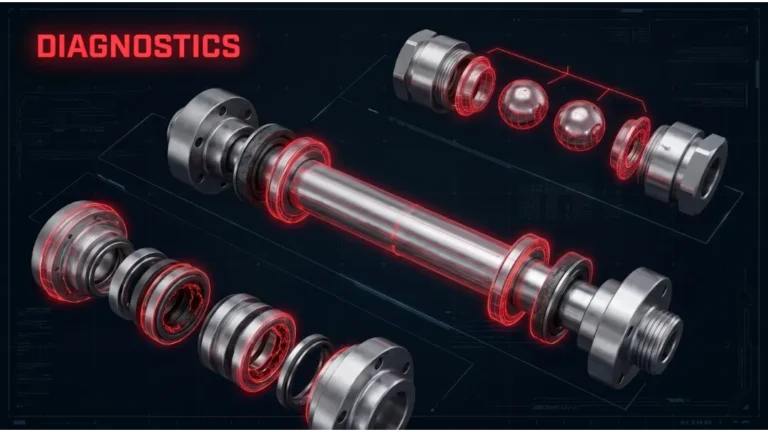

If the valve body is cracked due to screws being over-torqued:
- Inspect piston valve for damage and proper orientation.
- Replace the piston packings and piston if necessary.
- Service the intake valve ball check.
Proper paint machine repair requires understanding these mechanical dynamics.
Microsecond pressure sensor detection and extreme pressure detection rely entirely on precise mechanical boundaries.
An abrasion-resistant composite piston rod extends pump rod life by 3X.
Oversized passages allow for high velocity flow to rotate the piston for even wear.
Why Manufacturing Precision Eliminates False Alarms

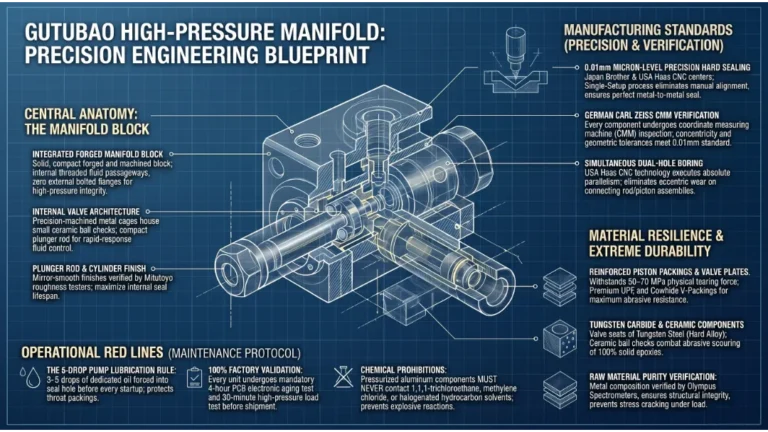

A precision-machined, conical surface on the fluid tip provides a seat for the precision-machined ball segment of the air cap.
Over 200 CNC machining centers and CNC lathes guarantee this consistency.
The system features a 100% factory-tested and field-proven design for peace of mind on any job.
Heavy-duty electric piston pumps have a number of rotating parts that need precision tolerances, which makes them critical to manufacture and maintain.
The GUTUBAO electric pump’s efficient and seal-less design ensures that it is not sensitive to wear and erosion and is easy to repair.
Repeatability in performance at elevated pressure and simplicity in design are two factors that separate GUTUBAO High Pressure Equipment airless pumps and packages.
With the ability to meet a range of volume and pressure requirements, GUTUBAO hydrostatic test pumps offer application versatility to meet the range on pressurized vessels available in the market.
The dead-band reduction software delivers a consistent spray fan without pressure fluctuations at any pressure.
Also referred to as a heavy-duty airless pump, this approach to handling coatings can provide more accurate pressure control.
This happens because the system can monitor the material volume after the fluid has been pressurized to near spray pressure.
Partner with a Premier Manufacturer for Heavy-Duty Customization
Backed by decades of proven commitment, GUTUBAO provides quality components and systems for elevated pressure applications.
Our engineering team works alongside customers to provide A+ technical/engineering support to ensure solutions are tailored to meet custom application requirements and product delivery timelines.
The next time your paint sprayer light flashes on the jobsite, you need equipment you can trust. The GUTUBAO GTB-980 is the pinnacle of smart control, featuring a 4000W brushless motor and a massive 8.0 L/MIN max flow, specifically engineered to handle high-viscosity anti-corrosion coatings. The immense thrust generated by the 4000W output demands the precise microsecond-level safety monitoring only a Smart PCB can provide.
Innovation truly comes through collaboration with GUTUBAO expertise and material supplier partnerships.
We strive to deliver custom solutions backed by our global support network and rigorous quality control.
Over 30 dedicated R&D technical personnel, German Carl Zeiss CMM, Olympus Spectrometer, and a fully intelligent machine testing and aging platform back every unit.
We regularly integrate these heavy-duty pumps with our proprietary valves, fittings, and tubing, when building custom test rigs used to pressure test large diameter pipelines, hose umbilicals, and wellhead control valves.
GUTUBAO utilizes the heavy-duty electric piston pumps within their system design to ensure pressure requirements are met and the testing process can run its course without loss.
As a professional industrial group, we handle outsourced processes such as coating for large industrial groups. It also designs new systems for its customers, and supervises their supply, installation, and start-up. Contact us for wholesale airless sprayers.
