Fix a sprayer pump not working: Internal Leakage Diagnostics & Replacement Guide
In cases of a sprayer pump not working, the motor is powered but nothing comes out of the hose. The displacement pump operates, but output is low on both the upstroke and downstroke. Open or worn piston valves or packings cause internal leakage.
The control board status light blinks repeatedly when the E_7 fault is triggered due to severe leakage in the high-pressure pump body.
When a pump is run in a deadheaded condition for too long, the excess heat damages the expensive seals and reduces pump life, causing operating pressures to drop from 3000 PSI. Check for line obstruction or pack out.
Diagnosing “sprayer pump not working”: The 3000 PSI Pressure Drop Phenomenon
Our engineers observe a sprayer pump not working; the motor is powered but nothing comes out of the hose. The displacement pump operates, but output is low on both strokes.
Open or worn piston valves or packings cause this pressure loss. When a pump is run in a deadheaded condition for too long, the excess heat damages the expensive seals and reduces pump life.
Internal leakage happens, causing operating pressures to drop from 3000 PSI. The E_7 fault triggers specifically to shut down the machine when unrecoverable leakage in the high-pressure pump body is detected. Check for line obstruction or pack out.
The Microscopic Culprits: V-Packing Wear and Valve Seat Scoring
In the GUTUBAO CNC laboratory, we analyze the upper sealing ring, utilizing cowhide V-packings, a tungsten steel rod, and a hardened stainless steel cylinder. Ceramics and stainless steel balls are included for maximum versatility.
When a pump ball is holding pressure across the seat, there will be zinc particles trapped between the ball and seat. The difference in fluid pressure across the ball and seat will strain the solvent out, collecting many zinc particles at that point.
If the balls are the failure point for particular inorganic zincs, we offer ceramics balls that hold up significantly better. The seats are already tungsten steel and are extremely hard.
The smallest wear on the seat allows leakage and quickly starts tearing into a new ball; replace the V-packings and piston if necessary. Service the piston ball check, ensuring seats and balls are always replaced together.
The E_13 Chain Reaction: Intelligent Suction Protection Explained
Our engineers designed the E_13 fault system. Suction protection continually monitors operation, detecting if pressure falls below 50% of the set value and is less than 2Mpa.
It automatically shuts down the pump after 30 seconds of dry running to prevent severe cylinder scoring when paint runs out or if the hose is damaged.
This prevents dry pumping damage and automatically shuts the pump off to protect from thermal overload or excessive pressure. The control board status light blinks repeatedly for the E_13 fault.
Always stop the pump at the bottom of the stroke and keep the wet cup filled with piston rod lubricant.

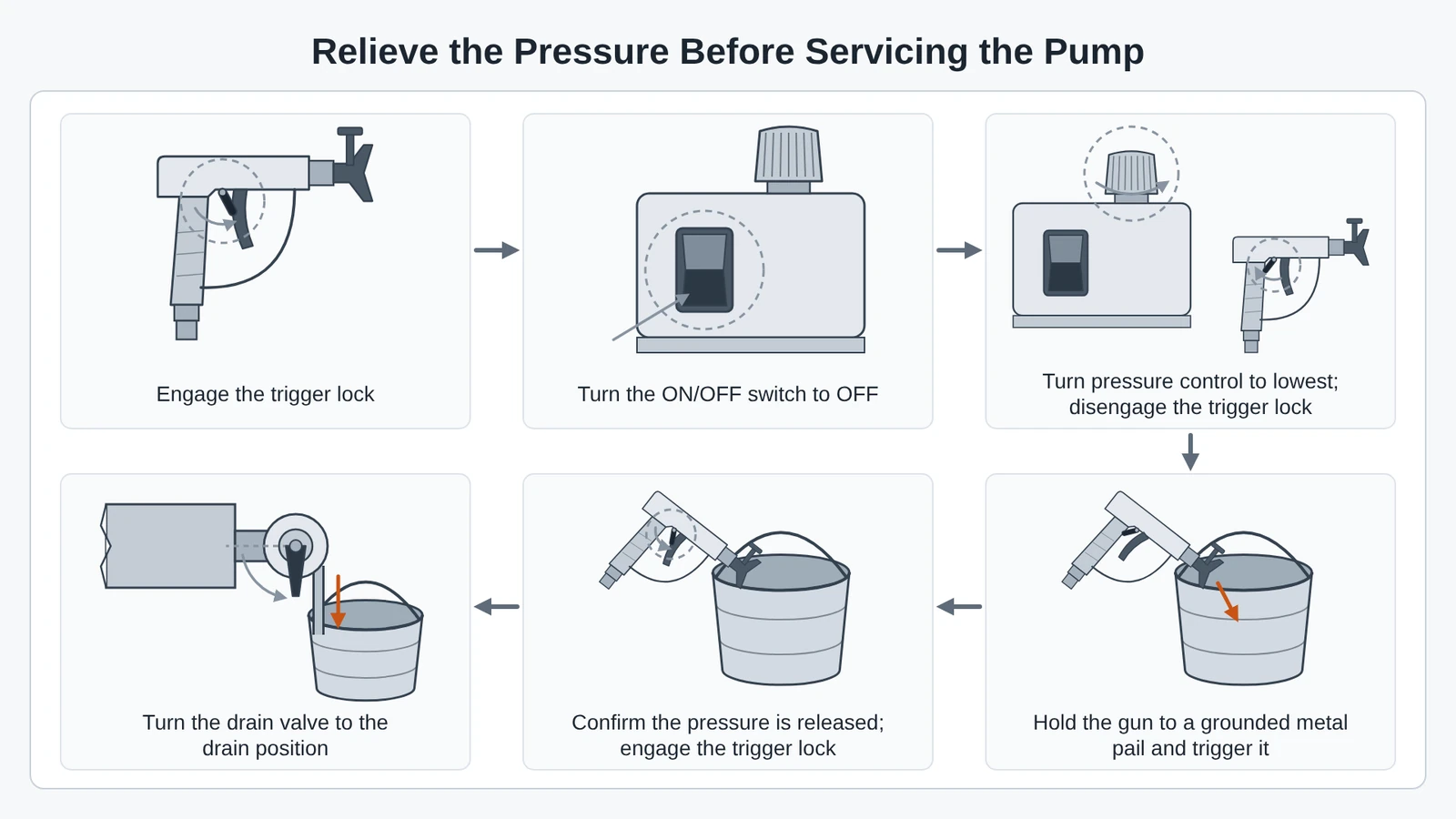

Mandatory 6-Step Pressure Relief SOP Before Teardown
We highly recommend the mandatory 6-step SOP. Warning: This equipment stays pressurized until pressure is manually relieved.
To prevent serious injury from pressurized fluid, splashing fluid, and moving parts, follow these strict steps before cleaning, checking, or servicing the equipment:
- Engage the gun trigger lock.
- Turn the on/off switch to off.
- Turn the pressure control to the lowest setting and disengage the gun trigger lock.
- Hold a metal part of the gun firmly to a grounded metal pail and trigger the gun to release the pressure.
- Verify that the supply pressure gauge reads 0 psi, then engage the gun trigger lock again.
- Turn the prime valve to the Drain position.
Fatal Chemical Trap: Halogenated Hydrocarbon Solvents Warning
Our engineers warn about halogenated hydrocarbon solvents. Using a pump without properly specifying material compatibility can accelerate corrosion and lead to premature pump failure. Over time, materials can degrade, leading to breaches in your containment systems.
For example, 1,1,1-trichloroethane and methylene chloride form strongly corrosive acids when combined with water. Ensure the chemicals handled prevent corrosion. Depending on the fluid pumped, leaks could be hazardous or polluting to the environment.
Avoid equipment rupture by never leaving water or water-based fluid in the pump overnight. Relieve the pressure, but keep halogenated hydrocarbons out of the aluminum pump components to prevent fatal explosions or severe degradation.
Use a solvent-soaked brush to clean the tip, but never soak the entire gun in 1,1,1-trichloroethane.
Piecemeal Repairs vs. Complete Sprayer Pump Replacement Matrix
We highly recommend complete repair and replacement. To keep your jobs moving and on schedule, always ensure you have a genuine GUTUBAO Complete Sprayer Pump on hand, especially when experiencing a sprayer pump not working.
GUTUBAO complete sprayer pumps can be swapped out in just a few minutes with no special tools, eliminating labor costs and costly downtime. Genuine GUTUBAO complete sprayer pumps lead the industry in durability and ease of installation.
Keep a spare Replacement pump for sprayer on hand to minimize field downtime. A fleet-friendly design uses the same wear parts as your other sprayers.
High-quality parts offer years of service, but wear parts eventually need complete replacement. Use genuine GUTUBAO components to maintain peak working order for years to come.
| Metric | Piecemeal V-Packing Replacement | Complete Sprayer Pump Drop-in |
|---|---|---|
| Labor Time | High downtime | Fast and easy on-the-job pump replacement |
| Leakage Recurrence Rate | Wear parts will need replacement over time | Pump swaps in minutes – no tools, pins or parts to lose |
| TCO (Total Cost of Ownership) | Costly downtime | Eliminate labor costs and down time expenses |
Factory Standard: ±0.01mm CNC Tolerance and Composite Seals

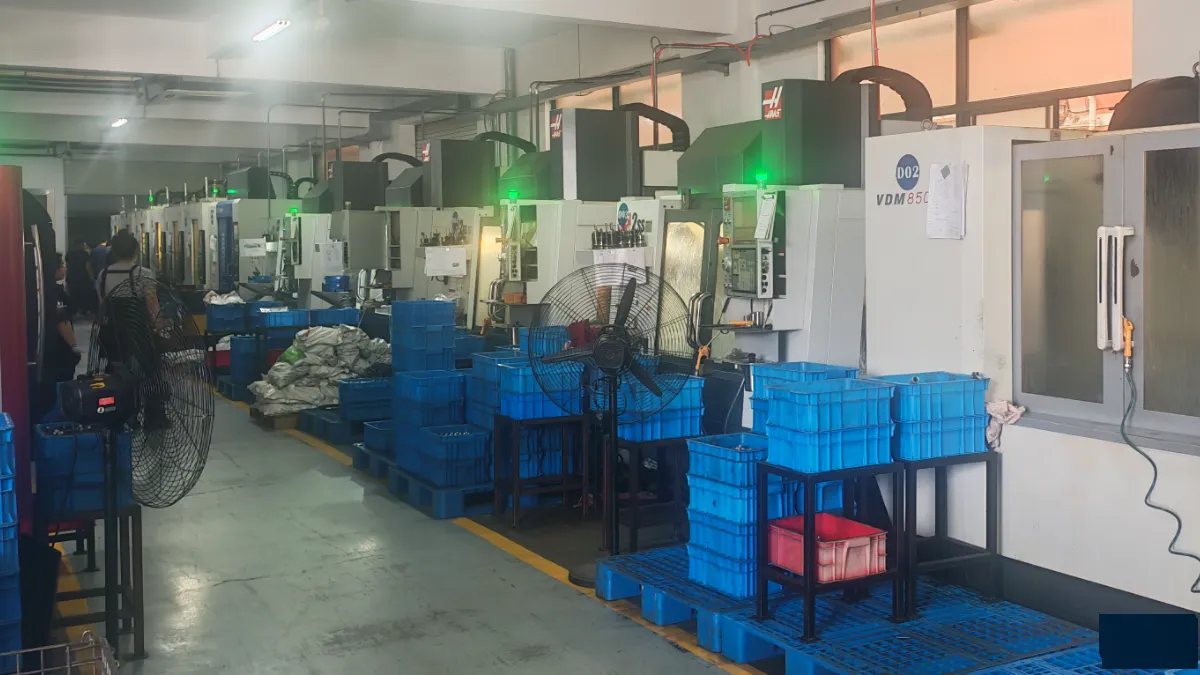

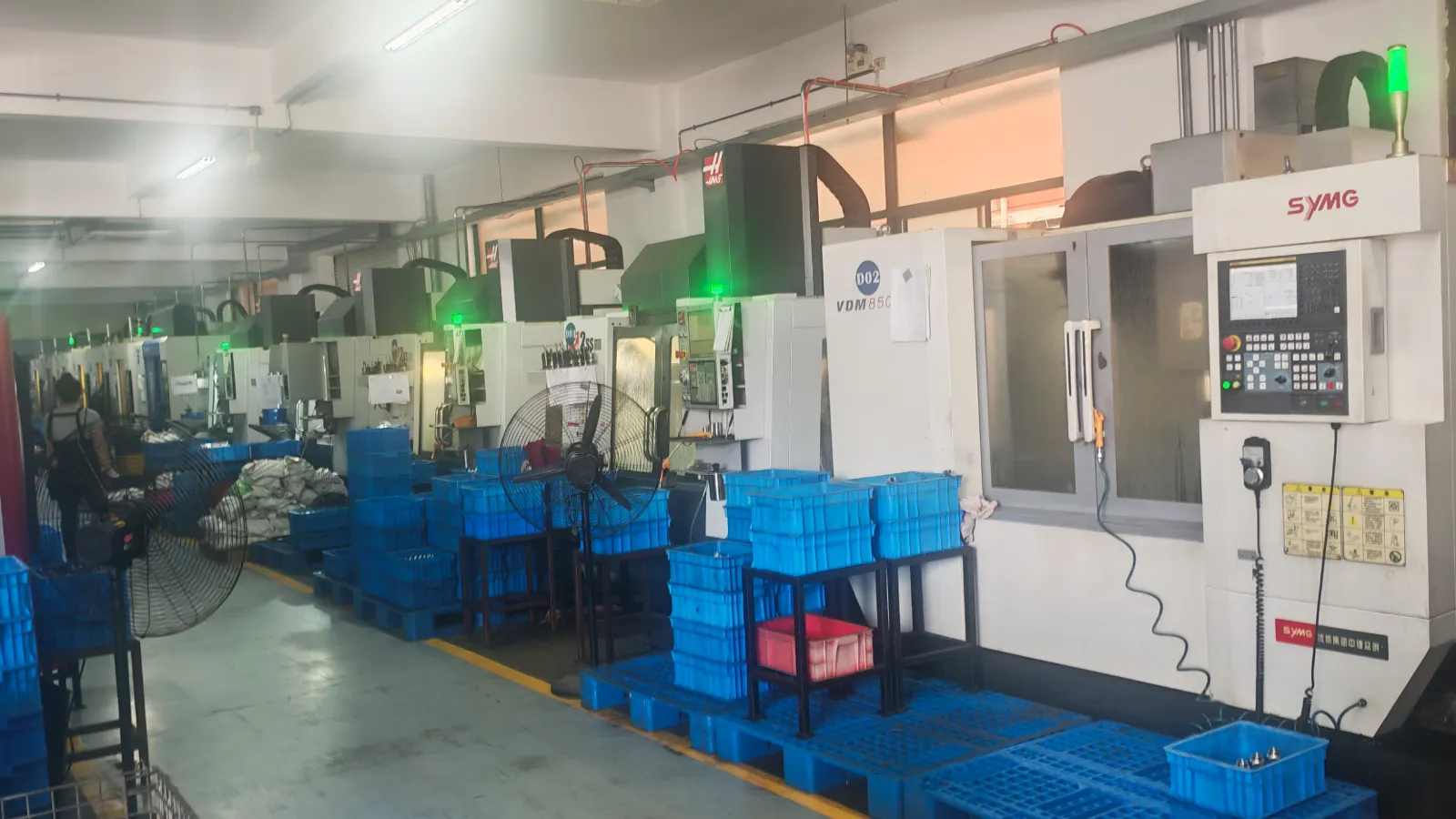

In the GUTUBAO CNC laboratory, we utilize Haas CNC boring and Carl Zeiss CMM testing. Long-life cowhide V-packings, a nano-ceramic rod, and a hardened stainless steel cylinder ensure maximum life and performance, lasting significantly longer between repacks with innovative white UPE technology.

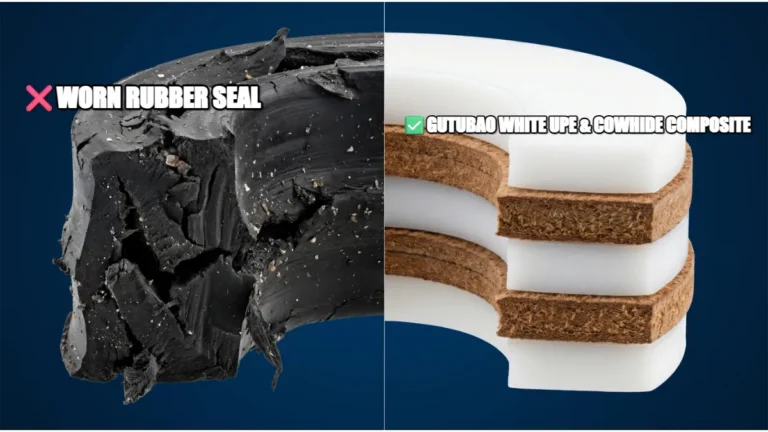

Wetted materials include nano-ceramic, leather, PTFE, white UPE, stainless steel, and tungsten carbide. White UPE and cowhide V-packings provide ultimate durability with most materials.
GUTUBAO‘s exclusive abrasion-resistant composite delivers the most durable wear surface at a precise ±0.01mm tolerance.
Breakthrough rotating reciprocating piston rod technology and hardened steel gears provide smooth, reliable operation and a lifetime warranty. The nano-ceramic rod extends pump rod life by 3X, while oversized passages allow high-velocity flow to rotate the piston for even wear.
Bulk Procurement for Fleet Managers: GUTUBAO OEM & Manufacturing Power
Our engineers operate an 18,000-sqm facility with a 100,000-unit capacity, ideal for in-plant white label OEMs or applicators that spray at high volumes. This increases daily productivity, capable of an extremely high duty cycle.
Ensuring proper EN ISO 12100:2010 safety and EN 60204-1:2018 equipment calibration procedures are followed prior to performing testing is critical to accident prevention and result accuracy.
Every unit undergoes a mandatory 4-hour burn-in test and a 30-min continuous load test. During testing, pressure is measured closely for drops that would indicate faults in the vessel. This guarantees a robust, durable, and long-lasting spray system.
Once the 30-min continuous load test has elapsed with zero leaks found, results are validated and stamped to indicate a “pass” result.
The GUTUBAO white label high-pressure airless pump is a simple, durable machine with impressive performance at an attractive price. Designed to maximize efficiency and quality, GUTUBAO spray systems use the highest-quality components for long-lasting, reliable performance.
