Paint Spray Gun Parts Diagram: A Complete Engineering Anatomy for Professionals
In a 3000 PSI high-pressure environment, understanding every internal screw, packing, and fluid needle valve is the watershed between standard painters and engineering-grade contractors.
We provide this complete engineering anatomy to master equipment lifespan and lower heavy downtime and maintenance costs.
The Hidden Cost of “Spitting”: Why Every Contractor Needs a Paint Spray Gun Parts Diagram
Understanding the parts diagram prevents downtime during 3000 PSI rated pressure and 9000 PSI extreme system pressure (GTB-833 ultra-high pressure version) applications.
Reduced gun spitting is achieved because the repositioned seat is closer to the tip, eliminating 60% of the dead space. Less paint left between needle and tip results in less spitting. The unique needle valve shuts fluid off at the tip for a clean pattern – no spitting.
When a tip wears, the size of the tip orifice increases and the fan width decreases. This forces more passes to cover the surface, resulting in:
- More labor
- Increased overspray
- A substantial waste of paint
Tackle the toughest coatings with a maximum pressure of 6750 psi (465 bar) and flow rates up to 1.5 gpm (5.7 lpm). Operating pressures to 6000 psi (414 bar; 41.4 MPa) are common.
Spraying at lower pressure creates less overspray and makes equipment and tips last longer – saving you money on materials and equipment!
Pressure balance valves give you quick and easy balancing of system pressures. Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern.
Designed to spray high viscosity materials, the high-pressure airless spray guns are rugged, reliable and easy to maintain.
Mastering the Paint Spray Gun Parts Diagram: Layer-by-Layer Breakdown
The spray gun acts as the on/off valve for the material being sprayed. This is the last stop for the fluid before being applied and is a key item to provide a professional finish.
For the fluid transfer system, long life Ceramics or Tungsten steel balls are included for maximum versatility, featuring Small ball/Big ball valve plate designs.
Wetted Material includes:
- Acetal, Aluminum, Ceramics
- Chrome Plating, Leather, Nylon, PTFE
- Stainless Steel, Tungsten Carbide, UHMWPE
- Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
The Trigger Lock features a smooth, lightweight trigger pull with simple, thumb-engaged safety lock. The Modular Needle Design means you simply remove the trigger cross pin and unthread front housing to change out the needle.
The Ergonomic Design form-fitting handles provide maximum control and comfort while spraying. Optimized trigger and lightweight design allows effortless, all-day spraying.
The Mechanical Purge (MP) Gun is designed for superior mixing. The Oversized Fluid Path no-filter design offers minimal restriction and maximum flow. This ensures exceptional durability and long life piston pump operation.

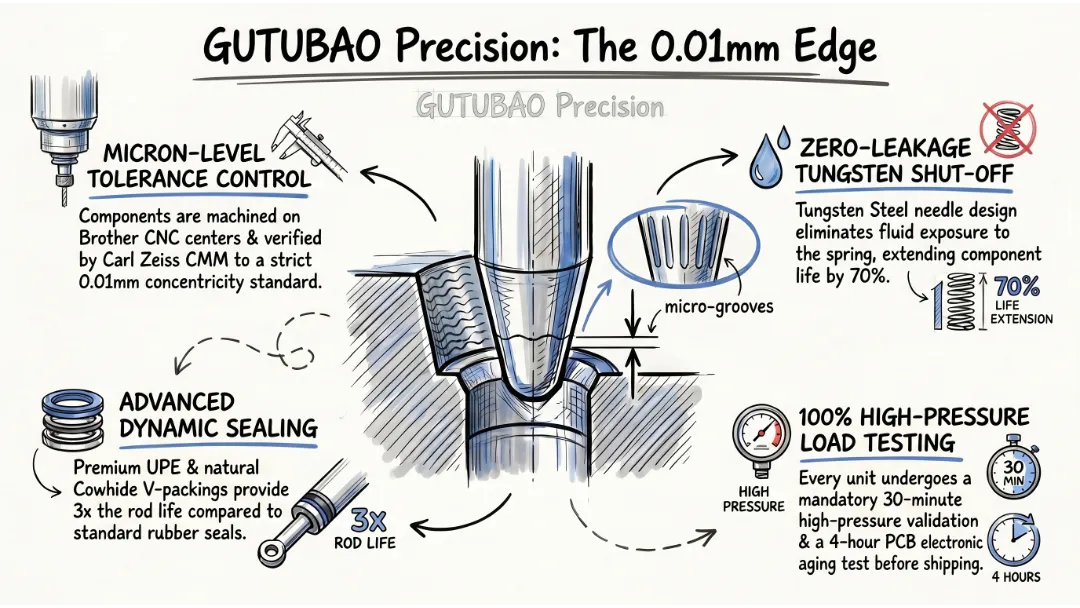

The Heart of the Gun: Fluid Needle and Seat Precision Manufacturing
Cheap aftermarket parts fail at zero leakage. GUTUBAO‘s exclusive enclosed needle patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off.
Fluid pushes on the seal to quickly shut off needle and reduce spitting. Machined on the Brother SPEEDIO S700Z1 CNC and verified by Carl Zeiss CMM with ±0.01mm tolerance control, the exclusive Needle Design factory set needle needs no trigger adjustments.
It is guaranteed for life against breakage. The spring is located outside fluid path for better flow. This provides faster shut-off to reduce spitting of light viscosity material.

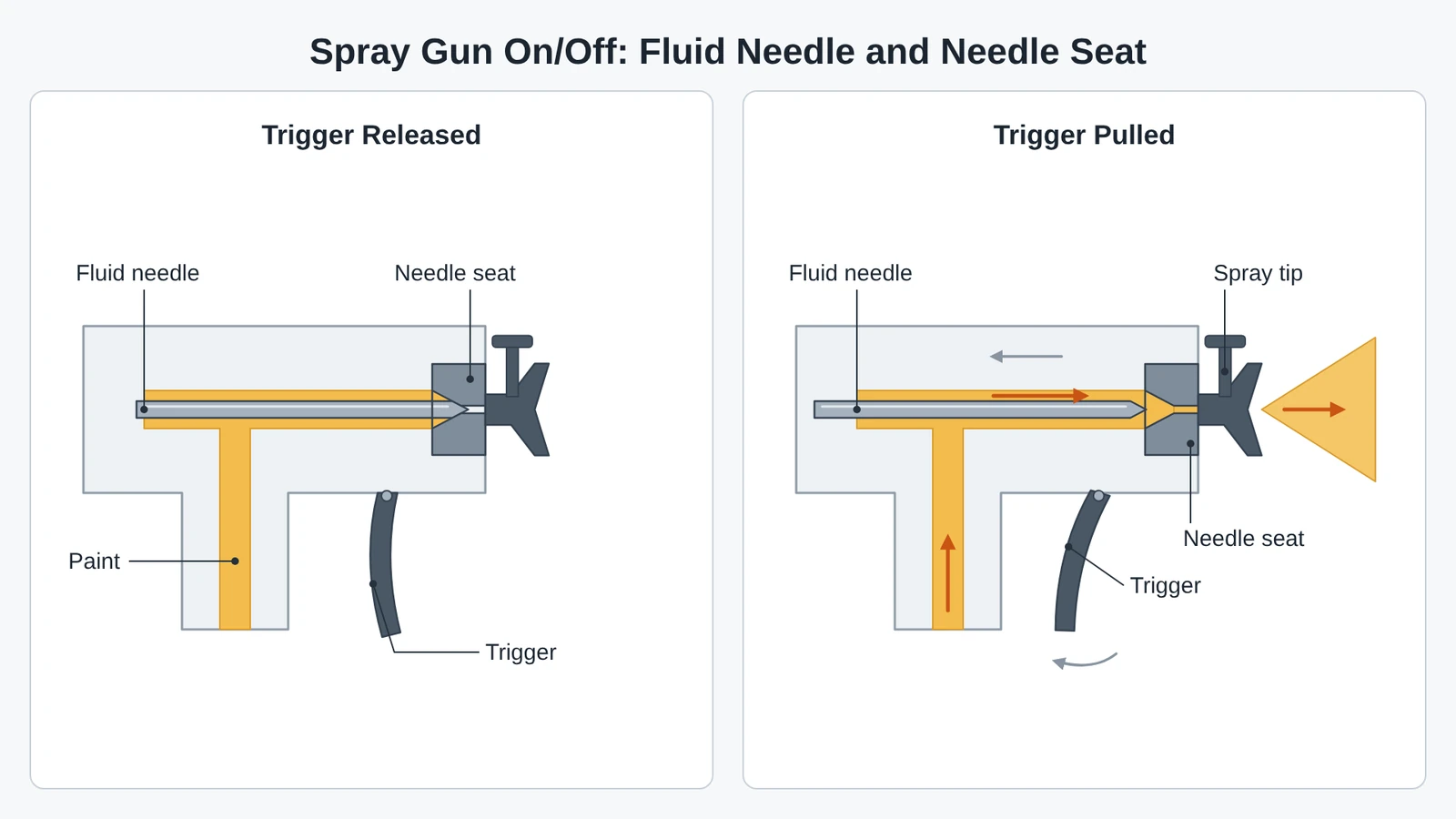

The fluid tip forms an internal seat for the tapered fluid needle, which reduces the flow of material as it closes. Further movement of the trigger opens the fluid needle, allowing fluid material to flow.
Leakage of fluid is caused by improper seating of the fluid needle. The low-friction pressurized hose swivel exclusive dual-seat design reduces sealing friction under pressure, making this the best swivel on the market!
If the fluid tip opening is too large, material discharge control will be lost.

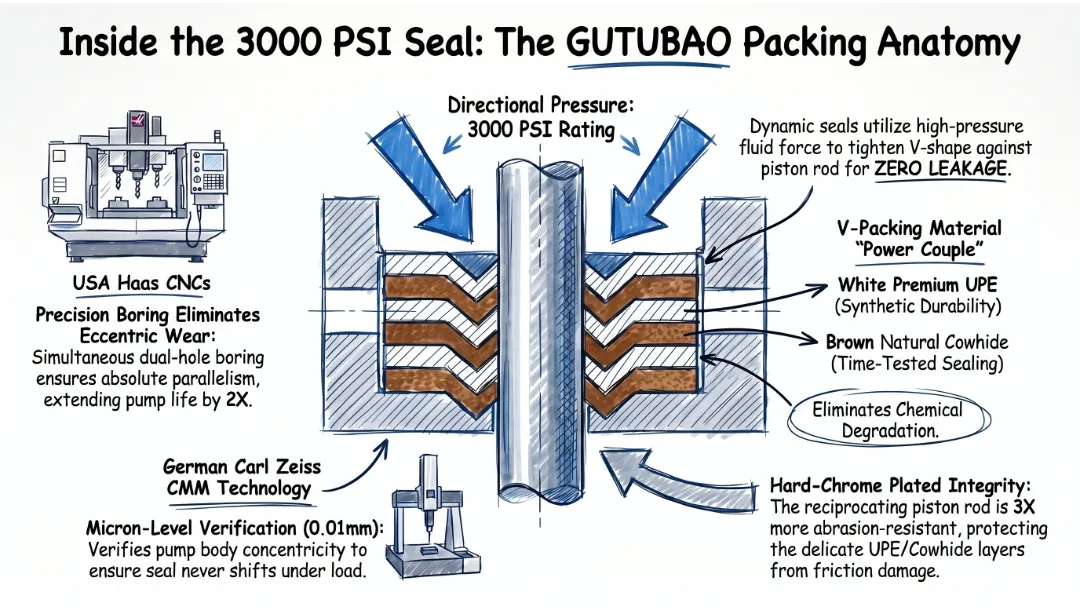

Sealing Under Pressure: The Role of UPE and Cowhide Packings
Dynamic sealing relies on structural integrity. For the lowest Cost of Ownership, our reciprocating piston fluid section lasts 2X longer than competing pumps with a hard-chrome plated reciprocating rod with longer stroke, Chrome-plated stainless steel sleeve, and Premium UPE Packings.
Long Life UPE Packings, hard-chrome plated reciprocating rod and hardened stainless steel cylinder ensure stability. We utilize high-performance synthetic UHMWPE & Cowhide V-Packings for ultimate durability with most materials.
This offers time-tested durability and performance with long-life synthetic and leather packings, heavy-duty piston rod for long life, and a tool-less intake foot valve access that removes easily for fast repairs.
Wetted Material includes Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten. The abrasion-resistant composite piston rod extends pump rod life by 3X.
You get improved sealing and strength with the improved edge loading and seven throat packings instead of five. dismantle and clean the lower to get any packed zinc off of the checks and packings.
The passages are also much larger making them more reliable and easier to service, troubleshoot and replace. This guarantees time-tested durability and performance. Long-life synthetic and leather packings handle highly corrosive applications reliably.
| Component | GUTUBAO Standard Material | Aftermarket Material | Extreme Environment Tolerance (100% pure epoxy/heavy asphalt) |
|---|---|---|---|
| Fluid Needle | Tungsten Steel | Standard Stainless Steel | High resistance to abrasive wear |
| Valve Seat | Hard Alloy | Standard Stainless Steel | Maintains zero leakage under high pressure |
| V-Packings | Premium UPE + Natural Cowhide | Rubber | Eliminates chemical degradation |
Material Compatibility: Avoiding the Chemical Disaster in Aluminum Components
Many traditional chemical solvents are no longer acceptable for use or are recommended with caution, to be used only in strictly controlled circumstances.
There is an absolute ban on 1,1,1-trichloroethane or methylene chloride, as the use of 1, 1,l-trichloroethane will decline since its U.S. manufacture must end by the year 2005.
Nonflammable halogenated solvent strippers cannot be disposed by burning. They form the corrosive irritant hydrogen chloride gas when exposed to flame.
Hot caustic chemicals cannot be used on zinc or aluminum because they react vigorously with these metals. Solvent strippers include highly aggressive oxygenated phenols, ketones, glycols and esters, as well as saturated or aromatic hydrocarbons.
If you’ve flushed your sprayer with water, flush it again with Mineral spirits or corrosion-inhibiting pump storage fluid to leave a protective coating which prevents freezing and corrosion.
Wipe your sprayer hose and gun with a rag soaked in water or mineral spirits. Use a solvent soaked brush to clean the tip but never soak the entire gun in solvent.
Maintenance Red Lines: When to Move Beyond the Rebuild Kit
Proper airless sprayer maintenance is strictly defined. Using a worn tip can cost you hundreds of dollars in wasted paint and labor; when a tip wears the size of the tip orifice increases and the fan width decreases.

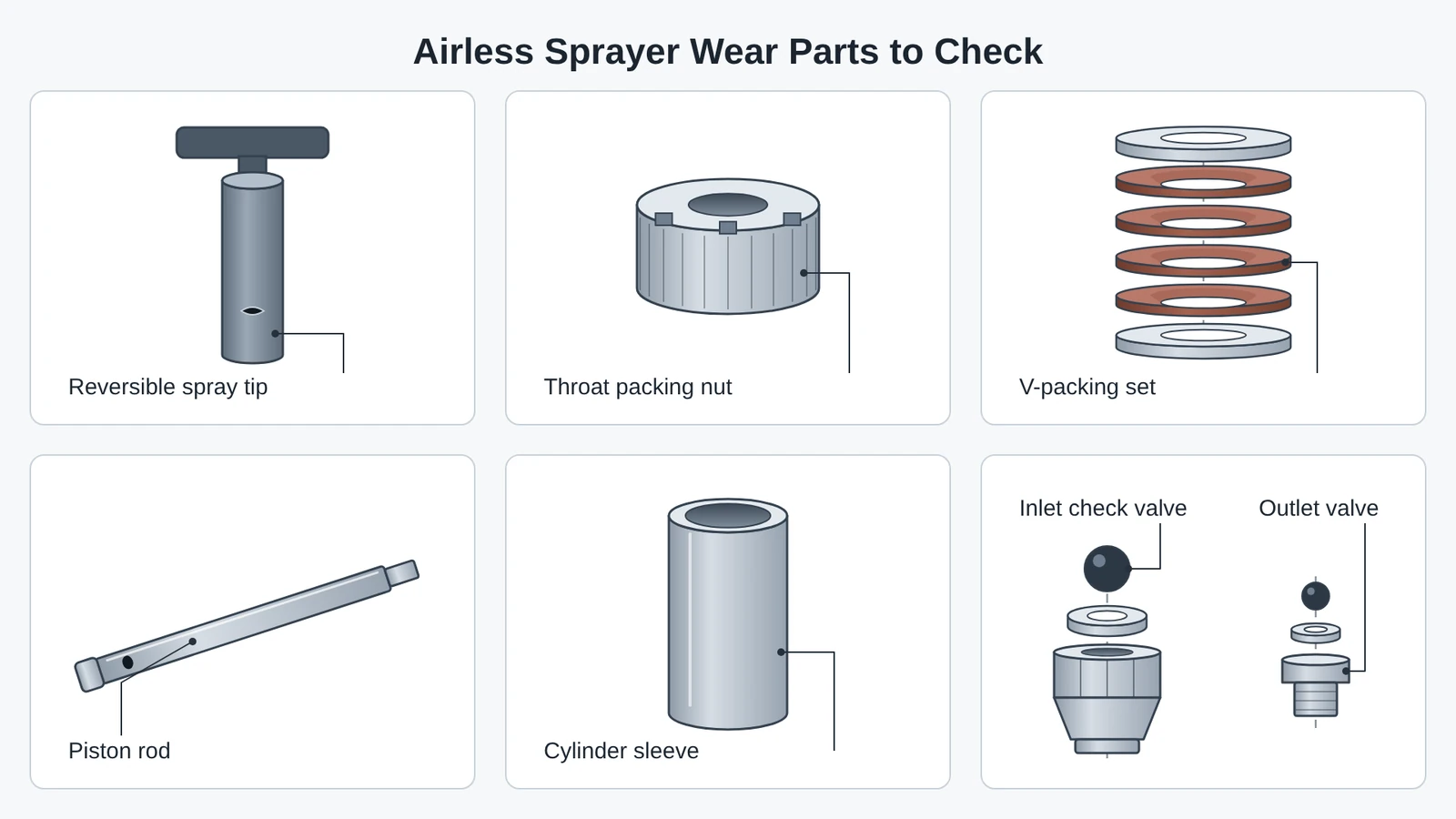

Liters pumped are a great way to monitor when to check/replace packings, seals, pump balls and general rod and sleeve wear. For spray gun pattern troubleshooting, a top-heavy pattern occurs when horn holes are partially plugged.
There is an obstruction on top of the fluid tip. If the horizontal pattern appears normal, the pressure feed system is ready to spray.
Keep the throat seal nut filled with sealing fluid, as piston rod lubricant keeps paint from drying on pump components. Piston rod lubricant is a special fluid that prevents paint from drying out in the pump of your appliance.
You can repack the pump in minutes with the new pre-oiled modular pump packing set. Repack your worn packings in three quick and easy steps.
If the balls are the failure point for particular inorganic zincs, we do offer ceramic balls that will hold up somewhat better. The balls may look much worse, but the smallest wear on the seat will allow some leakage, and quickly start tearing into a new ball.
All components undergo a 30 minutes continuous high-pressure load wet/pressure test before leaving factory.
Source Factory Advantage: Scaling Your Business with OEM Spray Gun Components
GUTUBAO’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time.
Use Genuine GUTUBAO parts to keep your sprayer in peak working order for years to come. To keep your fine finish projects on schedule, always make sure you have a Genuine GUTUBAO replacement pump on hand.
GUTUBAO pumps are easy to replace and often can be swapped out in just a few minutes, with no special tools. Backed by an annual capacity of 100,000 units and strict CE compliance standards (B-S200428989), every piece of equipment we manufacture comes with one of the industry’s strongest warranties.
We design and manufacture products built from the highest-quality parts and components. Increase your productivity with our most popular mid-production systems.
Innovation truly comes through collaboration with our 30+ R&D tech personnel, GUTUBAO expertise, and material supplier partnerships. We strive to deliver custom solutions backed by our global support network.
Backed by our full warranty coverage and our decades of proven commitment to OEM manufacturing excellence for professional contractors.
