Stop Destroying Your Equipment: The Standard Protocol for Using a Paint Gun Cleaning Kit

Spitting and leaking from your spray gun during operation are rarely signs of natural wear. They are catastrophic failures caused by violent and incorrect cleaning methods. By utilizing a proper paint gun cleaning kit, you can prevent these expensive breakdowns. This guide completely dismantles the physical and chemical taboos of the cleaning process from an engineering perspective.

The Hidden Cost of Skipping Proper paint spray gun cleaning kit Maintenance

Most people consider cleaning and maintaining their texture sprayer a non-value added task.
If regularly done in a proper manner, the machine can last years and reduce your overall maintenance and repair costs.
Inadequate lubrication heavily increases the risk of bearing failures, and studies point out that over 50% of bearing failures are the result of improper lubrication.

Skipping a proper paint spray gun cleaning kit routine is not just about a clogged nozzle; it directly leads to failure under 3000 PSI dynamic high pressure.
This damages the UPE and natural leather V-packings inside the high-pressure chamber.
Using a worn tip can cost you hundreds of dollars in wasted paint and labor; when a tip wears the size of the tip orifice increases and the fan width decreases.

This forces:

• More passes to cover the surface
• More labor
• Increased overspray
• A substantial waste of paint.

Pump packing failure is a significant contributor to the disruption of operations and unplanned machine downtime.
Cleaning your GUTUBAO sprayer is an important step to keep it running at maximum performance and efficiency.

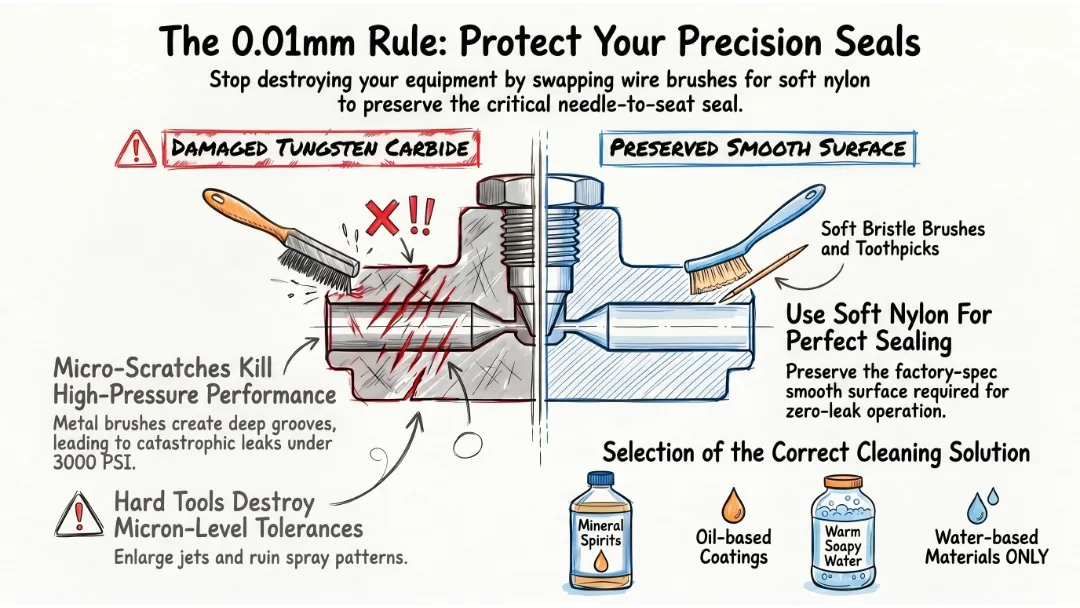

Physical Damage: Why Wire Brushes Destroy ±0.01mm Tolerances

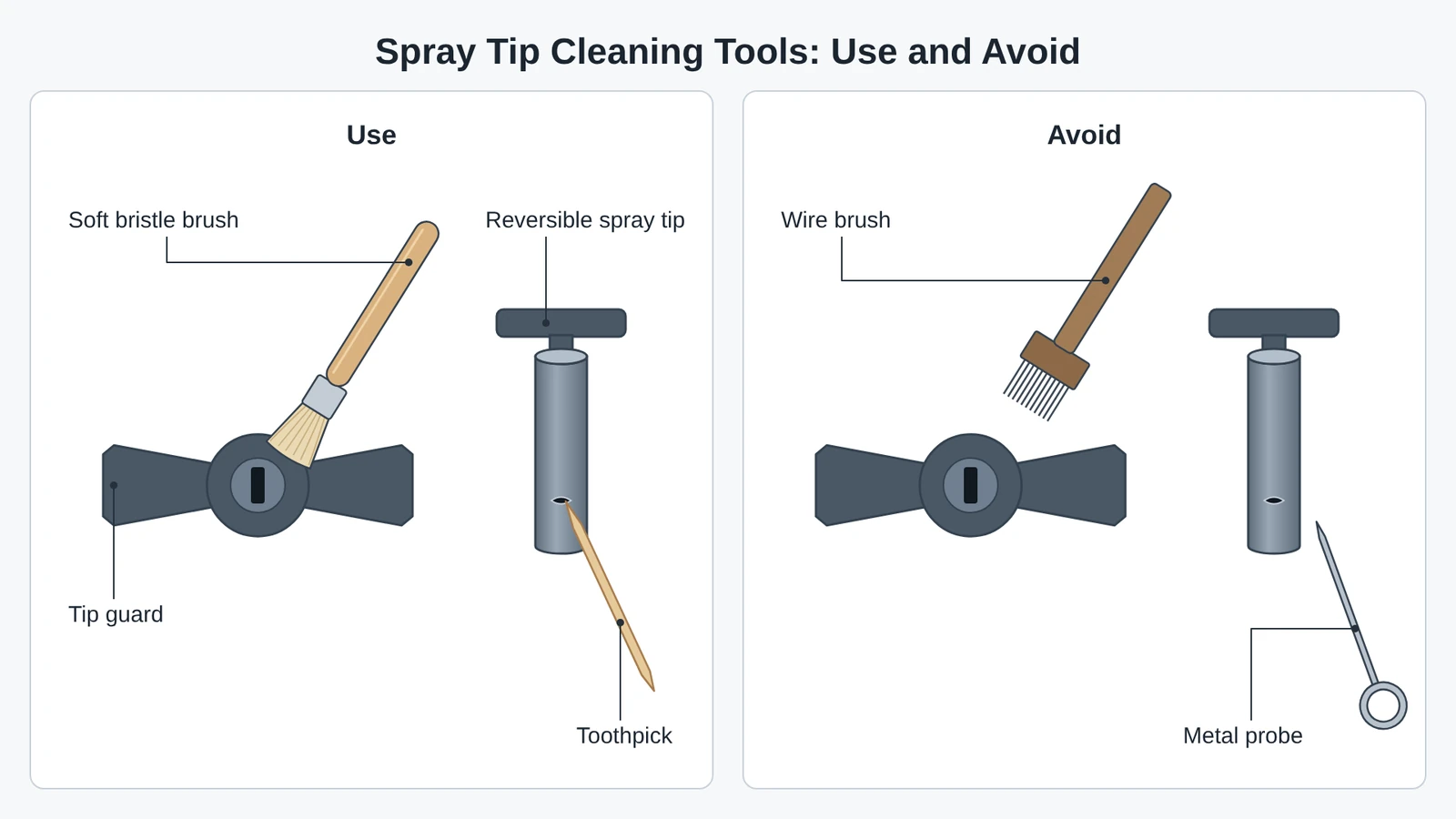

Clean the filters along with the tip and tip guard with flushing fluid and a soft bristle brush and inspect them for any damage.
If reaming the holes is necessary, use a toothpick, a broomstraw or some other soft implement.
Cleaning holes with a wire, a nail or a similar hard object could permanently damage the cap by enlarging the jets, resulting in a defective spray pattern.

Clean Fluid Manifold sealing faces with compatible solvent and a brass or plastic brush whenever removed from gun.
Wire brushes and hard metal probes are strictly prohibited.
Tungsten Carbide has poor shear resistance, so micro-scratches will destroy the extreme pressure sealing tolerance of ±0.01mm between the fluid needle and seat.

Do not use a steel brush since it can damage the sealing surface.
Matter can build up at the inside of the tip, partially plugging the tip and causing a bad spray pattern.
Do not use a metal object, as this could damage the tip.

Use a solvent soaked brush to clean the tip but never soak the entire gun in solvent.
If the entire gun is put into solvent, the dirty solvent will be forced into the gun air passages.

Chemical Warfare: Selecting the Right paint gun cleaning solution

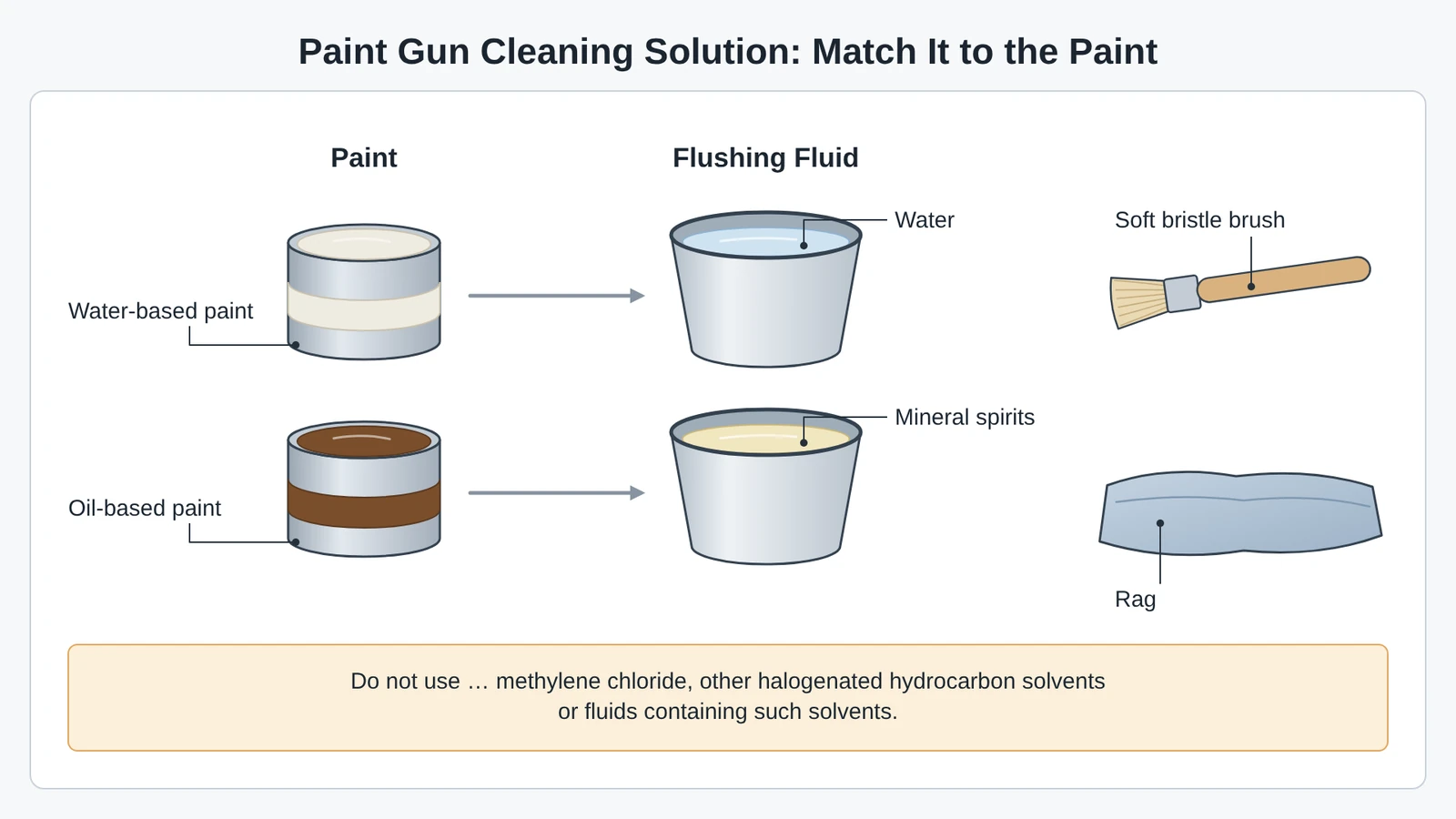

Warm, soapy water is for water-based materials; mineral spirits for oil-based materials, along with a soft bristle brush and a rag.
Water-based coatings are limited to water flush; oil-based coatings use mineral spirits.

It is strictly prohibited to use 1,1,1-trichloroethane, methylene chloride, or other halogenated hydrocarbon solvents in aluminum equipment due to explosion risks.
Do not spray or clean with liquids having a flash point of less than 100ºF (38ºC).

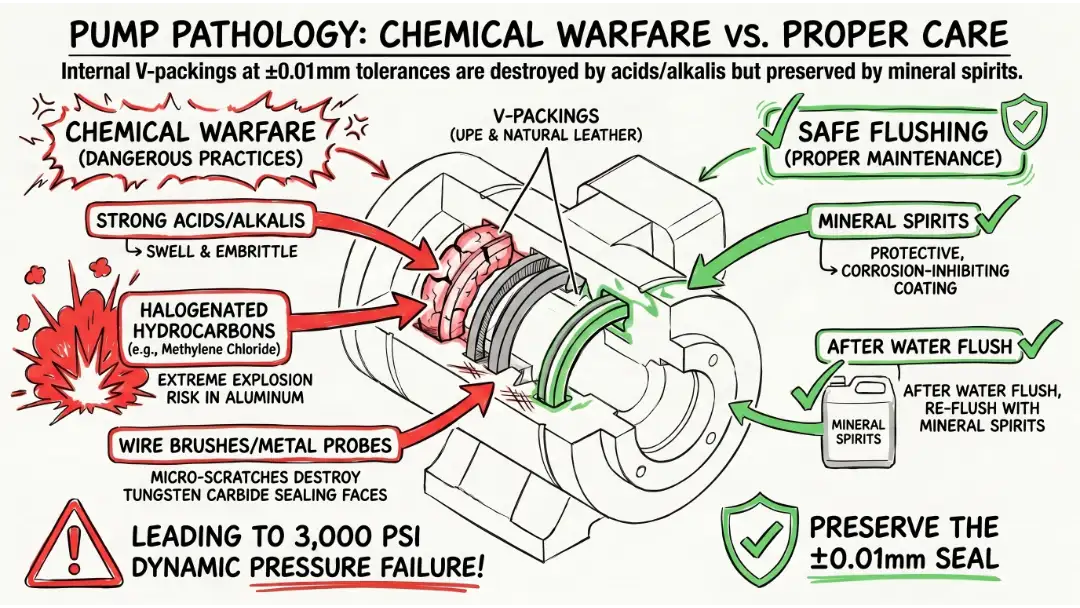

A strict ban on strong acid, alkali, or paint stripper soaking is enforced, as it will cause UPE and natural leather V-packings to swell and embrittle.

Carbon tetrachloride, for example, once a common cleaning agent, has been found to be very carcinogenic and is no longer acceptable for use.
Halogenated hydrocarbons may be toxic and can cause environmental damage.
Any vapors created when chlorinated hydrocarbons come into contact with flames form corrosive gases such as hydrochloric acid vapor.

Step-by-Step Breakdown: Using Your paint gun cleaning kit

Before cleaning your sprayer, always perform the pressure relief procedure:

• Turn the pressure control to the lowest setting.
• Reverse the spray tip and disengage the gun trigger lock.
• Turn prime valve to the prime or drain position.
• Remove the spray tip and tip guard from the gun.

Remove the fluid intake and drain tube from the paint and wipe any excess paint off the outside.

• Place the fluid intake into flushing fluid, and place the drain tube into a waste pail.
• With the gun pointed into the paint bucket, pull the trigger then turn the on/off switch to On.

Increase pressure while continuing to pull the gun trigger.
You must use dedicated soft nylon brushes and brass clearing needles for deep cleaning from your paint gun cleaning kit.
When paint flow ends and you see flushing fluid appear, turn on/off switch to off and release the trigger. Move the gun to the flushing bucket.

Preventing Internal Corrosion: The Mineral Spirits Rule

If you’ve flushed your sprayer with water, flush it again with mineral spirits or corrosion-inhibiting pump storage fluid to leave a protective coating which prevents freezing and corrosion. Wipe your sprayer hose and gun with a rag soaked in water or mineral spirits.

Wiping down the exterior of the hose daily will help keep it flexible and more pliable longer term. Always flush the pump before the fluid dries on the displacement rod, and never leave water or water-based fluid in the pump overnight.

Relieve the pressure, but leave the mineral spirits in the pump to protect the parts from corrosion. It is imperative that the water is removed from the machine; not doing this could potential destroy components as ice forms and expands and cracks components.

Post-Cleaning Assembly: Lubrication and Sealing Best Practices

The fluid needle packing, the air valve packing and the trigger bearing screw require daily lubrication.
An occasional drop or two of spray gun lube on the fluid needle packing will keep it soft.
Before each use, add 3-5 drops of lubricating oil (piston rod lubricant) into the oil port.

Use lithium grease for the lubrication of moving parts, the body and the o-rings in GUTUBAO spray guns.
Regularly and liberally lubricate the o-rings, seals and threads of your gun when rebuilding.
Reassembly requires applying non-silicone industrial lithium grease on metal threads and O-rings to prevent galling.

Be sure to clean the two fluid ports in the top mating surface.
Coat with grease if left exposed, to seal out moisture.
Do not use petroleum- or vegetable-based lubricants, because they will cause cartridge o-rings to swell and stick inside the gun handle.

Preventative Maintenance: Upgrading to Contractor-Grade Kits and OEM Parts

Only use original GUTUBAO spare parts.
The manufacturer’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service.
High quality parts have years of service, but wear parts will need replacement over time.

Make sure to reference a paint spray gun parts diagram when assembling.
To keep your jobs moving and on schedule, always make sure you have a Genuine GUTUBAO replacement pump on hand for your airless paint sprayers.

GUTUBAO has the source factory heritage of 100,000 units annual capacity, providing original replacement parts and professional-grade maintenance consumable kits.
This precision of ±0.01mm ensures absolute zero downtime in industrial operations.
Genuine GUTUBAO hoses are factory-tested and meet the highest safety and industrial coating standards.

Make sure to use genuine GUTUBAO spray gun filters and strainers in your sprayers and guns to maximize spray performance.
This extends the life of your equipment and gets the quality finish you want, every time.
Use Genuine GUTUBAO parts to keep your sprayer in peak working order for years to come.
