[2026 Updated] Pro Tools: Drywall Finish Guide for Industrial Contractors

The High Cost of Manual Troweling in a Level 4 Drywall Finish

There’s no question it takes an artisan to do a proper manual drywall finishing job. But using the right drywall finish tools and equipment can drastically increase the number and quality of jobs you get done. Commercial construction projects utilizing automated drywall finishing are booming worldwide. Contractors on these jobs count on mechanized spray pumps to make their work go smoothly and in less time than traditional hawk and trowel methods.

Gone are the days of manually troweling and worrying about costly labor-cost leakage. Spraying provides a more consistent finish by guaranteeing that you are able to achieve perfect smoothness without human errors. The finished result is a higher quality application meeting Drywall Finishing Standards from a machine that is simple to operate.

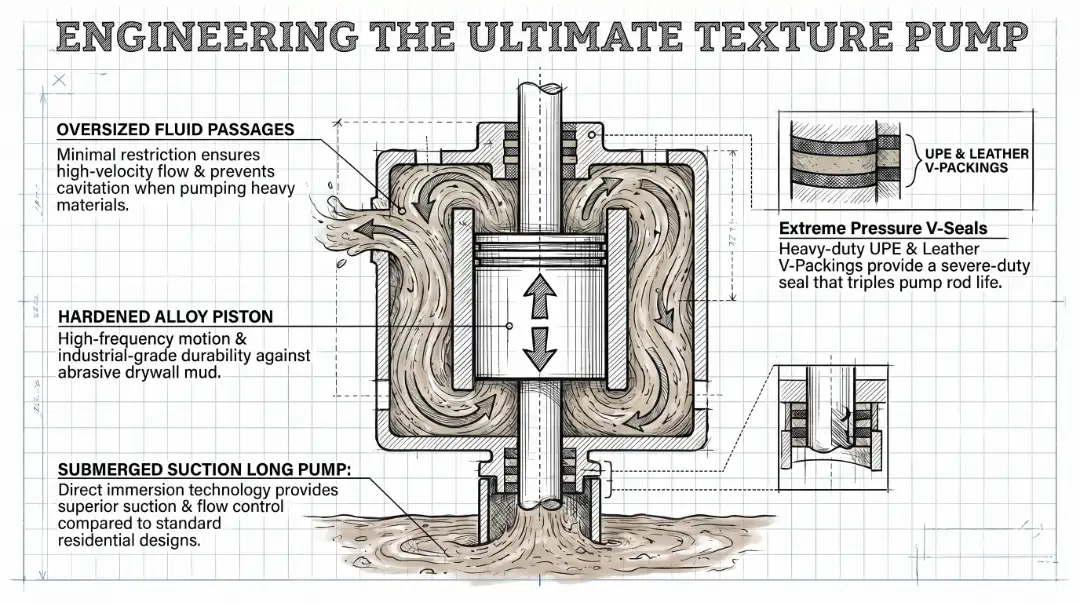

Fluid Dynamics of Drywall Spray Texture

Drywall mud is basically powdered solid particles mixed into a base fluid. Fluid dynamics is a critical factor to consider because standard pumps utilize ball checks that rise and fall as pressure changes occur within the fluid chambers. A no-filter design offers minimal restriction and maximum flow for heavy drywall spray texture.

This structure minimizes pack-out with heavy materials like high-viscosity putty. Oversized passages provide high velocity flow to prevent cavitation issues. The Hard Alloy piston handles the most demanding materials with industrial-grade standards. GUTUBAO Submerged Suction Long Pump designs provide more suction and increased flow control at the source.

Sizing Your Drywall Texture Machine for High-Viscosity Mud

Equipment selection is critical to the successful application of high-viscosity mud—understand what you need to consider when choosing a drywall texture machine. Heavy-duty machines automatically utilize a long stroke delivering the longest service life. A pulseless pressure system has been designed to simplify the installation of heavy-duty applications.

The key to a professional drywall finish is providing enough fluid pressure at the gun to atomize the material into a pattern that provides consistent coverage. Understanding the piston pump vs diaphragm pump breakdown reveals the benefits of true positive displacement technology. Our heavy-duty hydraulic and brushless machines can be configured to meet your specific production requirement.

Surface Preparation and Mud Thinning Rules

Dirt, dust, and other loose contaminants will inhibit bond formation and must be removed first before mud application. Understanding the types of drywall spray texture materials and proper thinning guidelines is essential to prevent downtime. The most common drywall mud can be purchased in pre-mix or powder form.

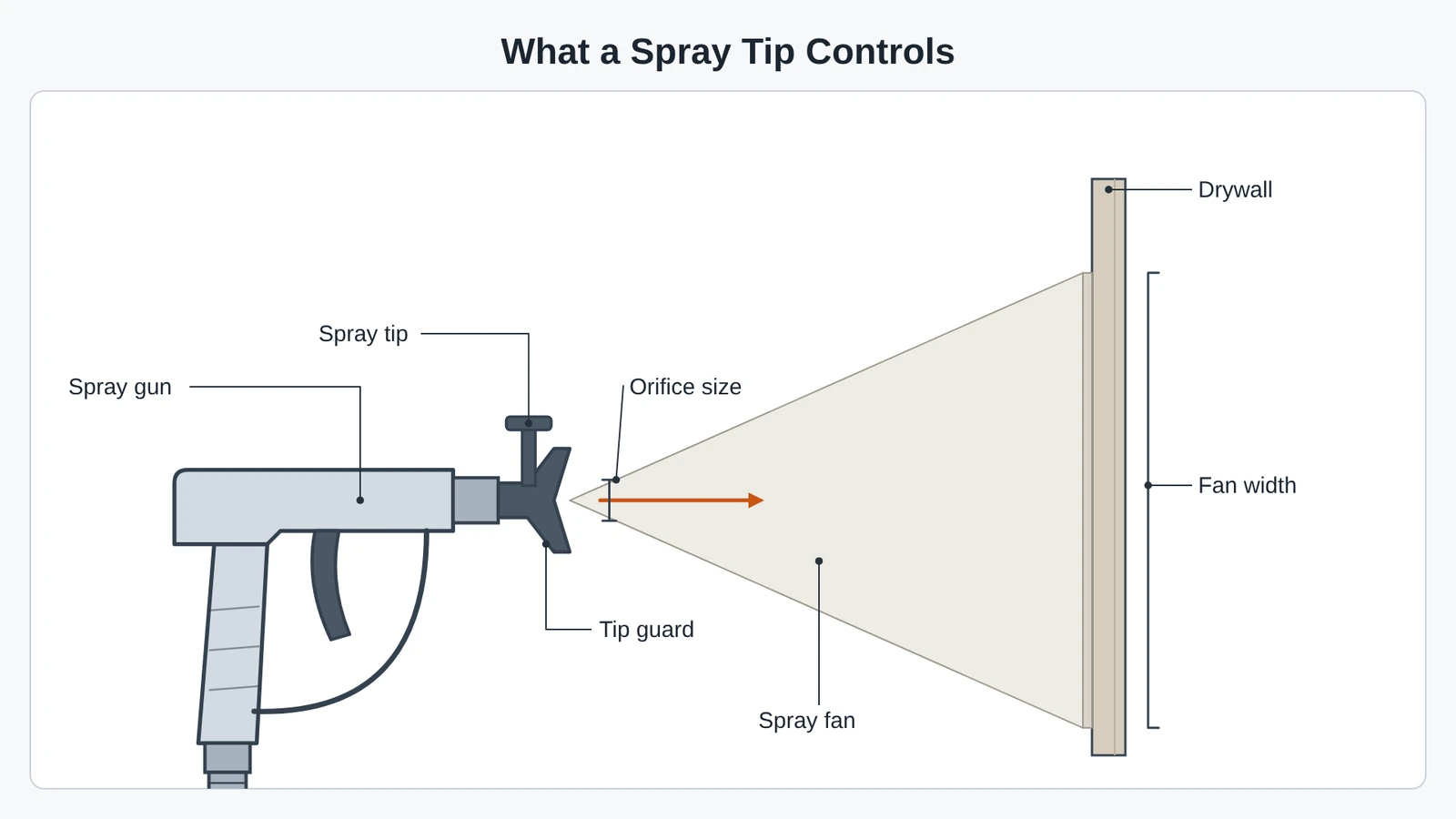

Selecting the Right Spray Tips for Drywall Spray Texture

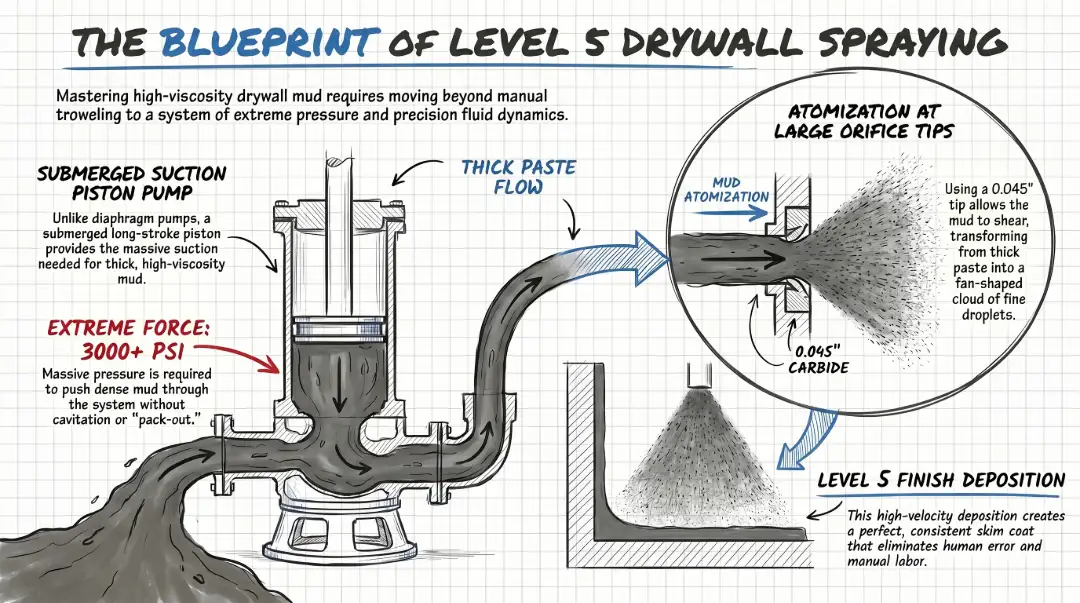

The right spray tip is key to achieving a professional finish with your drywall finish tools while saving time, paint, and labor. Not only does the tip determine how much fluid will leave the gun when you pull the trigger, the spray tip also determines how wide a spray fan the gun will create. To help determine how thick of a coating you’ll be able to spray, it’s important to understand the fan-width and orifice-size of a spray tip.

Is the sprayed material too thick? Use a larger tip orifice (0.035 or 0.045) to prevent clogs and ensure proper atomization. For high-viscosity mud applications, you need the largest industry spray pattern. Read how to choose the right tip in the airless spray tip size chart to accurately match your material.

Mastering the Spray Technique for Level 5 Skim Coats

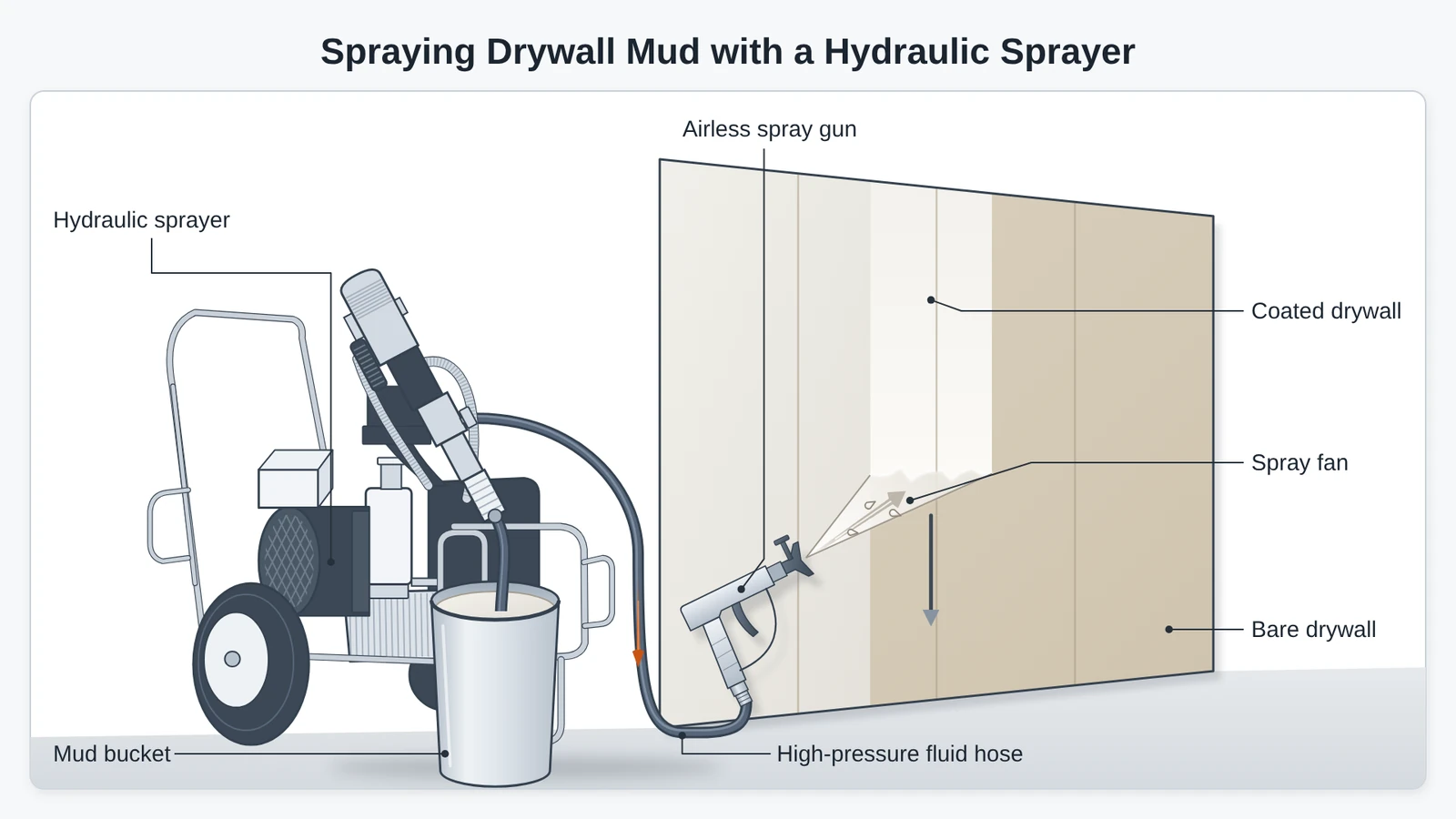

Using a heavy-duty texture sprayer for a Level 5 skim coat is actually quite simple, but demands strict technique. To achieve the proper overlap, aim the spray gun so that the tip points at the edge of the previous spray pass. When spraying on broad, open surfaces such as ceilings and bare walls, keep the gun strictly perpendicular.

Electronic and hydraulic constant pressure systems eliminate pressure fluctuations to give you a consistent film build. This technique protects the finish from unevenness and shadowing. Following proper technique guarantees the best finish quality for any professional contractor.

Advanced Applications: Heavy Commercial Fireproofing & Putty

Professional contractors turn to advanced machines when you need to deliver high-quality results for the most demanding heavy commercial fireproofing jobs. These versatile heavy-duty pumps can easily apply low, medium, and high-density putty and intumescent fireproofing materials to columns, beams, walls, floors, and more. These built-to-last sprayers and components are designed to handle polyurea, urethanes, 100% solids epoxies, and more.

When you are applying thick materials, it is critical that your application equipment is designed properly. Contractors utilizing hydraulic airless paint sprayers are drastically expanding their business capabilities. With these advanced sprayers, you reduce waste and save money because you maximize material delivery.

Upgrade Your Arsenal with GUTUBAO Heavy-Duty Sprayers

Stop wasting time on small retail-grade tools that fail under pressure. GUTUBAO sprayers utilize Heavy-Duty UPE & Leather V-Packings for 3X pump rod life. Professional commercial contractors prefer GUTUBAO heavy-duty sprayers to deliver the highest quality and unmatched performance.

Manufactured with Japanese Brother CNC machining for ±0.01mm tolerances, the equipment must be capable of dependably delivering under various operating conditions. GUTUBAO’s dedication involves 100% wet-testing before shipping, allowing you to protect your investment for years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine GUTUBAO parts to keep your sprayer in peak working order for years to come.
