Airless Paint Sprayer Hose Guide: Safety, Sizing, and Coiling [2026 Updated]

In order to ensure a safe working environment and avoid serious injuries, make sure you completely understand all elements of your exact Airless Paint Sprayer Hose setup. Equipment selection is critical to the successful application of industrial coatings, requiring you to clearly understand what you need to consider when choosing your fluid line.

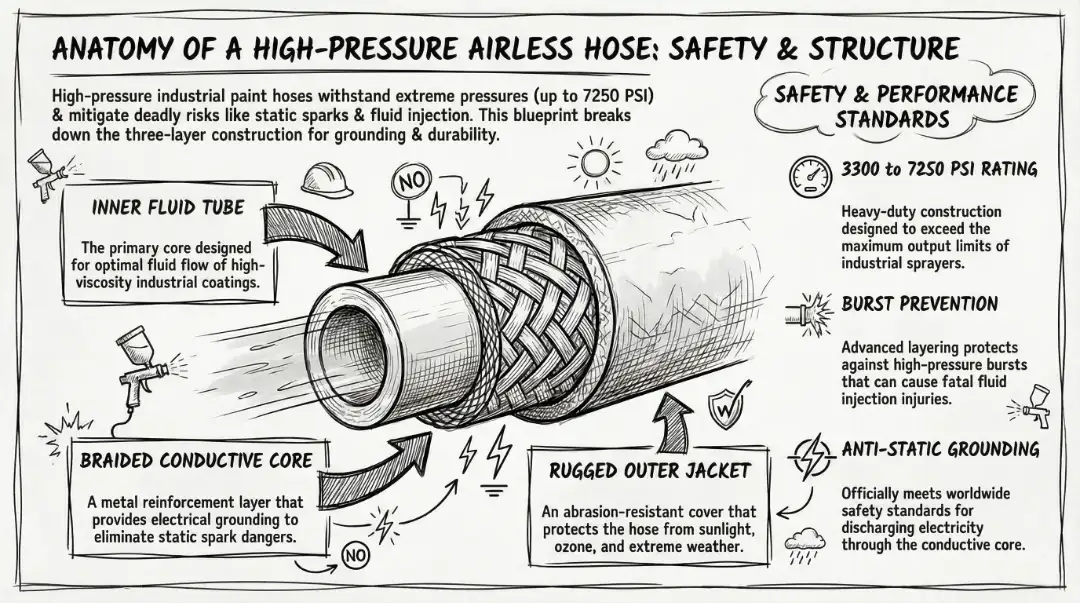

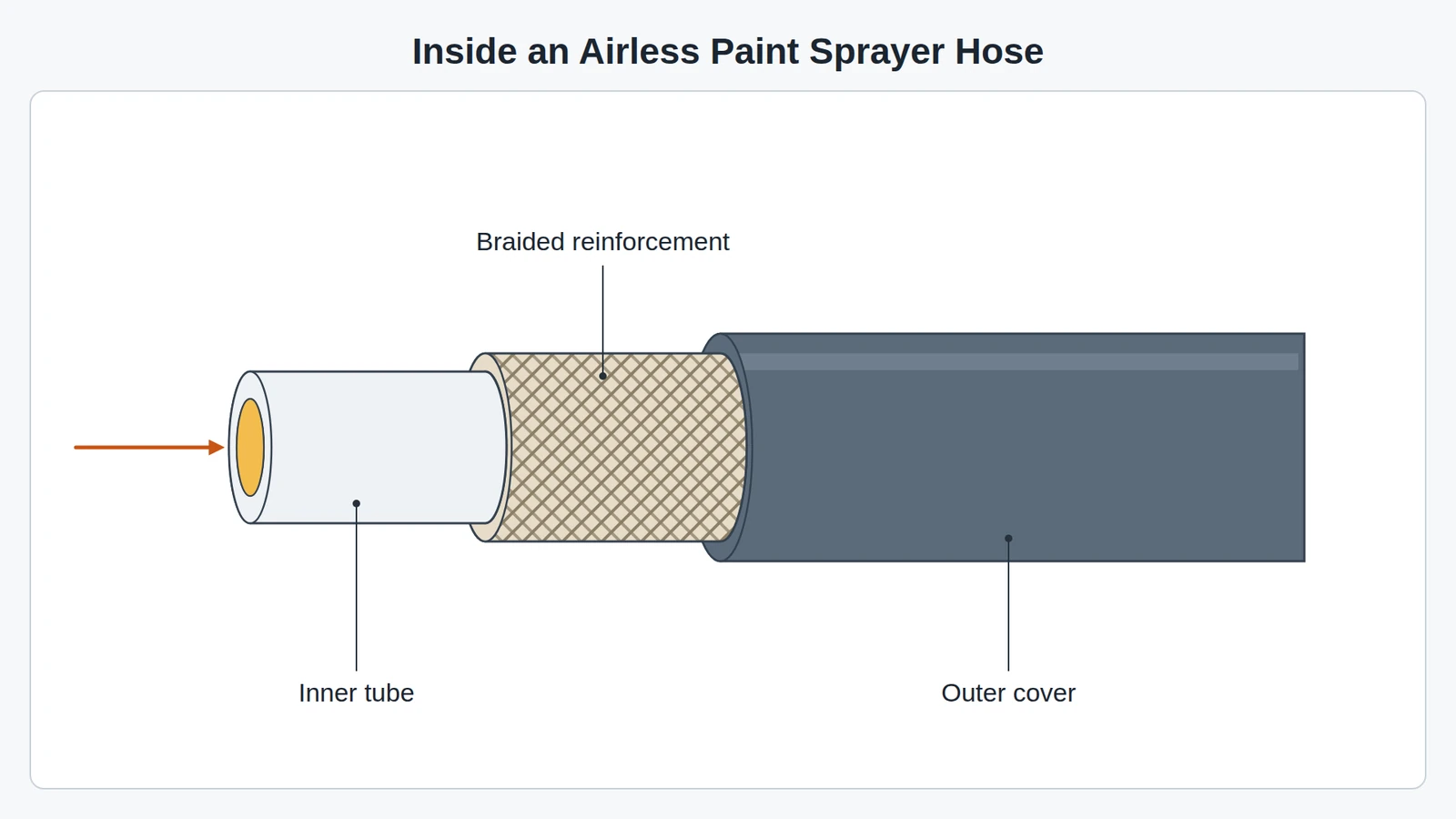

The Anatomy of a High Pressure Paint Hose & Burst Prevention

The heavy-duty industrial hose is designed to withstand the rigors of high-pressure spraying, rated at 3300 PSI (22.8 MPa) — safely above the 3000 PSI working pressure of standard portable sprayers — while heavier hydraulic and industrial units use dedicated higher-rated hoses. A rugged abrasion-resistant cover stands up to sunlight, ozone, oxygen and extreme weather.

Ground all equipment in the work area and use only grounded hoses; the spray gun is grounded through its connection to a properly grounded fluid hose and pump. A pressurized leak can inject fluid into the body and cause serious bodily injury, so do not try to stop a leak with any part of the body, and follow the Pressure Relief Procedure before servicing the hose.

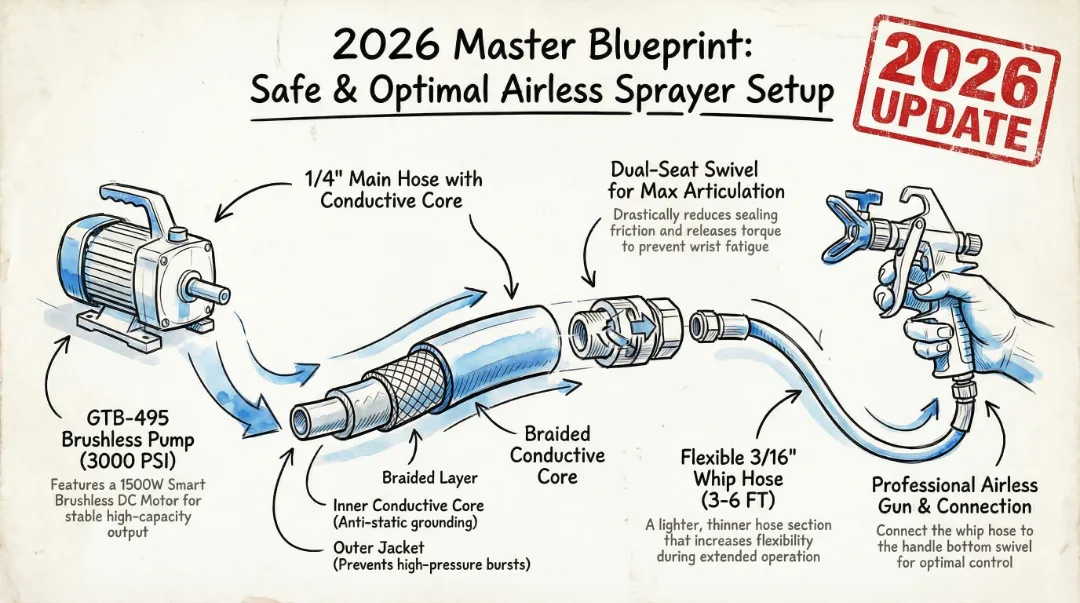

How to Choose the Right Airless Paint Sprayer Hose

A premium hose offers superior flexibility and reduced coil memory, providing ease of use during coiling and uncoiling. Equipment selection is critical; the max working pressure must not be lower than your specific sprayer’s maximum output limit. For guaranteed jobsite safety, the built-in conductive core provides a continuous ground path for static dissipation.

Sizing Masterclass: 1/4 Airless Paint Spray Hose and 50 ft Airless Paint Sprayer Hose

Select the 1/4″ (6.35 mm) ID hose as the mainstream baseline standard for optimal fluid flow balance. At the 50 ft (15.2 m) length threshold, noticeable pressure drop effects begin to increase exponentially. To maintain maximum performance and efficiency, 1/4 inch standard hose is perfectly paired with 0.015-0.021 tips.

A larger 3/8″ (9.5 mm) ID hose handles large volumes and high viscosity materials like epoxy or drywall mud, significantly reducing system backpressure. Use a standard hose fitting, 1/4 in x 3/8 in, to easily manage these transition sizes. It’s important to understand that longer hoses cause pressure drops that negatively impact atomization, resulting in spray tails.

Airless Hose Sizing & Application Matrix

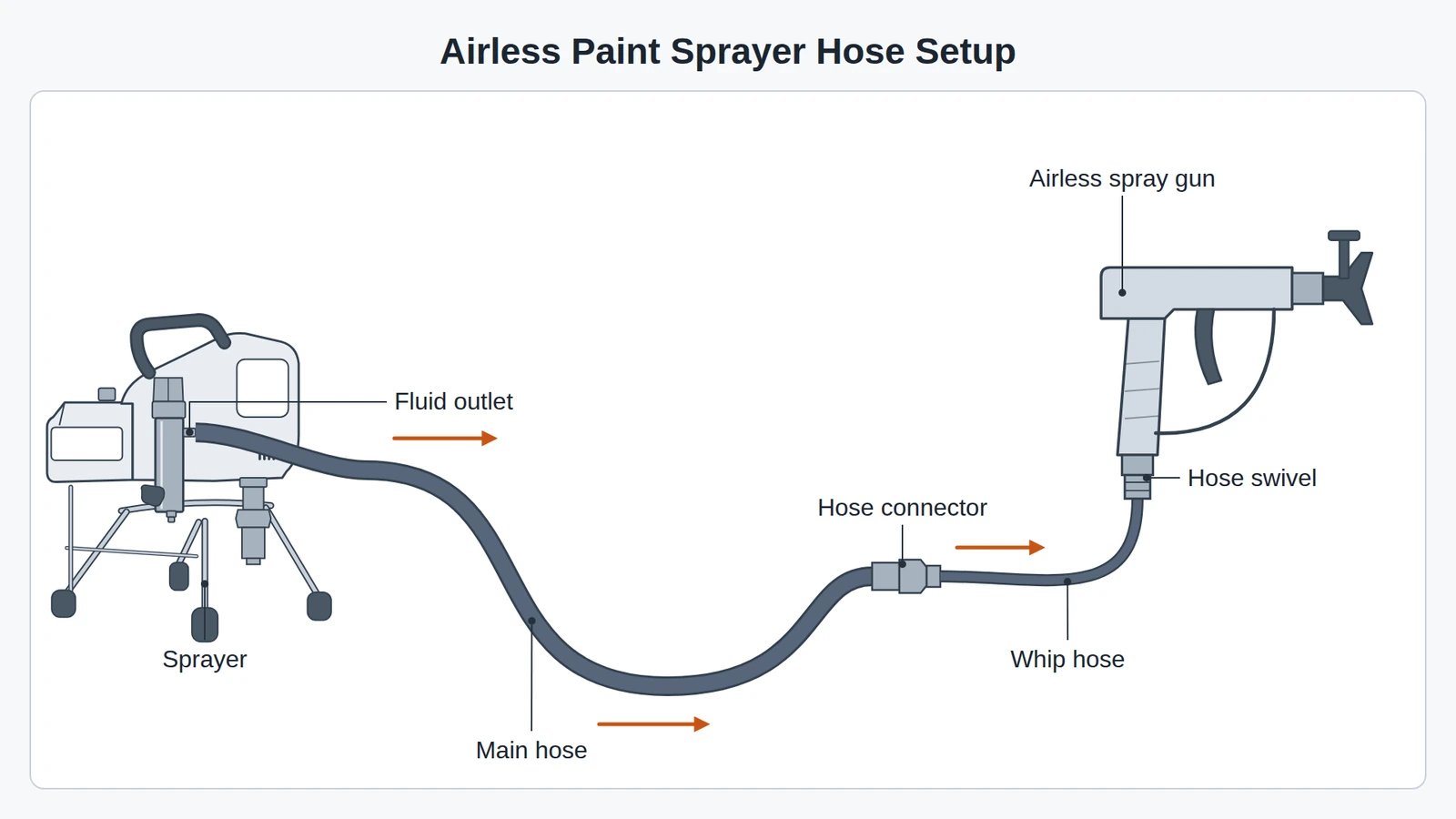

Erasing Wrist Fatigue: Airless Whip Hose & Paint Sprayer Whip Hose Fittings

A dedicated 3/16″ (4.8 mm) or 1/8″ (3.2 mm) whip hose offers over 10% lighter weight, and this increased hose flexibility improves usability while spraying under pressure. Standard whip lengths like 3 ft (0.9 m), 4.5 ft (1.4 m), or 6 ft (1.8 m) greatly increase your daily wrist flexibility.

A dual-seat swivel design reduces sealing friction under pressure, helping release torque as you move. Using a dedicated Airless Paint Sprayer Hose whip drastically minimizes operator fatigue during extended operation.

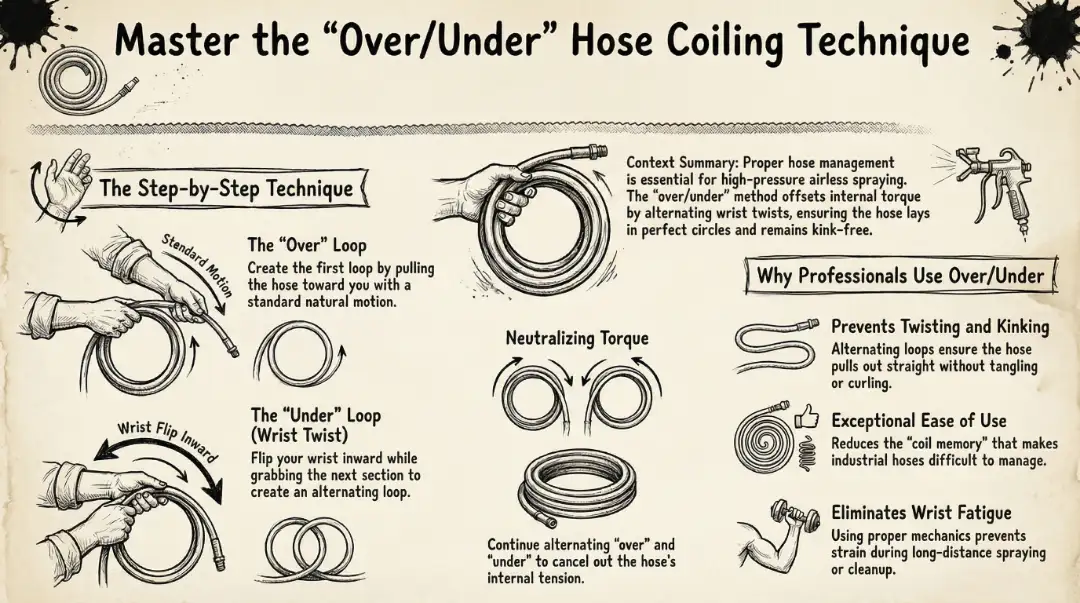

The “Over/Under” Coiling Method & Powering Lines with Factory-Direct Muscle

The over/under coiling method offsets torque by alternating wrist twists, Flush the hose and pump fully before you coil and store a line; our guide on cleaning your airless sprayer lays out the sequence that keeps the line clear. preventing kinking and providing exceptional ease of use during coiling and uncoiling. A powerful GTB-495 sprayer is a safe and effective way to maintain pressure across 100 ft lines. Introducing the GTB-495’s 1500W Smart Brushless DC Motor — specifically designed to deliver a massive 2.2 L/min high capacity flow.

Work Smarter, Finish More Jobs; contractor-grade sprayers include Smart Digital Control features that perfectly compensate for pressure drops, maintaining a strict 3000 PSI output. As a premier source factory, GUTUBAO delivers unmatched value that automatically regulates your fluid process controls for extreme long-distance spraying.
