The Pro’s Guide: How to Clean Airless Sprayer (2026 Updated)

GUTUBAO airless spraying is the fastest and most versatile way to achieve professional painting results without thinning. Proper cleaning keeps your GTB-495 sprayer performing at its best and ensures long-lasting reliability. Following this 10-minute SOP is key to achieving a professional finish while saving time, paint, and labor.

Understanding the Basics: How Does an Airless Paint Sprayer Work?

The precisely machined piston pump does the heavy work of drawing the coating from your source bucket and then pressurizes the coating up to 3000 PSI. Airless spraying achieves this tremendous speed by atomizing, or breaking up fluid into small droplets, without the use of compressed air.

Because the piston is manufactured by Japanese Brother SPEEDIO CNC centers, oversized passages for high velocity flow to rotate the piston for even wear are maintained within a 0.01 mm tolerance. Any dried paint wears these German Carl Zeiss CMMs inspected parts, making fast, on-the-job cleaning mandatory to protect the pump. The fluid emerges from the spray tip as a high-speed solid stream – but when that stream hits the air, it becomes disrupted to form the pattern.

Essential Prep Before You Learn How to Clean Airless Sprayer

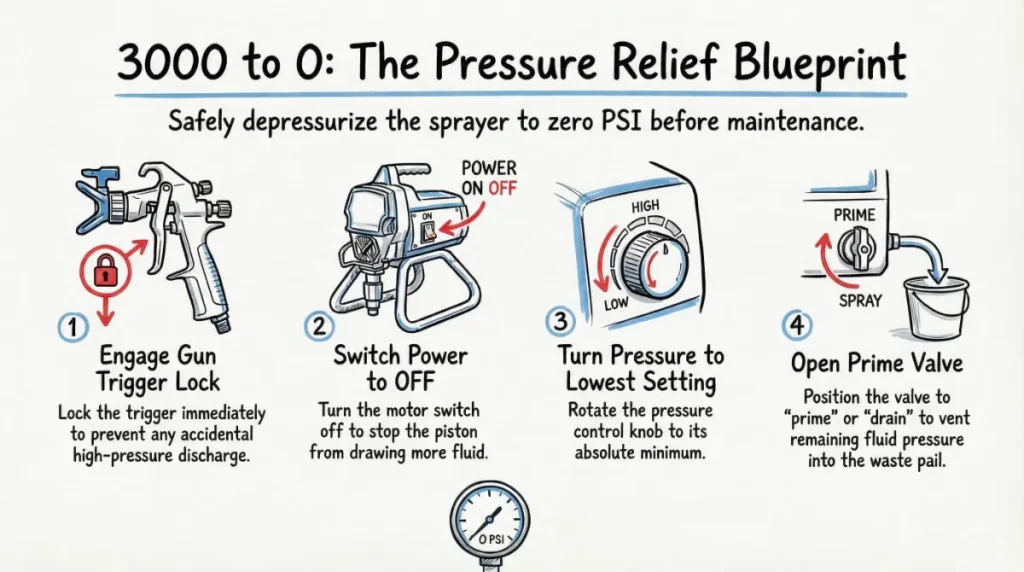

Before cleaning your equipment for the first time, or any time, always perform the standard pressure relief procedure to ensure your sprayer is completely de-pressurized. Whenever operating any 3000 PSI equipment, take proper safety precautions to avoid severe injection injuries. First, engage the gun trigger lock, turn the on/off switch to OFF, and turn the pressure control to the absolute lowest setting.

The GTB-395 and GTB-490 Mechanical/Electronic Pressure Control, alongside the advanced GTB-495 and GTB-595 Smart Digital Control, ensure smooth, controlled material flow and zero deadband logic. This Zero Deadband feature regulates the fluid pressure accurately, dropping 3000 PSI to zero smoothly to extend valve life.

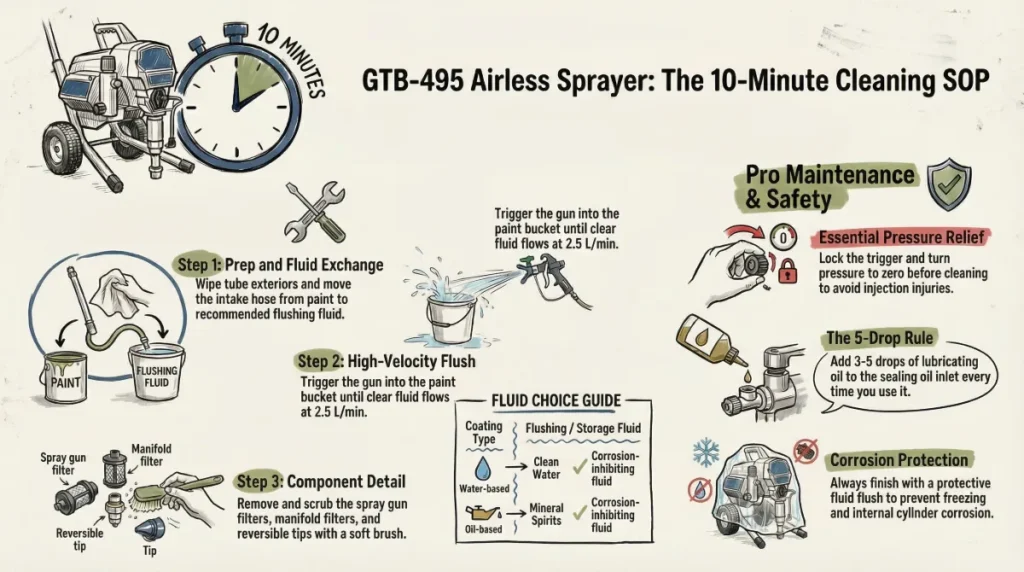

The 10-Minute SOP: How to Clean Airless Paint Sprayer

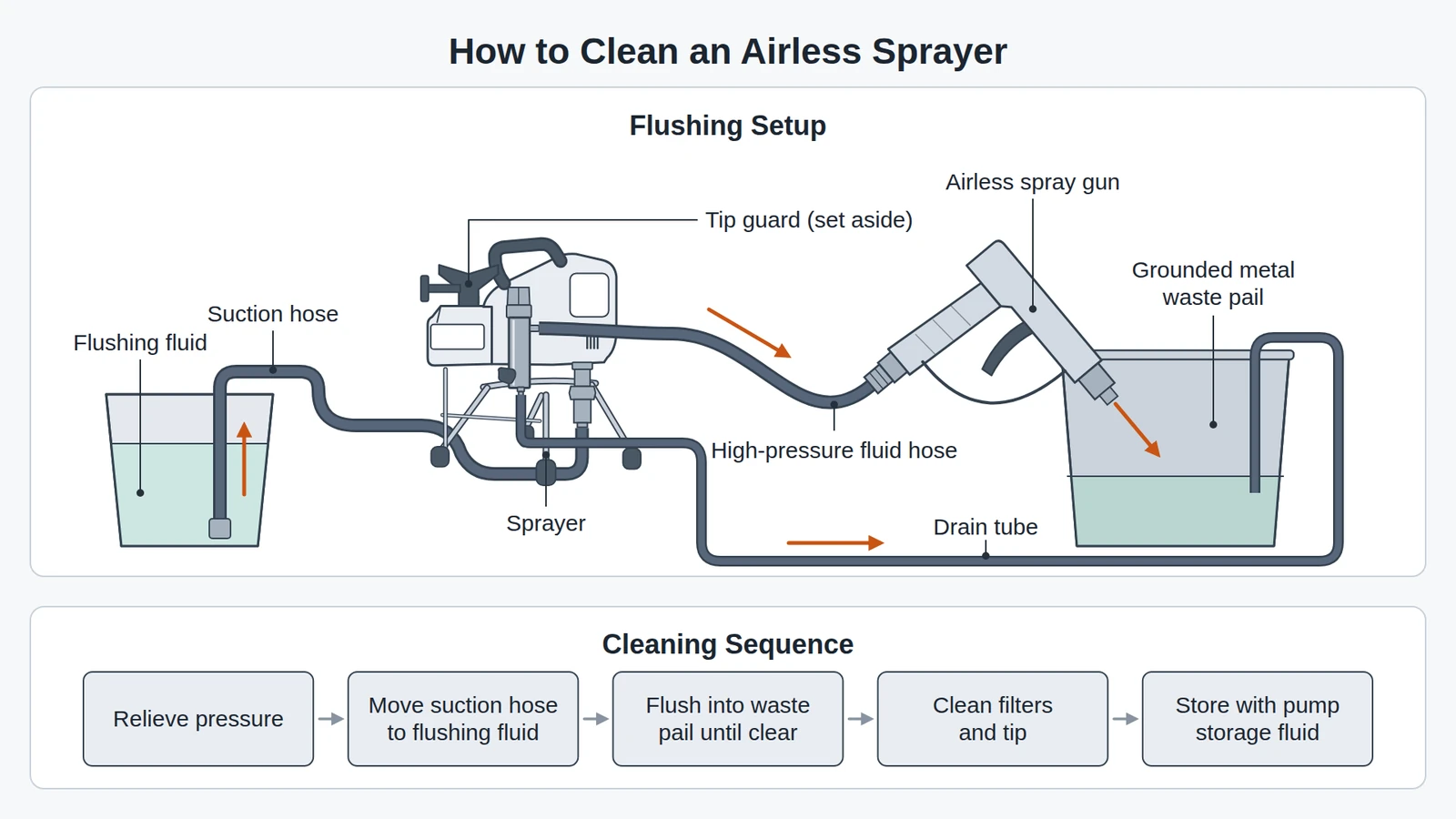

Remove the fluid intake and drain tube from the paint bucket and wipe any excess exterior paint off the outside. Place the fluid intake hose into your recommended flushing fluid and place the drain tube into a waste pail. With the spray gun pointed into the paint bucket, pull the trigger then turn the powerful motor switch to ON. The powerful 1000W to 2200W motors offer minimal restriction and maximum flow, rapidly pushing high-velocity solvent through the system. Let the pump run until you see clear flushing fluid come out of the gun at a massive 2.5 L/min rate. You will get more cleaning done in under 10 minutes with the GTB-595’s increased flow and high-speed solvent circulation rates.

Advanced Maintenance: Cleaning the Spray Gun, Filter, and Tips

Remove the filters from the spray gun and the pump manifold. Clean the filters along with the reversible spray tip and tip guard with flushing fluid and a soft bristle brush and inspect them for any damage.

Before storing, if you’ve flushed your sprayer with water, flush it again with mineral spirits or corrosion-inhibiting pump storage fluid to leave a protective coating which prevents freezing and corrosion inside the cylinder.

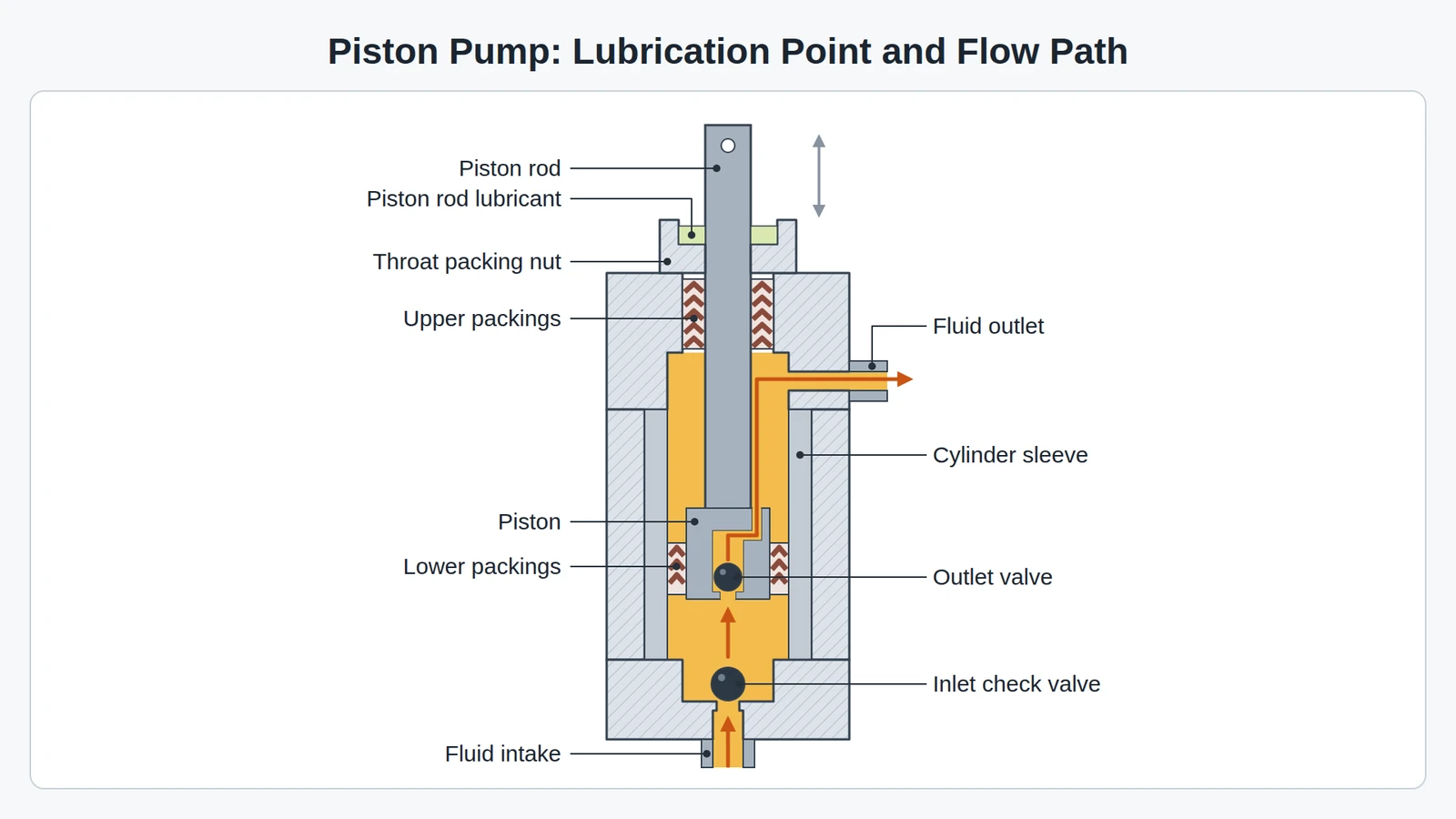

Proper lubrication reduces friction and allows the mechanical plunger pump parts to slide smoothly past each other. The sealing oil inlet is one of the most critical components of the machine, yet one of the most neglected when it comes to maintenance. Good maintenance starts with yourself, so always add 3-5 drops of lubricating oil to the sealing oil inlet of the machine plunger pump every time you use it. The Hardened Stainless Steel or Nano-Ceramic plunger rods provide smooth and reliable operation and extreme wear resistance over a long life.

Eliminate Downtime: Why Upgrading to a Brushless Airless Sprayer Saves You More Wrap-Up Time

For heavy users, upgrading to a GUTUBAO maintenance-free brushless design with a smart motor prevents downtime. Standard DIYers using the GTB-395 with a 1000W DC Brush Motor work longer with less maintenance with the durable piston pump, but carbon brush friction remains a factor. Under continuous 3000 PSI pressure, carbon brushes wear out after 720 hours, whereas brushless models deliver 15X more torque than traditional brushed motors. The brushless upgrade features 90% lower running speeds to completely extend the motor’s operational life. Upgrading your equipment to brushless technology will permanently eliminate costly downtime during critical projects.
