GTB-395 vs 495 Airless Paint Sprayer: The TCO and Engineering Baseline for Professionals
Airless spraying is the fastest and most versatile way to achieve professional painting results and spray the widest variety of materials, un-thinned. When comparing the 395 vs 495 airless paint sprayers, these two GTB models provide the engineering baseline for different project scopes.
The GTB-395 delivers 1000W of power and a flow rate of 1.8 L/min, making it a good match for residential finish work. With higher flow than the standard sprayer, the GTB-495 gives you the ability to support high-volume daily crews and exterior applications.
The GTB-495 can provide 1500W of power and deliver 2.2 L/min, featuring zero carbon brush upkeep. A combination of both pressure and flow of the pump determine the application rate, allowing these systems to optimize pressures for less viscous materials and pumping more viscous materials.
Mobility & Output Capacity: Maximizing On-Site Productivity
The GTB-395 weighs 18.0 kg and supports a max 0.019″ spray tip to perfectly handle indoor latex.
With +500W output and a weight of 19 kg, the GTB-495 gives you the ability to use larger tips up to a max 0.021″ spray tip. Higher pressure and flow allow pumping more viscous materials, meaning the GTB-495 pushes unthinned 100% acrylic exterior coatings without the need for intermediate thinning.
The GTB-495 can provide higher output capacity while the GTB-395 delivers precise flow for interior needs. It is the combination of tip orifice size and pump flow that determines how thick of a coating you will spray. The flexibility of these sprayers acts as an advantage on the job site, maintaining the integrity of the spray pattern for shear-sensitive products and heavy coatings alike.
Pressure Control & Diagnostics: Eliminating Guesswork
The GTB-395 uses Electronic Pressure Control combined with mechanical adjustment to accurately regulate fluid pressure.
The GTB-495 features Smart microcomputer control and Zero Deadband logic to drive the pump lower more intelligently and therefore maintain a consistent spray pattern without pressure drops. Smart logic algorithms prevent errors in flow rate values and shut the system down in the case of any variation.
The GTB-495 user interface monitors and tracks real-time hours via a digital screen, keeping operators informed of system status. Equipped with an advanced Smart Digital Control, the GTB-495 provides highly precise Constant Pressure Control and real-time monitoring. This logic perfectly sustains the continuous, all-day output of the 1500W brushless motor.
Fluid Pump Durability: CNC Machined Precision
Both fluid sections are machined by Japan Brother SPEEDIO CNC centers to a strict 0.01 mm tolerance, which is rigorously verified by German Carl Zeiss CMMs. The resulting wear rate from pumping abrasives depends on the hardness, size, and concentration of the particles, and the operating speed of the pump.
- Standard Protection: To combat this wear, the GTB-395 equips a hardened stainless steel plunger and UPE V-Packings. Stainless steel is a good match for these applications because it offers wide chemical compatibility and good abrasion resistance.
- OEM-Level Upgrade: For contractors handling highly abrasive materials, as a source manufacturer, the GTB-495 comes standard with a Nano-Ceramic plunger for extreme abrasion resistance, while the GTB-395 offers it as an optional upgrade. This OEM-level upgrade completely bypasses standard stainless steel wear limitations. These highly engineered fluid sections act as a barrier to the working parts of the pump, reducing wear and extending the pump life.

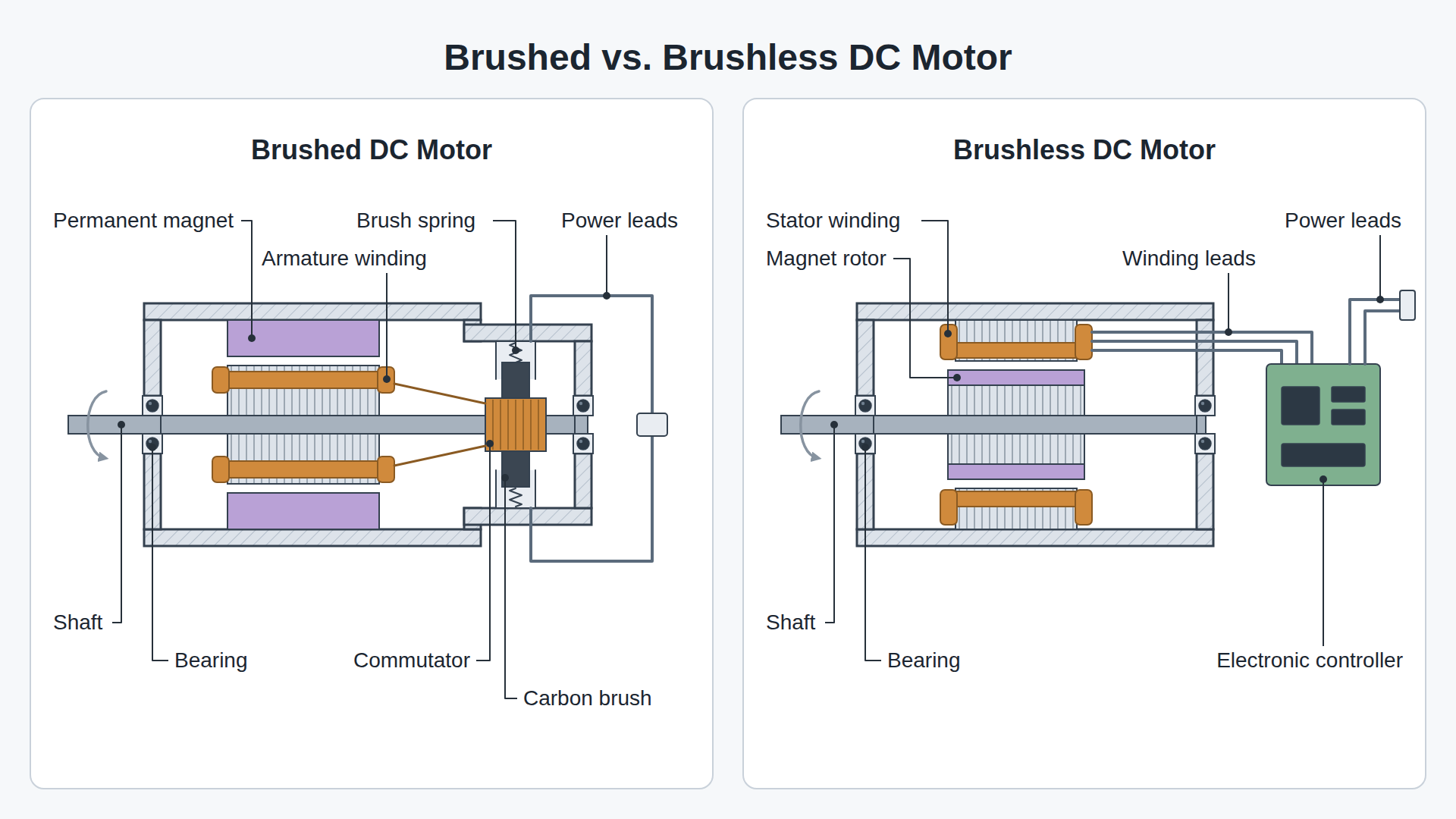

Motor Technology & TCO: Brushed Reliability vs. Brushless Zero-Maintenance
The GTB-395 uses a brushed motor where carbon brushes wear out at 720 hours under 3000 PSI. To manage this maintenance interval, an external access cover allows a 2-minute field swap with a flathead screwdriver.
The GTB-495 is driven by a 1500W Smart Brushless DC motor. The GTB-495 brushless motors deliver a higher torque with the longest life and no sparks. Because there is zero physical brush friction, there is no heat generated, which completely eliminates this maintenance step.
Brushless electric motors are more efficient and offer higher performance than their traditional brushed electric equivalents. The GTB-495 motor technology completely eliminates carbon brush wear compared to previous brushed motors, ensuring zero-maintenance operation and long-term reliability.

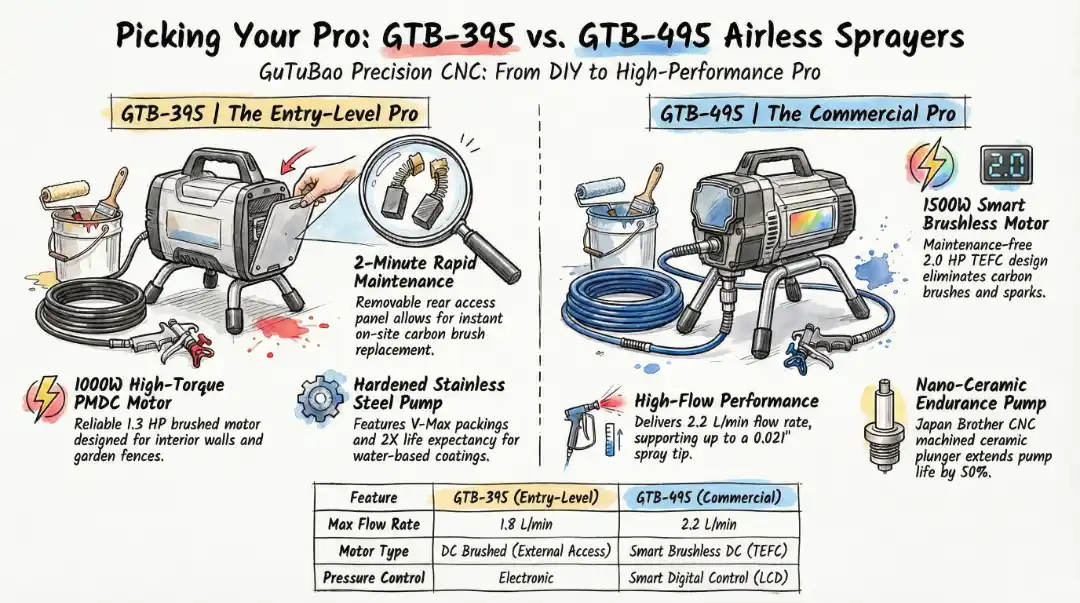

Side-by-Side Comparison: GTB-395 vs 495 Airless Paint Sprayer
|
Engineering Spec |
GTB-395 (Entry-Level Pro) |
GTB-495 (Commercial Pro) |
|---|---|---|
|
Motor Power |
1000W Brushed |
1500W Smart Brushless DC |
|
Max Flow Rate |
1.8 L/min |
2.2 L/min |
|
Max Tip Size |
0.019″ |
0.021″ |
|
Net Weight |
18.0 kg |
19 kg |
|
Pressure Control |
Mechanical / Electronic |
Smart Digital Control |
|
Plunger Rod |
Hardened Stainless Steel (Optional: Nano-Ceramic) |
Nano-Ceramic(Optional: Hardened Stainless Steel ) |
Ultimately, the decision in the 395 vs 495 airless paint sprayer debate comes down to your project scale. For entry-level contractors or lower-volume residential jobs, the GTB-395 stands as a highly cost-effective and reliable workhorse. However, if your daily commercial output demands zero downtime, upgrading to the GTB-495’s smart brushless technology is the ultimate long-term investment. For a deeper dive into the true cost of ownership, read our complete guide on how to choose between brushless and brushed airless sprayers.
